EOS

EOS Trimless Downlight

Designed to meet a variety of architectural requirements, EOS is a high-performance lighting system that offers beam versatility from narrow to wide. It produces vibrant, accurate color rendering with fine FWTM control and a high CRI of 90+. EOS is perfect for modern environments that need both utility and elegance. It is designed for visual comfort with UGR<9 and can be available with 1SDCM for improved color consistency.

UGR
<9

APERTURE SIZE
40 mm

EFFICACY
94 lm/W

CRI
90+

BEAM ANGLES
34º / 53º/ 68º

High Efficiency

Utilizing advanced LED technology, Perdu lights deliver superior brightness while significantly reducing power usage. This also helps contribute to a greener environment by minimizing carbon footprint.

High Uniformity

Precision-engineered optics and high-quality LEDs work together to eliminate dark spots and glare, creating an ideal environment where clarity and consistency are paramount.

Architecturally integrated

The minimalist design allows Perdu to become an unobtrusive part of the ceiling, maintaining the clean lines between elegance in simplicity and sophistication of the space.

Miniature Aperture

The miniature aperture size ensures that the light source remains discreet while delivering powerful illumination exactly where it’s needed, which allows for precise and focused lighting effects.

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

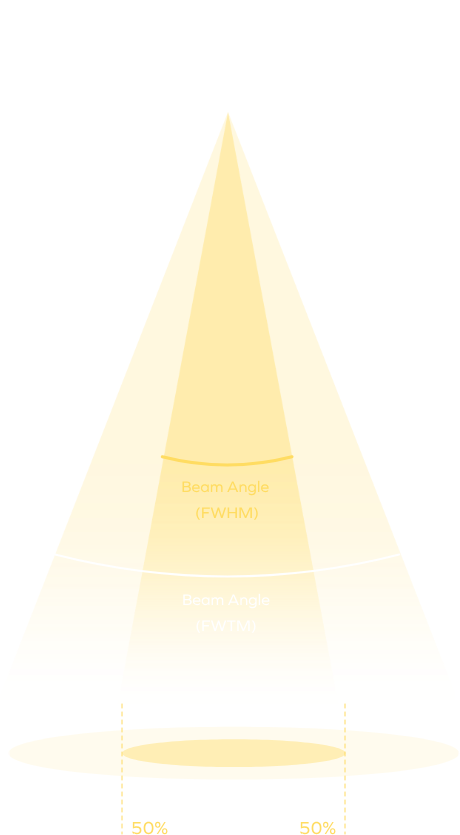

Traditional Fixtures

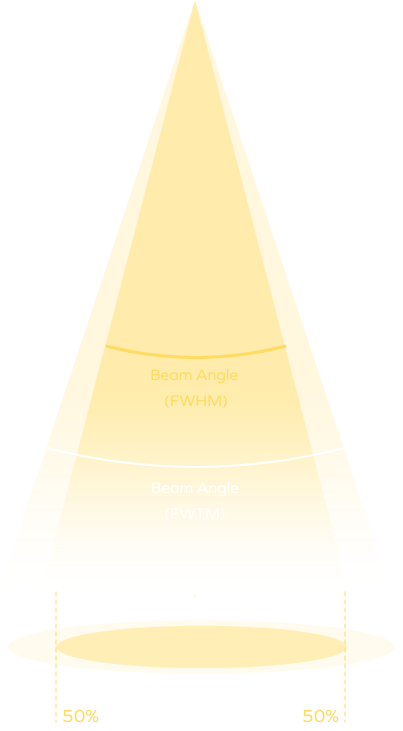

Plus Light Tech’s Fixtures

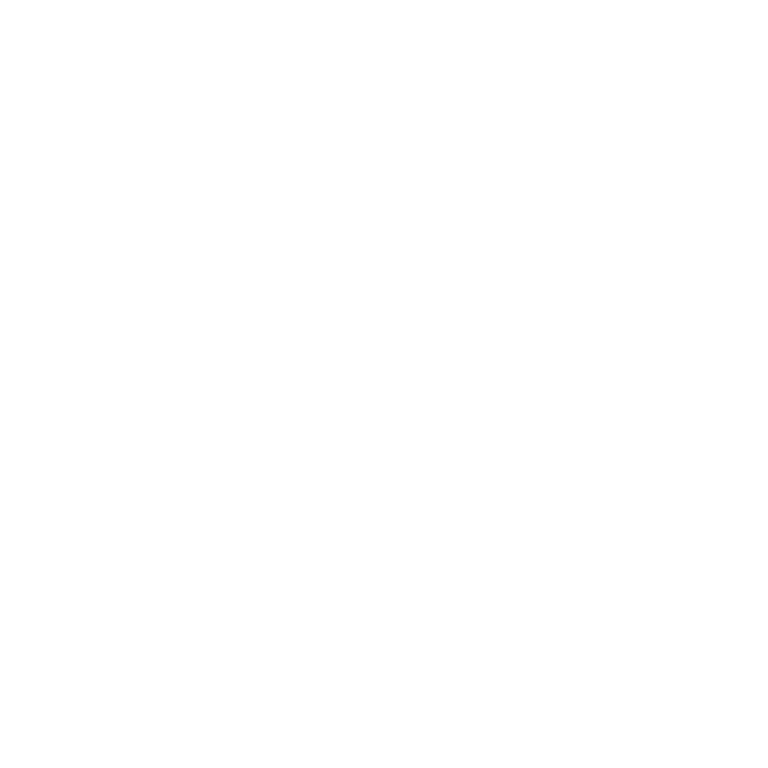

Cutout = Ø 70 mm
All dimensions are in mm.

Choose your Perfect Finish

Explore the full range of finishes available for the product

AceTech 2023

Location: Bombay Exhibition Centre, Goregaon

In-Store Asia

Location: Jio convention Centre, BKC

Mastering precision with Bartenbach

Location: Bartenbach GmbH, Austria

PL06822

/ Downloads

Technical Data

Photometric data: IES
