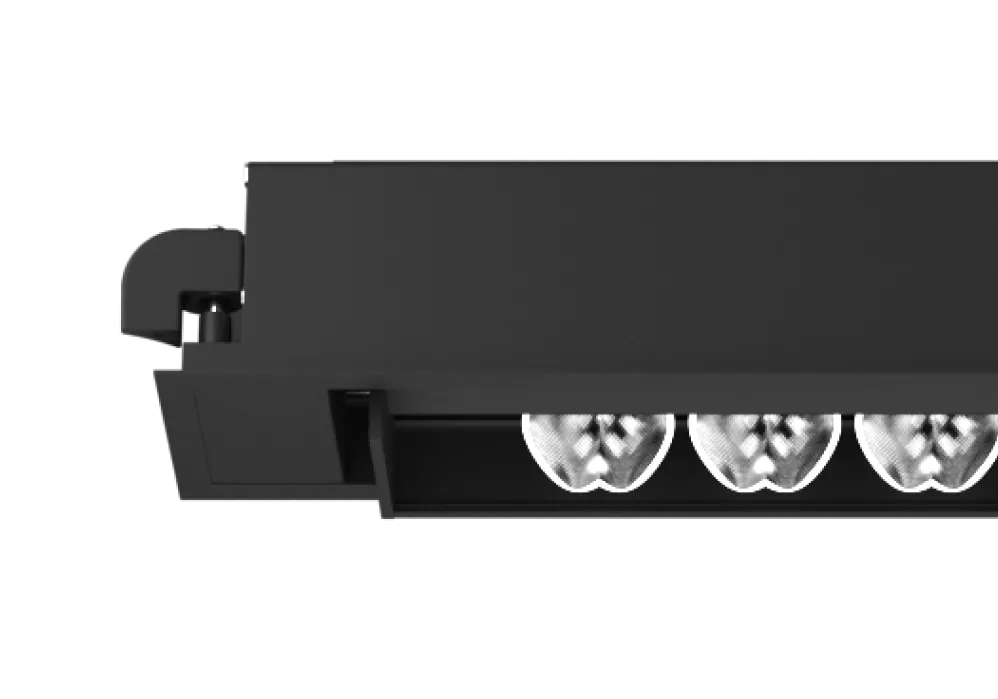

The Elite DL ceiling-mounted wallwasher fixtures from Plus Light Tech offer modular, linkable sections designed to provide consistent, uniform illumination across the intended area.
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
Design
Optics
Designed for optimal longitudinal glare control with excellent uniformity and high efficiency. It ensures homogeneous color mixing within a single reflector cell and supports multiple light distributions and reflector arrangements. It is mechanically compatible with reflector RDB and provides high visual comfort with no direct glare, minimal reflex glare, low light pressure, and no multi-shadows. Suitable for various applications including downlights (linear, circular, and single points), recessed and pendant luminaires, and office lighting (both asymmetrical and symmetrical). Dimensions are 52.6 mm x 36.6 mm x 13 mm (L/W/H), with a system efficiency of 85% and a beam angle of 2x35° TW at C0/C180°.
Design
Build
The fixture housing is made from anodized aluminum with an extruded profile, using Grade 6063-T5 material. This design allows for modular configurations of different lengths. It can be mounted either on the surface or suspended from various ceiling types, including gypsum, wood, and concrete.
Design
Power Source
High-power SMD LED modules with exceptional color consistency (3 SDCM) and a lifespan exceeding 50,000 hours (L80/B10) are available. CRI options include >80 and >90. CCT ranges include 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, and tunable white (2200K-5700K).
Location: Bartenbach GmbH, Austria
