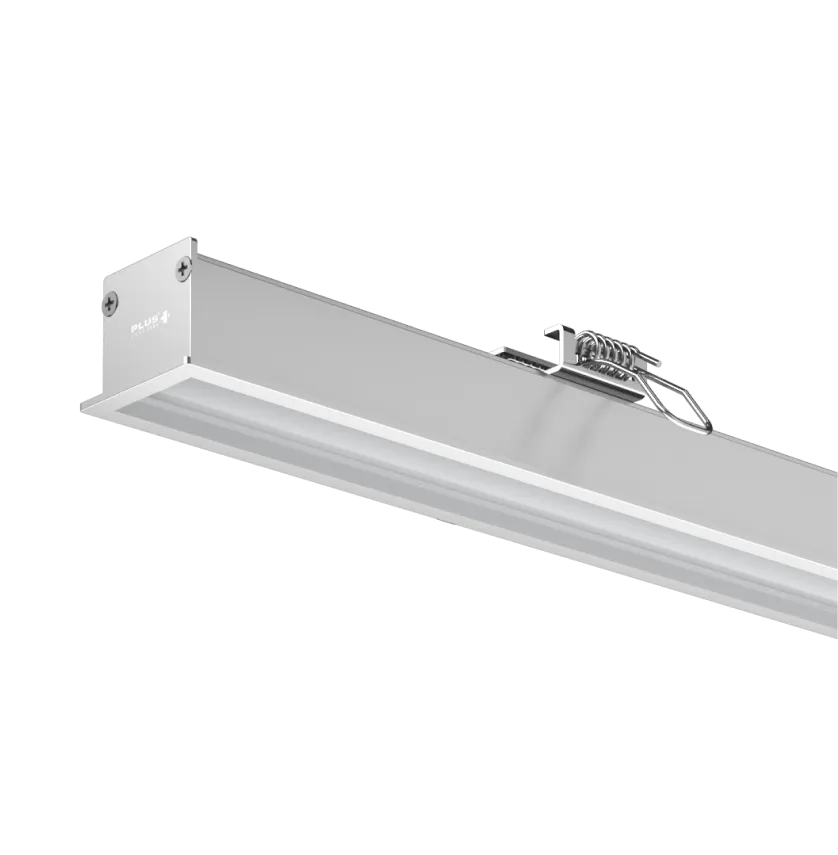

Extruded aluminum profile with adjustable optics for 15° and 30° beam angles using the same lens. The 30° lens is ideal for heights up to 3 meters, while the 15° lens suits heights up to 4.5 meters. Available in lengths of 500, 1500, and 2000 mm, it creates stunning effects on walls ad curtains and enhances interiors.
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.Â
View PLUS TECHNOLOGY
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
View PLUS TECHNOLOGY
Design
Optics
Equipped with a precision-engineered lens that enhances lighting spread for maximum output, ensuring you get the most value from your energy use. This high-efficiency design delivers superior brightness and performance, making it an ideal choice for those seeking efficiency in lighting spread to gain maximum output for your electric consumption.
Design
Build

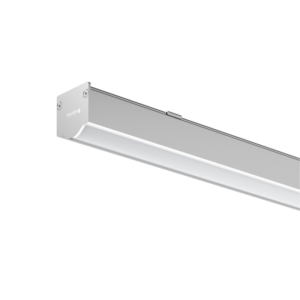

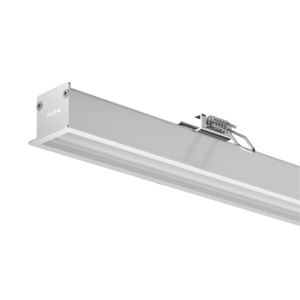

Fixture housing is made from anodized aluminum extruded from 6063-T5 grade material, offering modularity with length configurations in increments of 125mm. This design flexibility allows the fixture to be mounted either on the surface or recessed, accommodating various ceiling types such as gypsum, wood, or concrete.
Design
Power Source
Mid-power SMD LED modules with exceptional color consistency (3 SDCM) and a lifespan exceeding 50,000 hours (L80/B10) are available. CRI options include >80 and >90. CCT ranges include 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, and tunable white (2200K-5700K).
