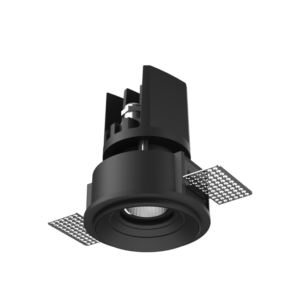

The Opti Small from Plus Light Tech is a 13-watt fixture that provides up to 800 lumens. It offers versatility with three beam angles: narrow, medium, and wide.
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
Design
Optics
The optic features a complex surface design that enables a wide range of light distributions, enhanced by micro facets that ensure even light spread and reduce glare. Utilizing high-precision injection moulding, it achieves superior performance and control, while its highly reflective coating, with up to 90% reflectance, maximizes efficiency. This makes it ideal for applications in high room heights, office environments, and traffic zones, including corridors and shopping centres, as well as in spaces with lower ceilings.
Design
Build
Fixture housing is constructed from ADC12 aluminum pressure die-cast and coated with a premium PPG powder coating that resists yellowing for up to 10 years. The mounting system is designed for simplicity, making installation easy and efficient.
Design
Power Source
High-power SMD LED modules with exceptional color consistency (3 SDCM) and a lifespan exceeding 50,000 hours (L80/B10) are available. CRI options include >80, >90, >95, and >98. CCT ranges include 2700K, 3000K, 3500K, 4000K, and 5700K.
Location: Bartenbach GmbH, Austria
