Product Description
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
Design
Optics
Optic is design with excellent uniformity, homogeneous color mixing under one reflector cell.Dark Light accessories available to make the optic complete glare free. Beam angle is 2x25/2x35
Design
Build
Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.
Design
Power Source
ON-OFF/DT8.0//Dali 2.0/ TD/AD/BLE dim
Product Specifications
Filter Options
Filter By Color Temprature
Filter By Beam Angle
Filter By Wattage
Product Specifications
Color Temperature (CCT) | Luminaire Dimension | Beam Angle | Wattage | Lumens | UGR | IP Rating | Product Code |
---|---|---|---|---|---|---|---|
4000K | L 108 x H 111 | 52° | 21 W | 1485 lm | <12 | IP20 | Axis M Adjustable Recessed 4K M 01 |
4000K | L 124 x H 108 | 35° | 21 W | 1382 lm | <1 | IP20 | Axis M Adjustable Recessed 4K N 02 |
3000K | L 108 x H 111 | 53° | 21 W | 1434 lm | <12 | IP20 | Axis M Adjustable Recessed 3K M 03 |
3000K | L 124 x H 108 | 36° | 21 W | 1273 lm | <3 | IP20 | Axis M Adjustable Recessed 3K N 04 |

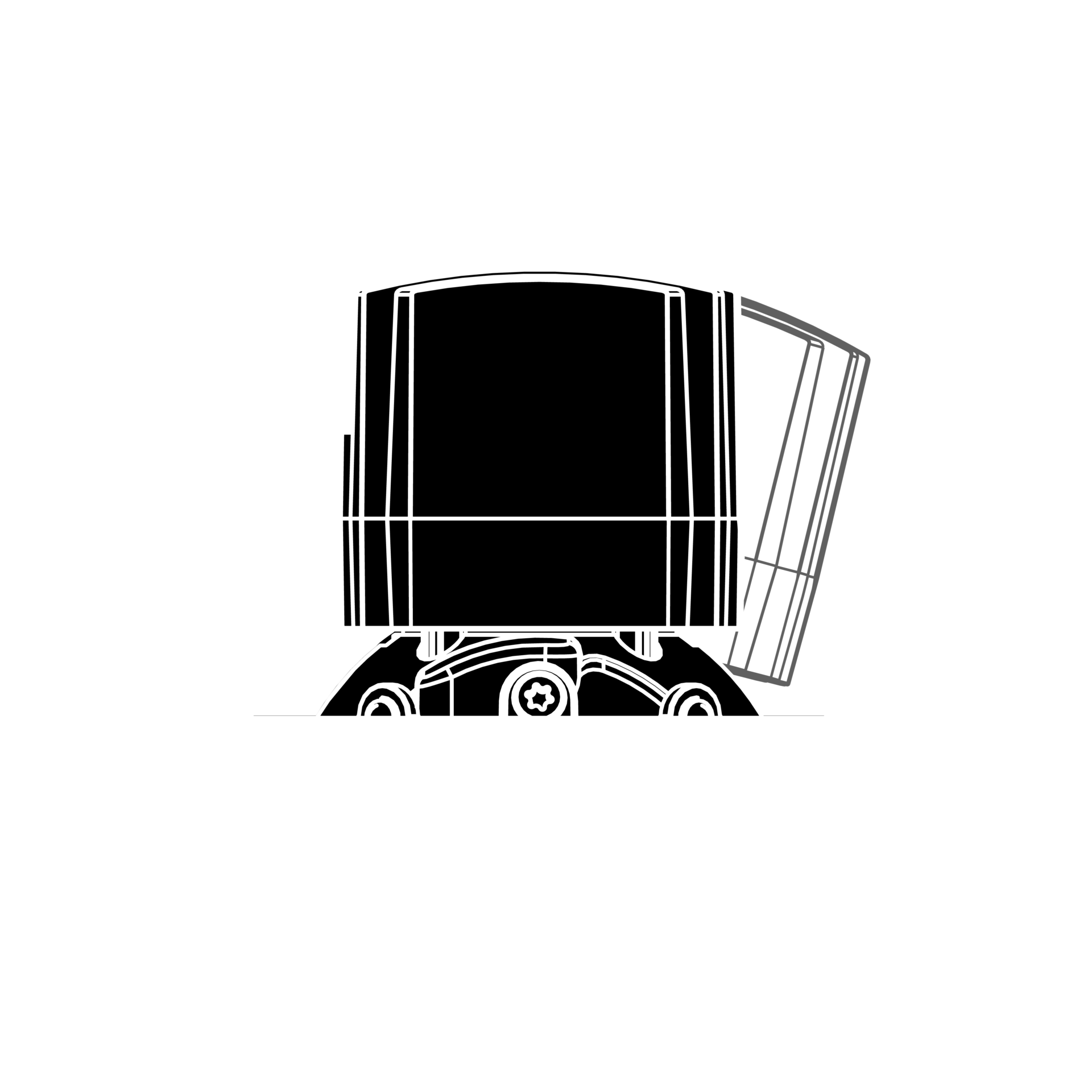

Dimensions
Location: Bartenbach GmbH, Austria
