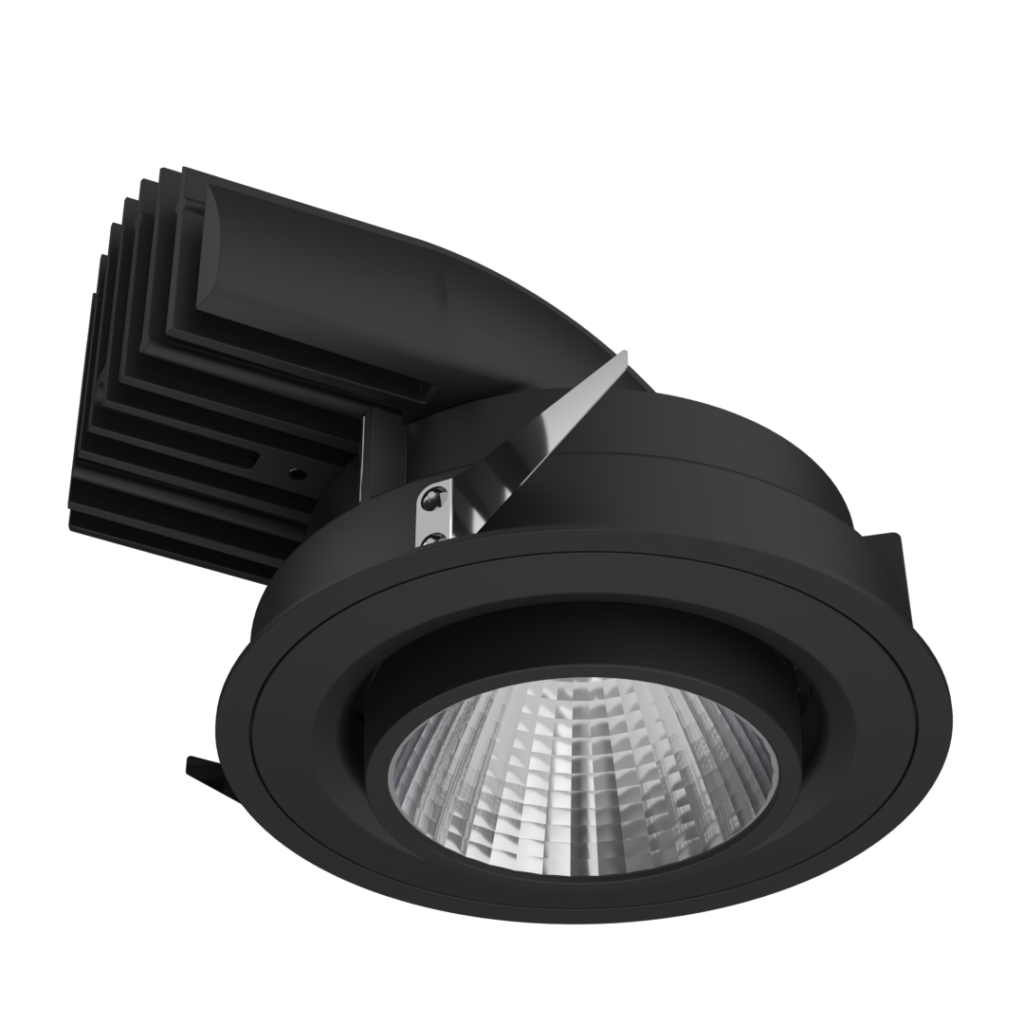

Boom S

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.
Display Image
Display Image

Boom S

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

View PLUS TECHNOLOGY

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

View PLUS TECHNOLOGY

Design

Optics

Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area.

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Boom S Downlight 4K 32W 74°

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

75Âş

Wattage

32W

Lumens

2386 lm

UGR

<9

IP Rating

IP20
Boom S Downlight 4K 32W 42°

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

42Âş

Wattage

32W

Lumens

3115 lm

UGR

<9

IP Rating

IP20
Boom S Downlight 4K 32W 29°

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

29Âş

Wattage

32W

Lumens

3119 lm

UGR

<9

IP Rating

IP20
Boom S Downlight 4K 32W 21°

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

21Âş

Wattage

32W

Lumens

3100 lm

UGR

<9

IP Rating

IP20
Boom S Downlight 3.5K 32W 78°

Color Temperature (CCT)

3500K

Luminaire Dimension

-

Beam Angle

78Âş

Wattage

32W

Lumens

2469 lm

UGR

<9

IP Rating

IP20
Boom S Downlight 3.5K 32W 42°

Color Temperature (CCT)

3500K

Luminaire Dimension

-

Beam Angle

42Âş

Wattage

32W

Lumens

3153 lm

UGR

<9

IP Rating

IP20
Boom S Downlight 3.5K 32W 29°

Color Temperature (CCT)

3500K

Luminaire Dimension

-

Beam Angle

29Âş

Wattage

32W

Lumens

3193 lm

UGR

<9

IP Rating

IP20
Boom S Downlight 3K 32W 77°

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

77Âş

Wattage

32W

Lumens

2111 lm

UGR

<9

IP Rating

IP20
Boom S Downlight 3K 32W 41°

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

41Âş

Wattage

32W

Lumens

2609 lm

UGR

<9

IP Rating

IP20
Boom S Downlight 3K 32W 31°

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

31Âş

Wattage

32W

Lumens

2646 lm

UGR

<9

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Product Code
3000K - 20º 32W 2607 lm < 9 IP20 82 lm/W Boom S Downlight 3K 32W 20°
3000K - 31º 32W 2646 lm < 9 IP20 84 lm/W Boom S Downlight 3K 32W 31°
3000K - 41º 32W 2890 lm < 9 IP20 82 lm/W Boom S Downlight 3K 32W 41°
3000K - 77º 32W 2111 lm < 9 IP20 67 lm/W Boom S Downlight 3K 32W 77°
3000K - 20º 35W 2890 lm < 9 IP20 81 lm/W Boom S Downlight 3K 35W 20°
3000K - 31º 35W 2937 lm <9 IP20 83 lm/W Boom S Downlight 3K 35W 31°
3000K - 41º 35W 2890 lm <9 IP20 82 lm/W Boom S Downlight 3K 35W 41°
3000K - 77º 35W 2234 lm <9 IP20 63 lm/W Boom S Downlight 3K 35W 77°
3500K - 20º 32W 3123 lm <9 IP20 99 lm/W Boom S Downlight 3.5K 32W 20°
3500K - 29º 32W 3193 lm <9 IP20 101 lm/W Boom S Downlight 3.5K 32W 29°
3500K - 42º 32W 3153 lm <9 IP20 100 lm/W Boom S Downlight 3.5K 32W 42°
3500K - 78º 32W 2469 lm <9 IP20 76 lm/W Boom S Downlight 3.5K 32W 78°
3500K - 20º 35W 3412 lm <9 IP20 97 lm/W Boom S Downlight 3.5K 35W 20°
3500K - 29º 35W 3472 lm < 9 IP20 98 lm/W Boom S Downlight 3.5K 35W 29°
3500K - 42º 35W 3407 lm < 9 IP20 97 lm/W Boom S Downlight 3.5K 35W 42°
3500K - 78º 35W 2690 lm < 9 IP20 74 lm/W Boom S Downlight 3.5K 35W 78°
4000K - 21º 32W 3100 lm <9 IP20 96 lm/W Boom S Downlight 4K 32W 21°
4000K - 29º 32W 3119 lm <9 IP20 97 lm/W Boom S Downlight 4K 32W 29°
4000K - 42º 32W 3115 lm <9 IP20 97 lm/W Boom S Downlight 4K 32W 42°
4000K - 74º 32W 2386 lm <9 IP20 74 lm/W Boom S Downlight 4K 32W 75°
4000K - 21º 36W 3397 lm <9 IP20 94 lm/W Boom S Downlight 4K 36W 21°
4000K - 29º 36W 3408 lm <9 IP20 94 lm/W Boom S Downlight 4K 36W 29°
4000K - 42º 36W 3393 lm < 9 IP20 94 lm/W Boom S Downlight 4K 36W 42°
4000K - 74º 36W 2516 lm < 9 IP20 70 lm/W Boom S Downlight 4K 36W 74°

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
