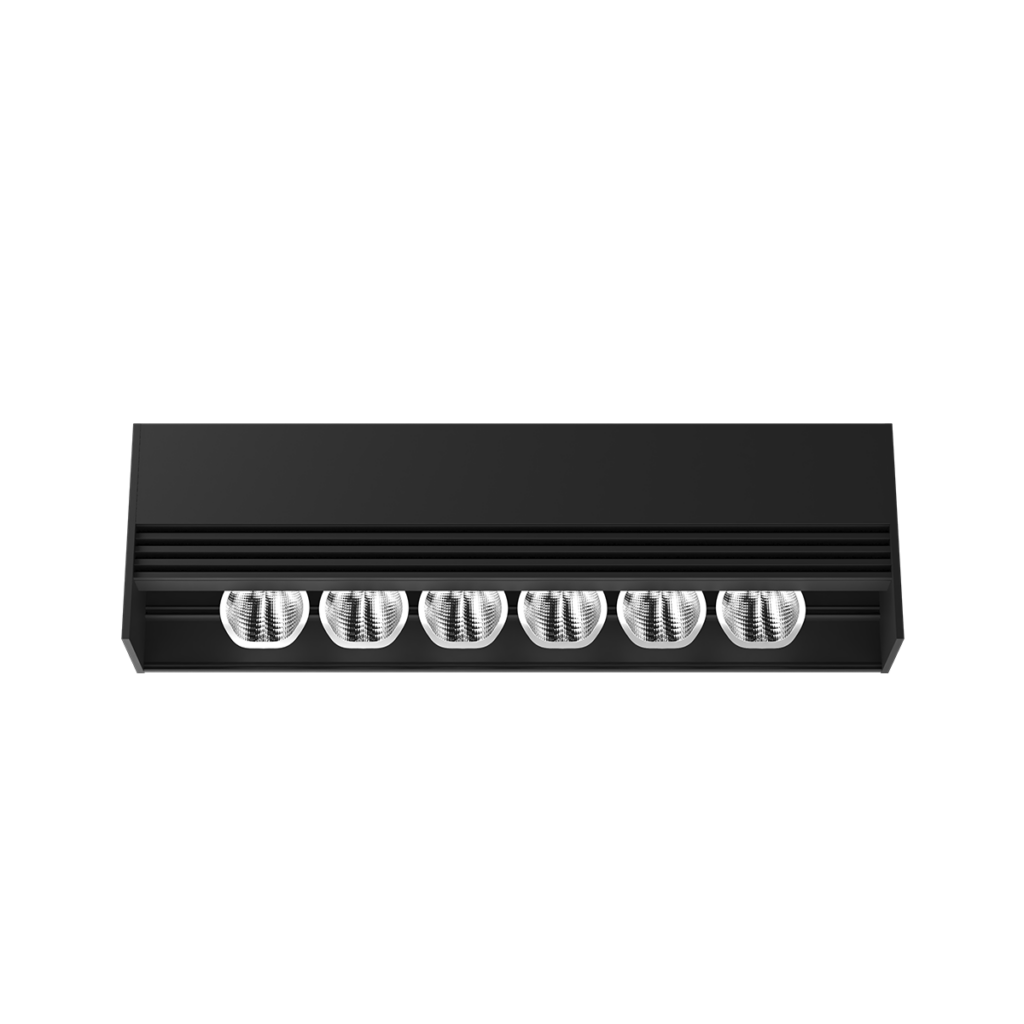

Elite Surface Wallwasher Integrated

Elite Surface Wallwasher Integrated
← Go Back

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Download TDS
2200K L 46 x H 91 Assymetric WW 19 W 1547 lm <42 IP20 80lm/W ELITE INTEGRATED SURFACE WW 22K
2700K L 46 x H 91 Assymetric WW 19 W 1434 lm <41 IP20 74 lm/W ELITE INTEGRATED SURFACE WW 27K
3000K L 46 x H 91 Assymetric WW 19 W 1562lm <41 IP20 81lm/W ELITE INTEGRATED SURFACE WW 3K
4000K L 46 x H 91 Assymetric WW 19 W 1720 lm <42 IP20 91 lm/W ELITE INTEGRATED SURFACE WW 4K
5700K L 46 x H 91 Assymetric WW 19 W 1715 lm <40 IP20 88 lm/W ELITE INTEGRATED SURFACE WW 57K

PL06822

/ Downloads

Technical Data

Technical drawing:2D

Data Sheet

Photometric data: IES

Photo selection

Choose your Perfect Finish

Explore the full range of finishes available for the product

Solid

white
White
black
Black
Satin smooth RAL1013
Satin smooth RAL1013
Satin smooth RAL1015
Satin smooth RAL1015
Satin smooth RAL7032
Satin smooth RAL7032
Satin smooth RAL7035
Satin smooth RAL7035
Satin smooth RAL7038
Satin smooth RAL7038
Satin smooth RAL7037
Satin smooth RAL7037
Satin smooth RAL7006
Satin smooth RAL7006
Satin smooth RAL7022
Satin smooth RAL7022
Satin smooth RAL7016
Satin smooth RAL7016
texture Schueco Grey Fine
texture Schueco Grey Fine
Matt smooth RAL7031
Matt smooth RAL7031
Matt smooth RAL7012
Matt smooth RAL7012
Matt smooth RAL7043
Matt smooth RAL7043
Matt smooth RAL7024
Matt smooth RAL7024
Matt smooth RAL7015
Matt smooth RAL7015
Satin smooth RAL8017
Satin smooth RAL8017
Matt smooth RAL9005
Matt smooth RAL9005
Satin smooth RAL8004
Satin smooth RAL8004
Satin smooth RAL9003
Satin smooth RAL9003
Satin smooth RAL9016
Satin smooth RAL9016
Satin smooth RAL9010
Satin smooth RAL9010
Matt smooth RAL7047
Matt smooth RAL7047
Satin smooth RAL9002
Satin smooth RAL9002
Matt smooth RAL7030
Matt smooth RAL7030
Matt smooth RAL7011
Matt smooth RAL7011
Matt smooth RAL7012
Matt smooth RAL7012
Matt smooth RAL7043
Matt smooth RAL7043
Satin smooth RAL7021
Satin smooth RAL7021
Matt smooth RAL9005
Matt smooth RAL9005

Metallic

Satin RAL9022
Satin RAL9022
Satin RAL9006
Satin RAL9006
Satin RAL9007
Satin RAL9007
Satin RAL7001
Satin RAL7001
Texture RAL9023
Texture RAL9023
Texture Veranda 25
Texture Veranda
Satin Metro Gold
Satin Metro Gold
Satin RAL1035
Satin RAL1035
Texture 2500 MT Gray
Texture 2500 MT Gray
Texture 2600 Sable
Texture 2600 Sable
Texture 2900 MT Gray
Texture 2900 MT Gray
Texture Anodic Bronze
Texture Anodic Bronze
Texture Noir 2200 Sable
Texture Noir 2200 Sable
Texture Sparkle Grey
Texture Sparkle Grey
Texture Anodic Bronze III
Texture Anodic Bronze III
Texture Dark Gray
Texture Dark Gray
Texture Veranda 22
Texture Veranda 22
Matt Chocolate Brown
Matt Chocolate Brown

Special Finishes

Texture White Stone (1)
Texture White Stone
Texture Sand Stone (1) r1
Texture Sand Stone
Texture Dark Grey Natural Concrete r1
Texture Dark Grey Natural Concrete
Texture Red Brick r1
Texture Red Brick
