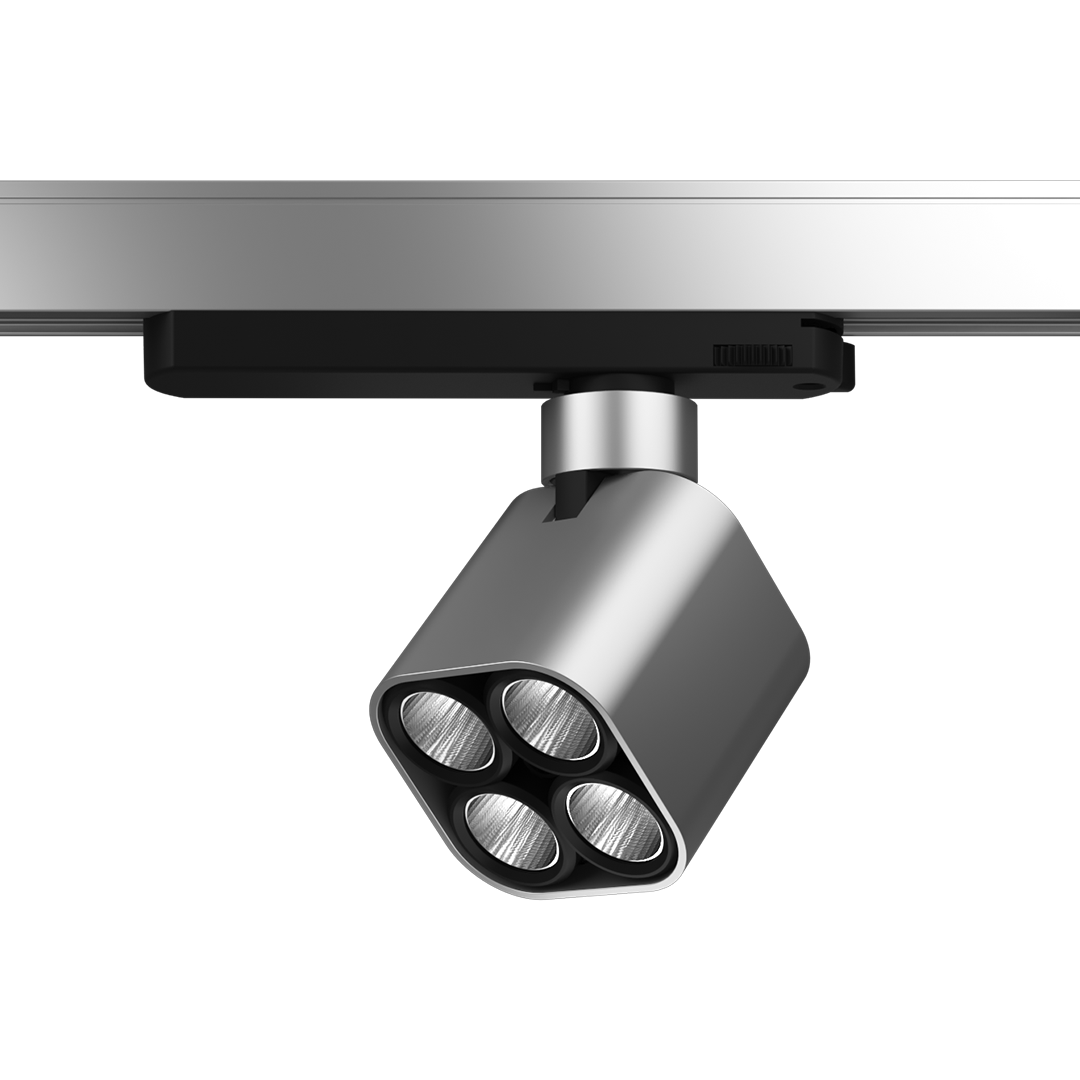

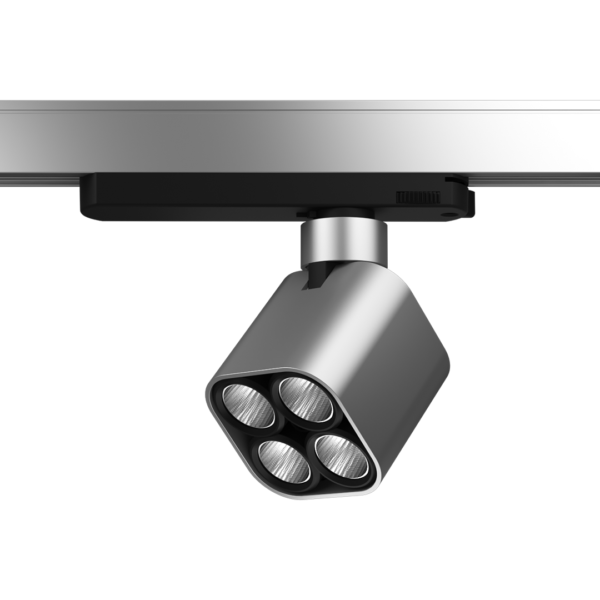

Magnus Track Square 4X

UGR :

<9

Efficacy (Max) :

93 lm/W

CRI

90+

Aperture Size :

26 mm

Beam Angles :

16°, 35°, 53°, 85°

IP :

IP20

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications?from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.

High efficiency

Utilizing advanced LED technology, Perdu lights deliver superior brightness while significantly reducing power usage. This also helps contribute to a greener environment by minimizing carbon footprint.

High Uniformity

Precision-engineered optics and high-quality LEDs work together to eliminate dark spots and glare, creating an ideal environment where clarity and consistency are paramount.

Architecturally integrated

The minimalist design allows Perdu to become an unobtrusive part of the ceiling, maintaining the clean lines between elegance in simplicity and sophistication of the space.

Miniature Aperture

The miniature aperture size ensures that the light source remains discreet while delivering powerful illumination exactly where it’s needed, which allows for precise and focused lighting effects.

Sharp cut-off, minimal spill. lndustry leading optics, crafted in exclusive partnership with Bartenbach

Magnus Track Square 4X

The Magnus Track Square 4X offers precision-engineered beam angles 35°, 53°, and 85° allowing designers to shape light exactly as the space demands, from tight accent highlights to wide, comfortable general illumination. Its advanced faceted reflector uses multi-surface light control to deliver exceptional uniformity, reduce glare, and enhance visual comfort while maintaining high-efficiency output.

Magnus Track Square Superspot 4X

The Magnus Track Square Superspot 4X is engineered for precise, high-impact accent lighting. Its 16° beam angle creates a powerful, focused light cone ideal for highlighting products, artworks, textures, or architectural details with dramatic clarity. The advanced lens optic intensifies beam control, delivering crisp edges, superior centre-beam punch, and minimal spill light ensuring every highlight stands out with precision and visual purity.

Technical Specifications

Color Temperature (CCT)	Beam Angle	Wattage	Lumens	UGR	IP Rating	Efficacy	Know More Details
5700K	85°	19 W	1754 lm	<26	IP20	91 lm/W	Magnus 4x Track ACDC Square 57K W
5700K	53º	19 W	1636 lm	<19	IP20	86 lm/W	Magnus 4x Track ACDC Square 57K M
5700K	35°	19 W	1448 lm	<9	IP20	76 lm/W	Magnus 4x Track ACDC Square 57K N
4000K	85°	19 W	1762 lm	<25	IP20	93 lm/W	Magnus 4x Track ACDC Square 4K W 01
4000K	53°	19 W	1773 lm	<16	IP20	93 lm/W	Magnus 4x Track ACDC Square 4K M 02
4000K	35°	19 W	1589 lm	<9	IP20	83 lm/W	Magnus 4x Track ACDC Square 4K N 03
3000K	85°	19 W	1709 lm	<26	IP20	89 lm/W	Magnus 4x Track ACDC Square 3K W 04
3000K	53°	19 W	1611 lm	<19	IP20	84 lm/W	Magnus 4x Track ACDC Square 3K M 05
3000K	35°	19 W	1430 lm	<9	IP20	75 lm/W	Magnus 4x Track ACDC Square 3K N 06
2700K	85°	19 W	1629 lm	<26	IP20	85 lm/W	Magnus 4x Track ACDC Square 27K W
2700K	53°	19 W	1534 lm	<19	IP20	80 lm/W	Magnus 4x Track ACDC Square 27K M
2700K	35°	19 W	1317 lm	<9	IP20	68 lm/W	Magnus 4x Track ACDC Square 27K N
2200K	85°	19 W	1386 lm	<26	IP20	73 lm/W	Magnus 4x Track ACDC Square 22K W
2200K	53°	19 W	1310 lm	<13	IP20	68 lm/W	Magnus 4x Track ACDC Square 22K M
2200K	35°	19 W	1265 lm	<9	IP20	66 lm/W	Magnus 4x Track ACDC Square 22K N
5700K	85°	19 W	1754 lm	<26	IP20	91 lm/W	Magnus 4x Track LVDC Square 57K W
5700K	53°	19 W	1636 lm	<19	IP20	86 lm/W	Magnus 4x Track LVDC Square 57K M
5700K	35°	19 W	1448 lm	<9	IP20	76 lm/W	Magnus 4x Track LVDC Square 57K N
4000K	85°	19 W	1762 lm	<25	IP20	93 lm/W	Magnus 4x Track LVDC Square 4K W 07
4000K	53°	19 W	1773 lm	<16	IP20	93 lm/W	Magnus 4x Track LVDC Square 4K M 08
4000K	35°	19 W	1589 lm	<9	IP20	83 lm/W	Magnus 4x Track LVDC Square 4K N 09
3000K	85°	19 W	1709 lm	<26	IP20	89 lm/W	Magnus 4x Track LVDC Square 3K W 10
3000K	53°	19 W	1611 lm	<19	IP20	84 lm/W	Magnus 4x Track LVDC Square 3K M 11
3000K	35°	19 W	1430 lm	<9	IP20	75 lm/W	Magnus 4x Track LVDC Square 3K N 12
2700K	85°	19 W	1629 lm	<26	IP20	85 lm/W	Magnus 4x Track LVDC Square 27K W
2700K	53°	19 W	1534 lm	<19	IP20	80 lm/W	Magnus 4x Track LVDC Square 27K M
2700K	35°	19 W	1317 lm	<9	IP20	68 lm/W	Magnus 4x Track LVDC Square 27K N
2200K	85°	19 W	1386 lm	<26	IP20	73 lm/W	Magnus 4x Track LVDC Square 22K W
2200K	53°	19 W	1310 lm	<13	IP20	68 lm/W	Magnus 4x Track LVDC Square 22K M
2200K	35°	19 W	1265 lm	<9	IP20	66 lm/W	Magnus 4x Track LVDC Square 22K N
4000K	16°	19 W	1236 lm	<9	IP20	64 lm/W	Magnus 4x Square Track Spot Superspot ACDC 4K
3000K	16°	19 W	1118 lm	<9	IP20	59 lm/W	Magnus 4x Square Track Spot Superspot ACDC 3K
4000K	16°	19 W	1236 lm	<9	IP20	64 lm/W	Magnus 4x Square Track Spot Superspot LVDC 4K
3000K	16°	19 W	1118 lm	<9	IP20	59 lm/W	Magnus 4x Square Track Spot Superspot LVDC 3K
