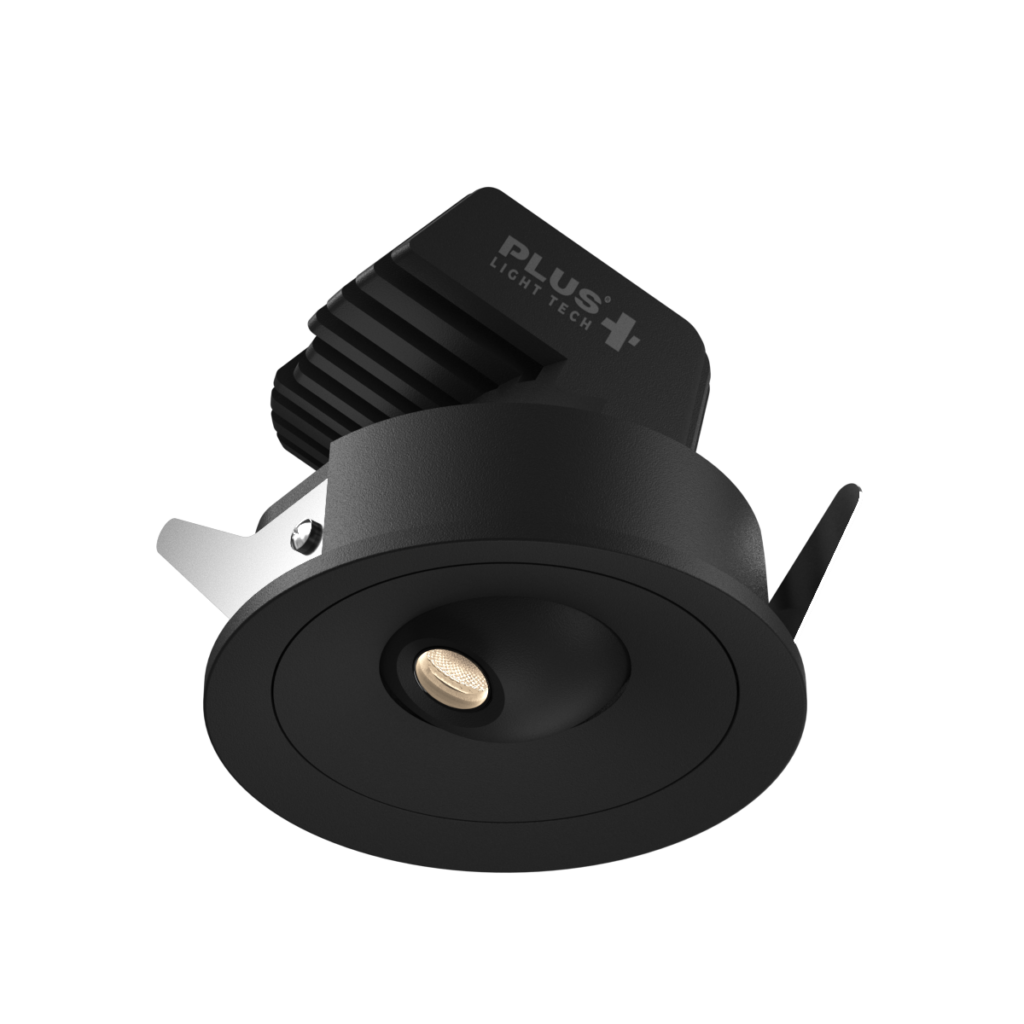

Oculus Recessed

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.
Display Image
Display Image

Oculus Recessed

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Lens based optics are designed to have uniformity and high efficiency and complete glare free effect! The lens faceted structure is design to collimate and distribute the light through min apperture size of 10mm &13mm. Option for Beam angle(FWHM) is 2x12deg(new yet to add)/2x17deg/2x30deg

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

ON-OFF/Dali 2.0/ TD/AD/BLE dim

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

ILIOS CURTAIN GRAZER SURFACE

Color Temperature (CCT)

2700K - 5700K

Luminaire Dimension

L 70 x H 61

Beam Angle

38º (Narrow) / 60º (Wide)

Wattage

11 W

Lumens

434 - 504 lm

UGR

<10

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Product Code
2700K - 5700K L 70 x H 61 38º (Narrow) / 60º (Wide) 11 W 434 - 504 lm <10 IP20 83 – 91lm/W ILIOS CURTAIN GRAZER SURFACE 27-57K 01

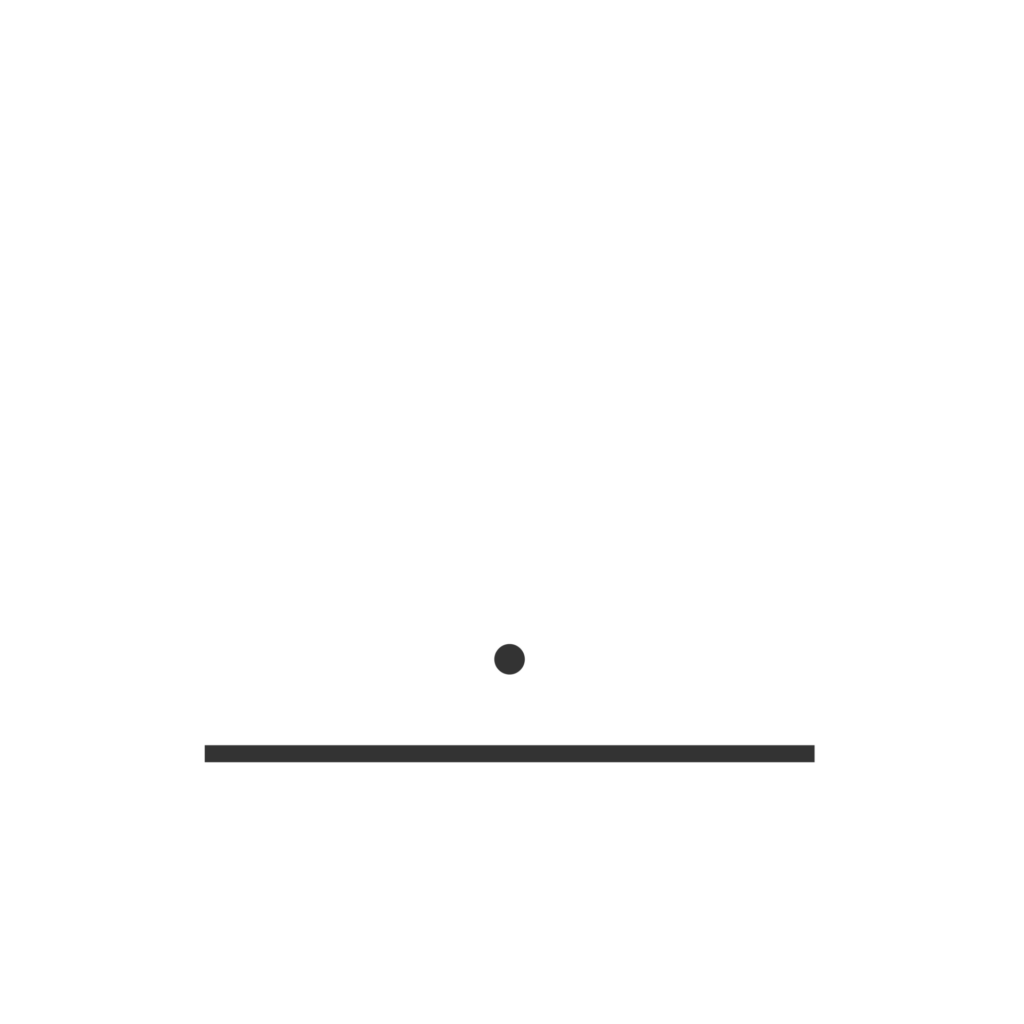

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
