Product Description
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
Design
Optics

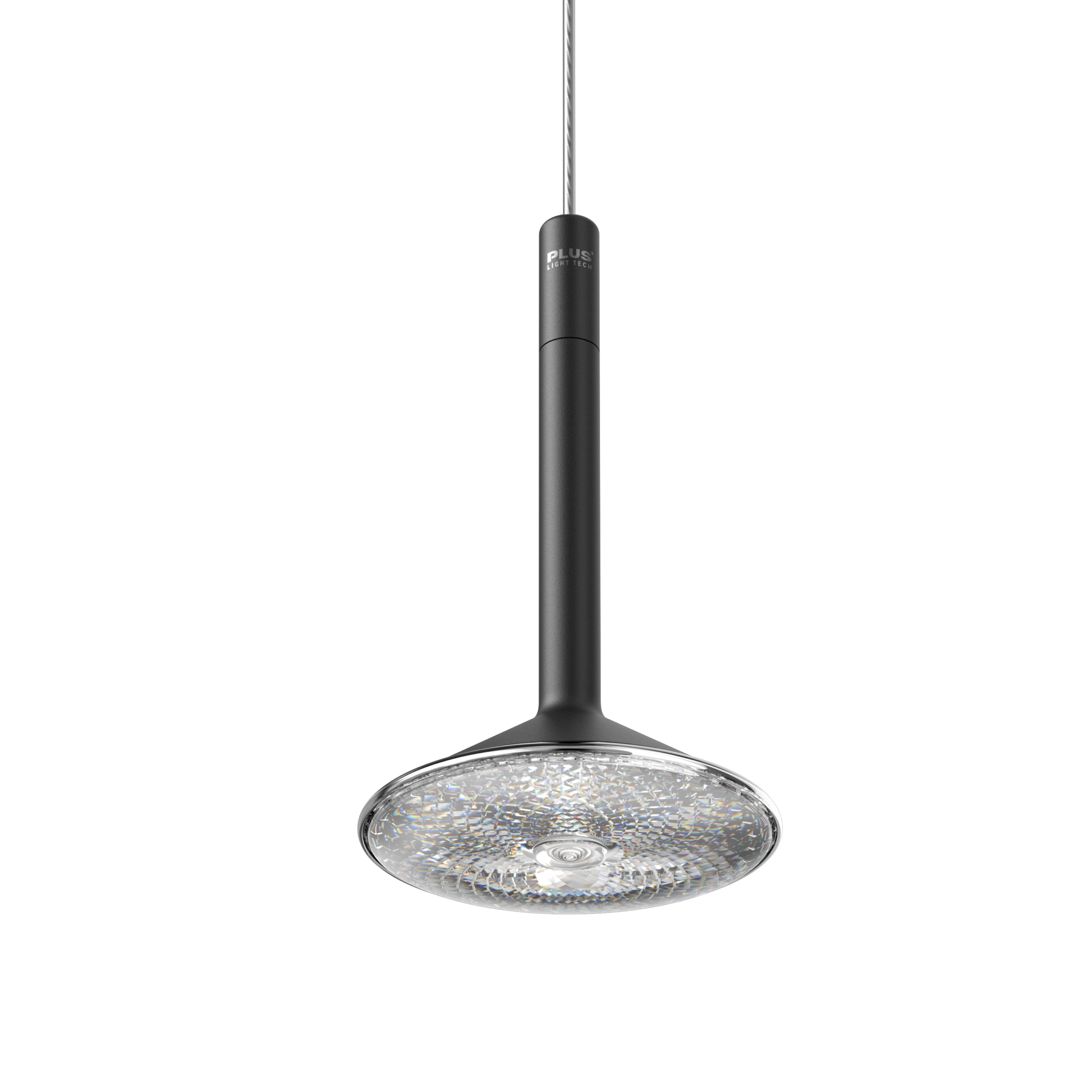

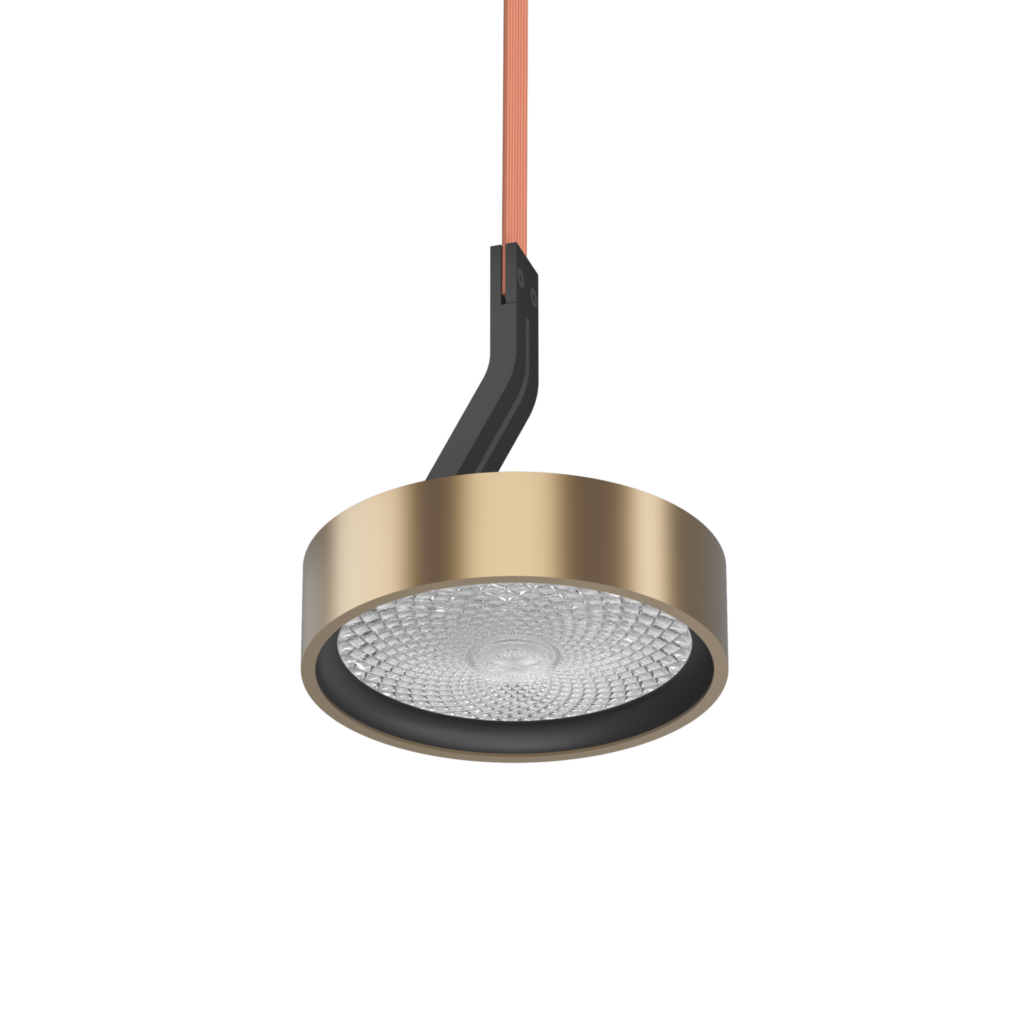

Donwlight - A wide beam light distribution with smooth fade-out, ensuring high efficiency and a brilliant appearance. It provides excellent uniformity with smooth light distribution and features dynamic white light within a single lens. The large light-emitting surface helps reduce light pressure. Designed for downlighting with vertical illumination, it is suitable for both recessed and pendant luminaires. The dimensions are 100mm in diameter and 14.2mm in height, with a system efficiency of ≥75%. Available beam angles are 2x46.5° at 1/10 and 2x24° at 1/2.
Design
Build
Fixture housing is made from pure CNC-machined aluminum with less than 1% copper content, ensuring a consistent, high-quality outdoor grade. It is available in various anodized finishes or special powder coatings, including RAL7016, RAL7002, and RAL9005. These finishes have been tested to withstand over 1000 hours of salt spray exposure, ensuring excellent durability and resistance to harsh outdoor conditions.
Design
Power Source
Product Specifications
Filter Options
Filter By Color Temprature
Filter By Beam Angle
Filter By Wattage
Product Specifications
Filter By Color Temprature
Filter By Beam Angle
Filter By Wattage
| Color Temperature (CCT) | Luminaire Dimension | Beam Angle | Wattage | Lumens | UGR | IP Rating | Product Code |
|---|---|---|---|---|---|---|---|
| 3000K | Ø120mm | Medium 45º | 20W | 1289lm | <23 | IP20 > IP43 | PLTPNDT01 |

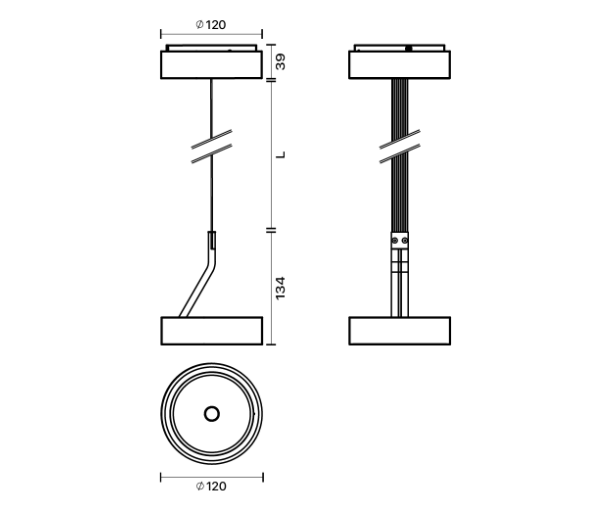

Dimensions
Location: Bartenbach GmbH, Austria
