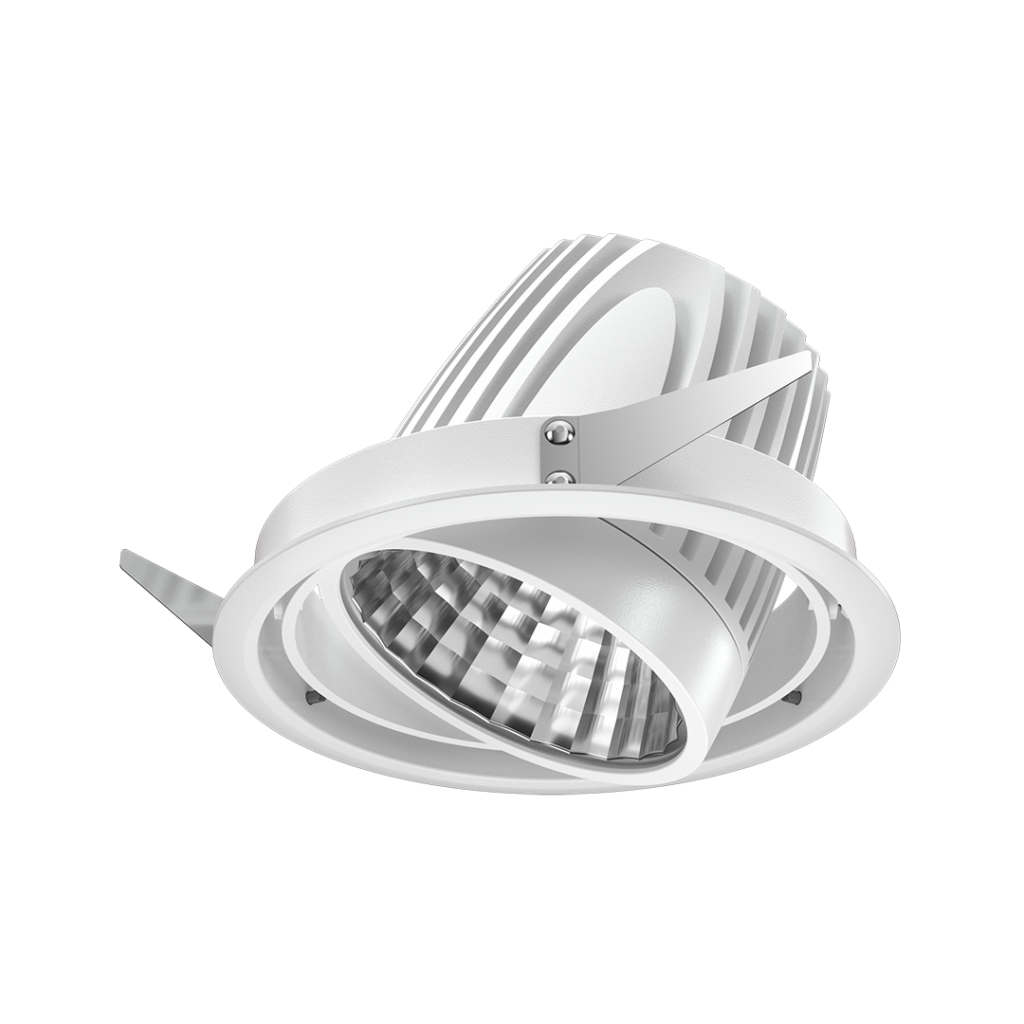

Ray M Recessed Spotlight

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.
Display Image
Display Image

Ray M Recessed Spotlight

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area.

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

On-Off/ Dali2/DT8/AD/TD/BLE

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Ray M Recessed Spotlight 3.5K 27º

Color Temperature (CCT)

3500K

Luminaire Dimension

-

Beam Angle

27º

Wattage

34W

Lumens

3811 lm

UGR

<16

IP Rating

IP20
Ray M Recessed Spotlight 3.5K 20º

Color Temperature (CCT)

3500K

Luminaire Dimension

-

Beam Angle

20º

Wattage

34W

Lumens

3821 lm

UGR

<14

IP Rating

IP20
Ray M Recessed Spotlight 3.5K 63º

Color Temperature (CCT)

3500K

Luminaire Dimension

-

Beam Angle

63º

Wattage

34W

Lumens

3757 lm

UGR

<19

IP Rating

IP20
Ray M Recessed Spotlight 3K 64º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

64º

Wattage

36W

Lumens

3491 lm

UGR

<20

IP Rating

IP20
Ray M Recessed Spotlight 3K 27º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

27º

Wattage

35W

Lumens

3486 lm

UGR

<15

IP Rating

IP20
Ray M Recessed Spotlight 3K 19º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

19º

Wattage

35W

Lumens

3453 lm

UGR

<16

IP Rating

IP20
Ray M Recessed Spotlight 4K 27º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

27º

Wattage

35W

Lumens

3623 lm

UGR

<16

IP Rating

IP20
Ray M Recessed Spotlight 4K 20º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

20º

Wattage

35W

Lumens

3593 lm

UGR

<15

IP Rating

IP20
Ray M Recessed Spotlight 4K 64º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

64º

Wattage

35W

Lumens

3626 lm

UGR

<19

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Product Code
3000K - 19º 35W 3453 lm <16 IP20 99 lm/W Ray M Recessed Spotlight 3K 19º
3000K - 27º 35W 3486 lm <15 IP20 98 lm/W Ray M Recessed Spotlight 3K 27º
3000K - 64º 36W 3491 lm <20 IP20 98 lm/W Ray M Recessed Spotlight 3K 64º
3500K - 20º 34W 3821 lm <14 IP20 111 lm/W Ray M Recessed Spotlight 3.5K 20º
3500K - 27º 34W 3811 lm <16 IP20 110 lm/W Ray M Recessed Spotlight 3.5K 27º
3500K - 63º 34W 3757 lm <19 IP20 109 lm/W Ray M Recessed Spotlight 3.5K 63º
4000K - 20º 35W 3593 lm <15 IP20 104 lm/W Ray M Recessed Spotlight 4K 20º
4000K - 27º 35W 3623 lm <16 IP20 104 lm/W Ray M Recessed Spotlight 4K 27º
4000K - 64º 35W 3626 lm <19 IP20 105 lm/W Ray M Recessed Spotlight 4K 64º

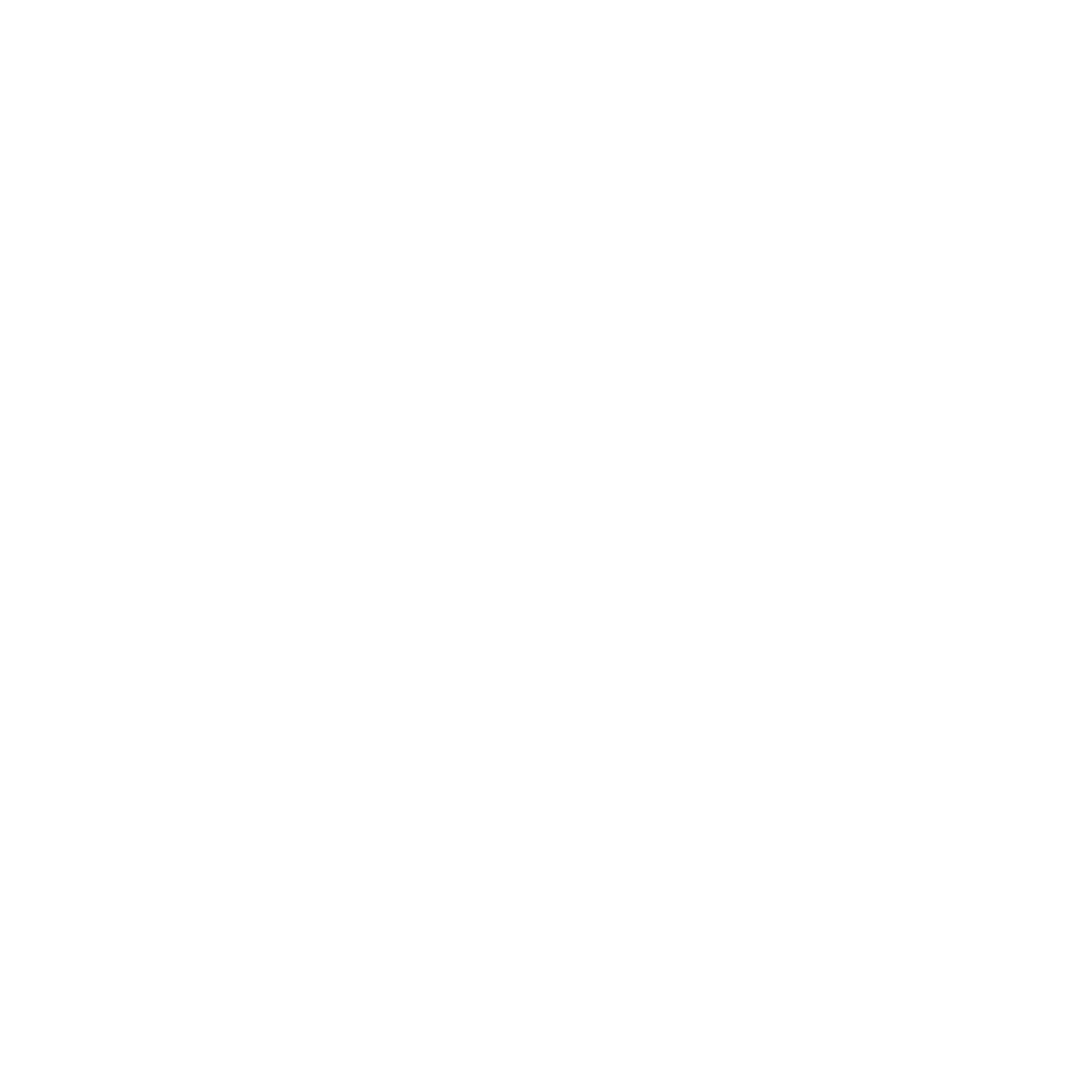

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
