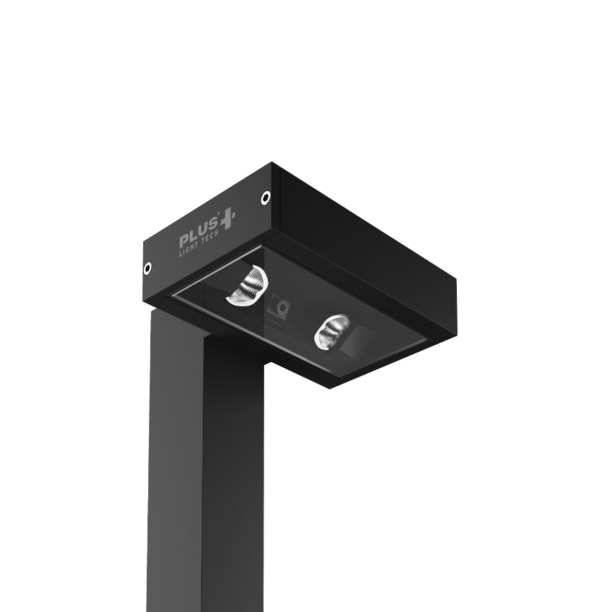

Razor Side Throw

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.
Display Image
Display Image

Razor Side Throw

gallery

Carefully crafted optics

in collaboration with

Bartenbach

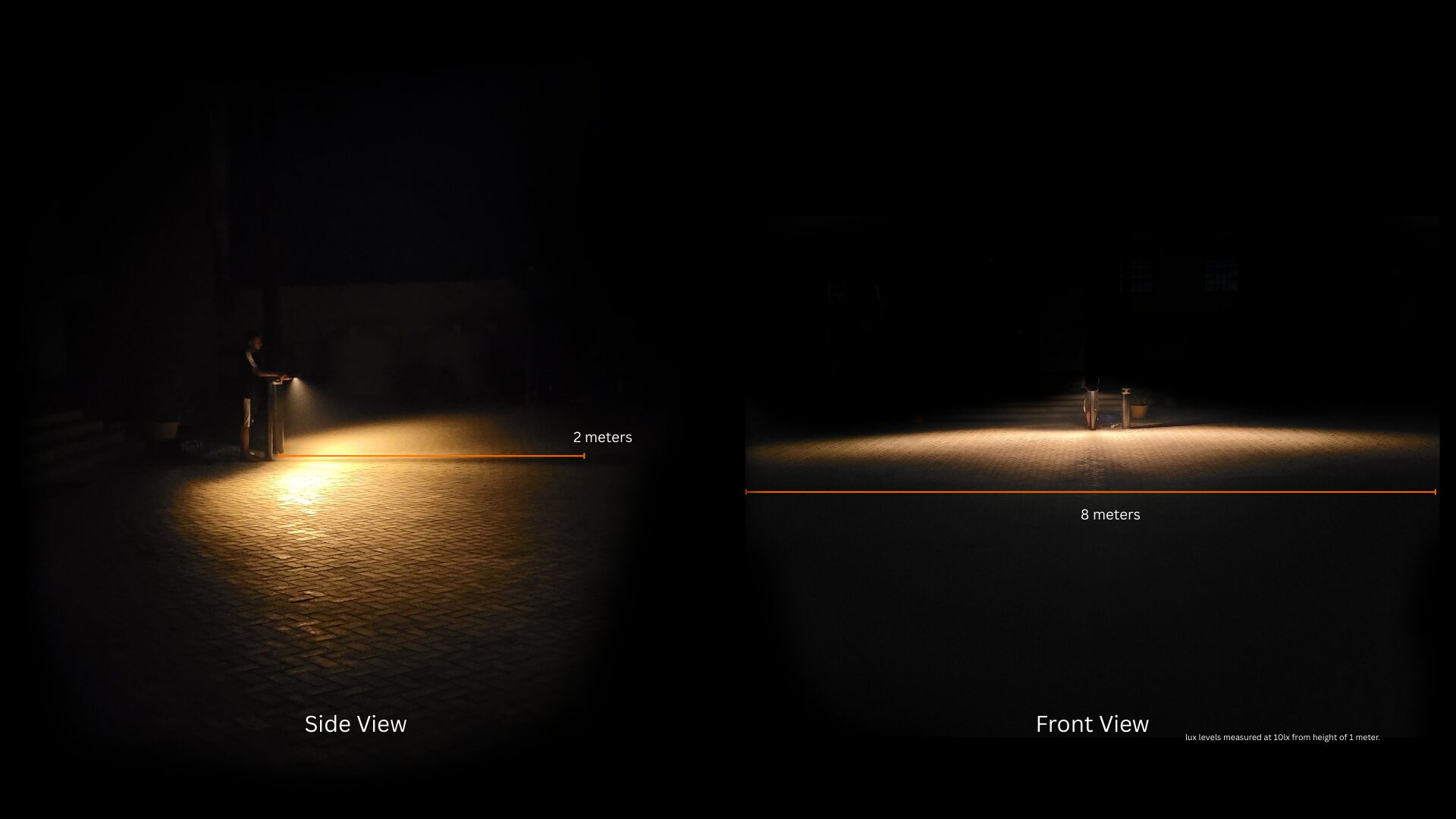

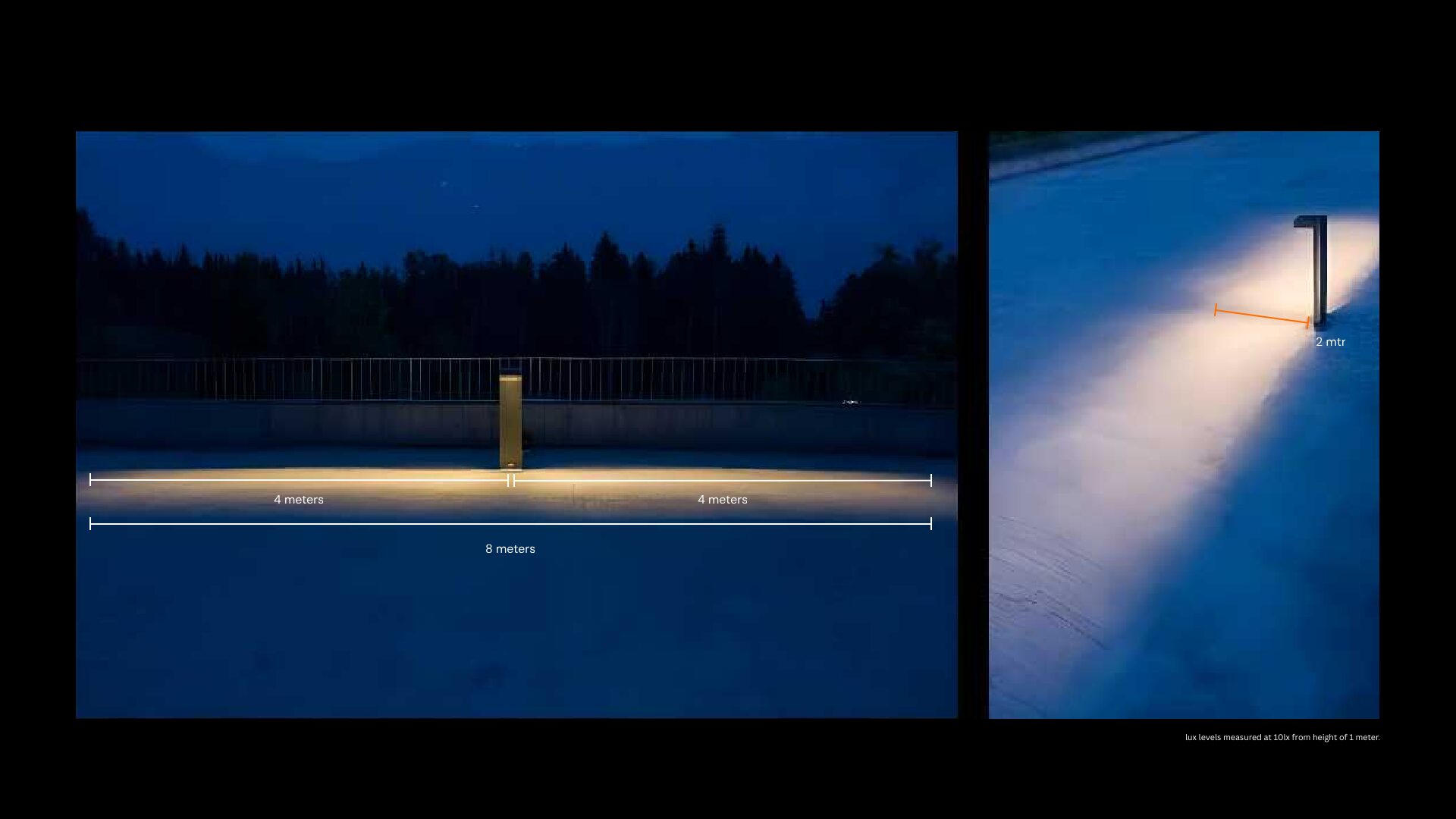

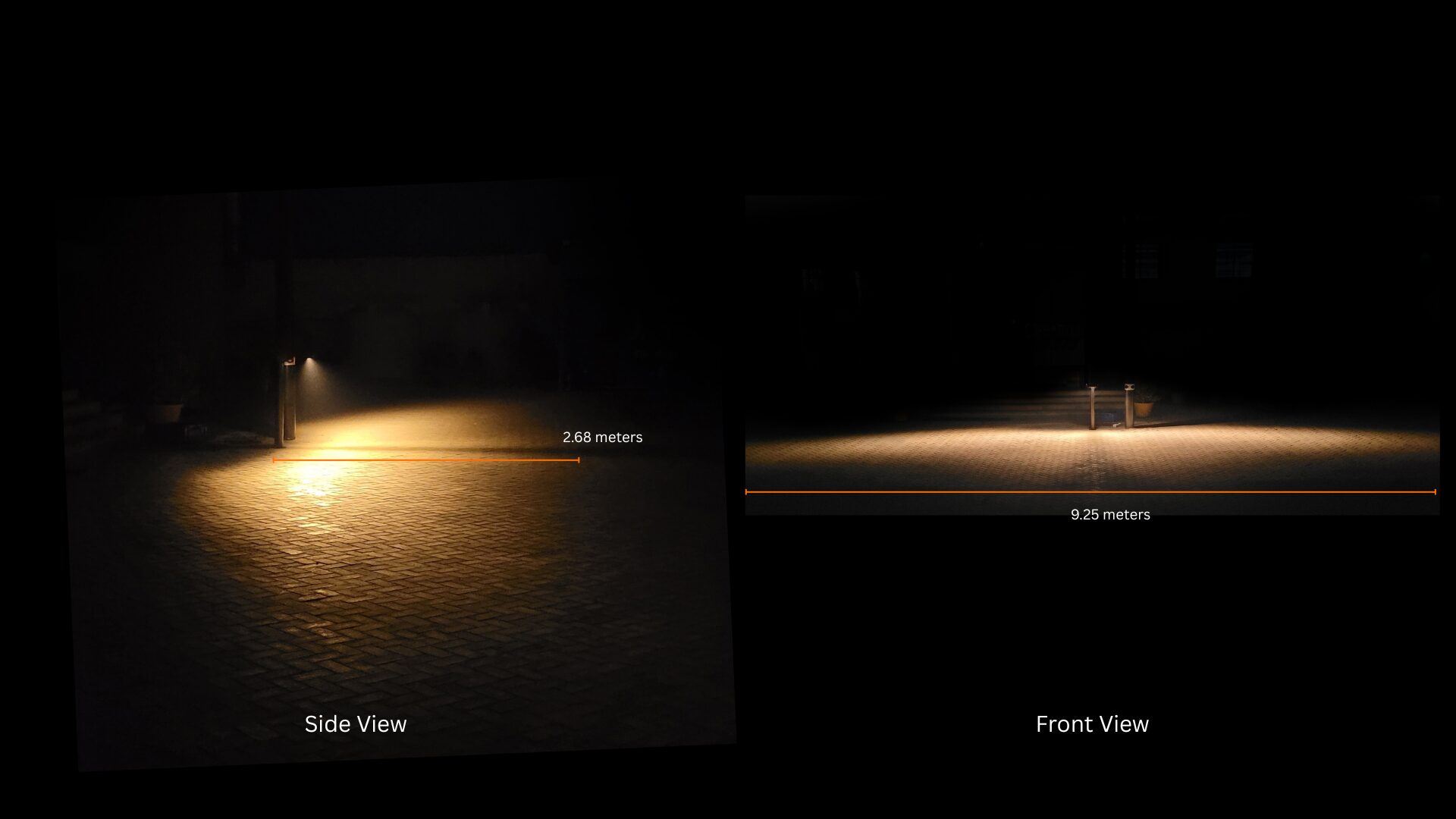

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Optic used for this application is having uniform light distribution with longitudal glare control and high efficiency. Beam angle is assymetric

Design

Build

Fixture housing is constructed with pressure die cast lamp housing body and extruded aluminum pole and other material housing grade with copper content less than 1% to have uniform outdoor grade special powder coating RAL7016/RAL7002/RAL9005 having higher salt spray life tested 1000hrs

Design

Power Source

On-Off/Dali2.0 Dim

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Razor Side Throw

Color Temperature (CCT)

3000K / 4000K

Luminaire Dimension

L 223 x H 1000

Beam Angle

Assymetric

Wattage

20 W

Lumens

846 lm

UGR

<19

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Product Code
3000K / 4000K L 223 x H 1000 Assymetric 20 W 846 lm <19 IP20 Razor Side Throw

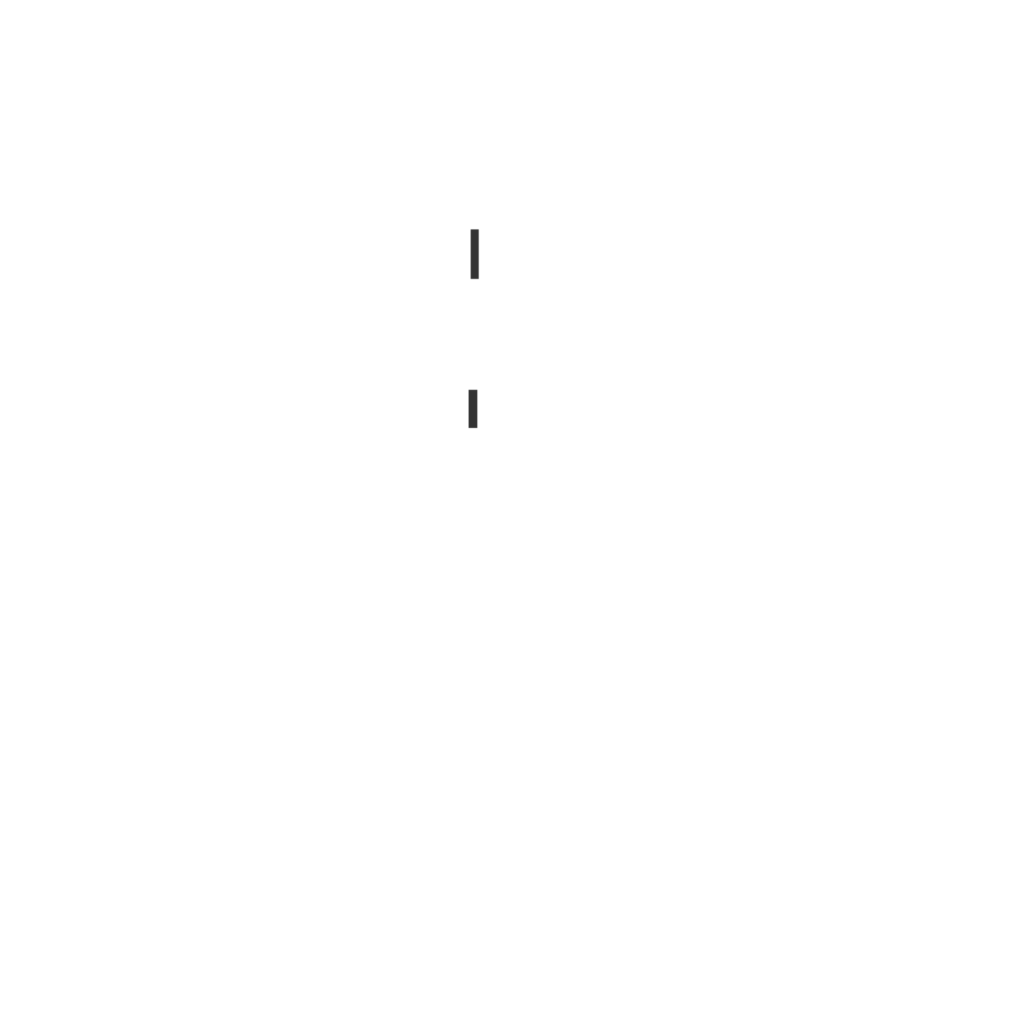

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
