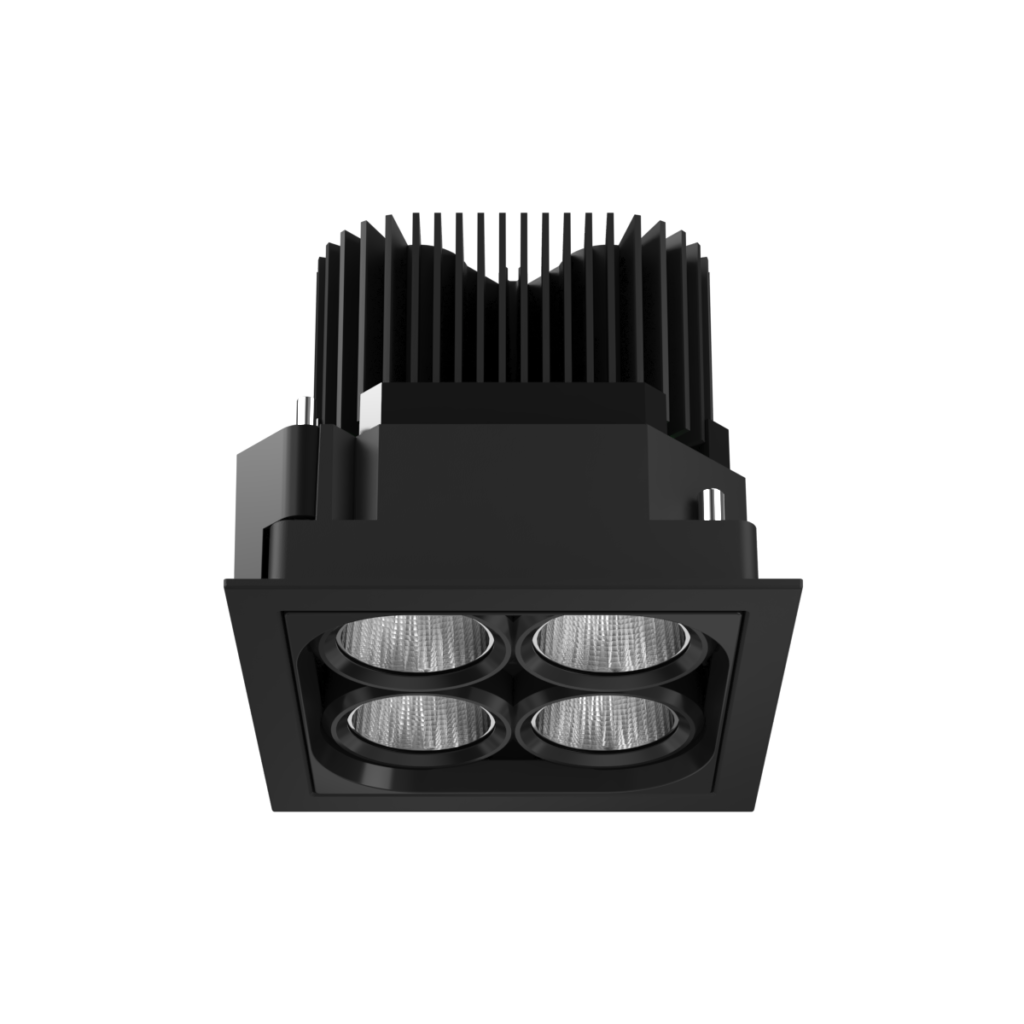

Product Description
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
View PLUS TECHNOLOGY
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
View PLUS TECHNOLOGY
Design
Optics
Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area. Beam angle is 2x25/2x35/2x45
Design
Build
Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.
Design
Power Source
ON-OFF/DT8.0/DT2.0/ TD/AD/BLE dim
Product Specifications
Filter Options
Filter By Color Temprature
Filter By Beam Angle
Filter By Wattage
Filter By Efficacy
Product Specifications
| Color Temperature (CCT) | Luminaire Dimension | Beam Angle | Wattage | Lumens | UGR | IP Rating | Efficacy | Product Code |
|---|---|---|---|---|---|---|---|---|
| 2200K | L 83 x H 69 | 35° | 19 W | 1276 lm | <9 | IP20 | 66 lm/W | Zona Magnus 4x Recessed 22K N |
| 2200K | L 83 x H 69 | 53° | 19 W | 1278 lm | <9 | IP20 | 67 lm/W | Zona Magnus 4x Recessed 22K M |
| 2200K | L 83 x H 69 | 85° | 19 W | 1297 lm | <9 | IP20 | 71 lm/W | Zona Magnus 4x Recessed 22K W |
| 2700K | L 83 x H 69 | 35° | 19 W | 1347 lm | <9 | IP20 | 70 lm/W | Zona Magnus 4x Recessed 27K N |
| 2700K | L 83 x H 69 | 53° | 19 W | 1431 lm | <16 | IP20 | 76 lm/W | Zona Magnus 4x Recessed 27K M |
| 2700K | L 83 x H 69 | 85° | 19 W | 1559 lm | <25 | IP20 | 81 lm/W | Zona Magnus 4x Recessed 27K W |
| 3000K | L 83 x H 69 | 35° | 19 W | 1531 lm | <16 | IP20 | 80 lm/W | Zona Magnus 4x Recessed 3K N 06 |
| 3000K | L 83 x H 69 | 53° | 19 W | 1624 lm | <16 | IP20 | 85 lm/W | Zona Magnus 4x Recessed 3K M 05 |
| 3000K | L 83 x H 69 | 85° | 19 W | 1706 lm | <26 | IP20 | 90 lm/W | Zona Magnus 4x Recessed 3K W 04 |
| 4000K | L 83 x H 69 | 36° | 19 W | 1680 lm | <9 | IP20 | 89 lm/W | Zona Magnus 4x Recessed 4K N 03 |
| 4000K | L 83 x H 69 | 53° | 19 W | 1757 lm | <14 | IP20 | 93 lm/W | Zona Magnus 4x Recessed 4K M 02 |
| 4000K | L 83 x H 69 | 86° | 19 W | 1834 lm | <26 | IP20 | 96 lm/W | Zona Magnus 4x Recessed 4K W 01 |
| 5700K | L 83 x H 69 | 35° | 19 W | 1574 lm | <9 | IP20 | 84 lm/W | Zona Magnus 4x Recessed 57K N |
| 5700K | L 83 x H 69 | 53° | 19 W | 1691 lm | <15 | IP20 | 88 lm/W | Zona Magnus 4x Recessed 57K M |
| 5700K | L 83 x H 69 | 85° | 19 W | 1758 lm | <24 | IP20 | 92 lm/W | Zona Magnus 4x Recessed 57K W |
Dimensions
