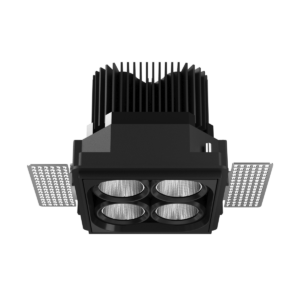

Zona Magnus Trimless 4x

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting.Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.

product families

Dimensions of the Fixture

Choose Your Perfect Finish


Choose Your

beam angle

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT)Luminaire DimensionBeam AngleWattageLumensUGRIP RatingEfficacyProduct Code
2700KL 78 x H 6935°19 W1347 lm<9IP2070 lm/WZona Magnus 4x Trimless 27K N
2700KL 78 x H 6953°19 W1431 lm<16IP2076 lm/WZona Magnus 4x Trimless 27K M
2700KL 78 x H 6985°19 W1559 lm<25IP2081 lm/WZona Magnus 4x Trimless 27K W
3000KL 78 x H 6935°19 W1531 lm<9IP2080 lm/WZona Magnus 4x Trimless 3K N 06
3000KL 78 x H 6953°19 W1624 lm<16IP2085 lm/WZona Magnus 4x Trimless 3K M 05
3000KL 78 x H 6985°19 W1706 lm<26IP2090 lm/WZona Magnus 4x Trimless 3K W 04
4000KL 78 x H 6936°19 W1680 lm<9IP2089 lm/WZona Magnus 4x Trimless 4K N 03
4000KL 78 x H 6953°19 W1757 lm<14IP2093 lm/WZona Magnus 4x Trimless 4K M 02
4000KL 78 x H 6986°19 W1834 lm<26IP2096 lm/WZona Magnus 4x Trimless 4K W 01
5700KL 78 x H 6935°19 W1574 lm<9IP2084 lm/WZona Magnus 4x Trimless 57K N
5700KL 78 x H 6953°19 W1691 lm<15IP2088 lm/WZona Magnus 4x Trimless 57K M
5700KL 78 x H 6985°19 W1758 lm<24IP2092 lm/WZona Magnus 4x Trimless 57K W

AceTech 2023

Location: Bombay Exhibition Centre, Goregaon

In-Store Asia

Location: Jio convention Centre, BKC

Mastering precision with Bartenbach

Location: Bartenbach GmbH, Austria

PL06822

/ Downloads

Technical Data

Photometric data: IES
