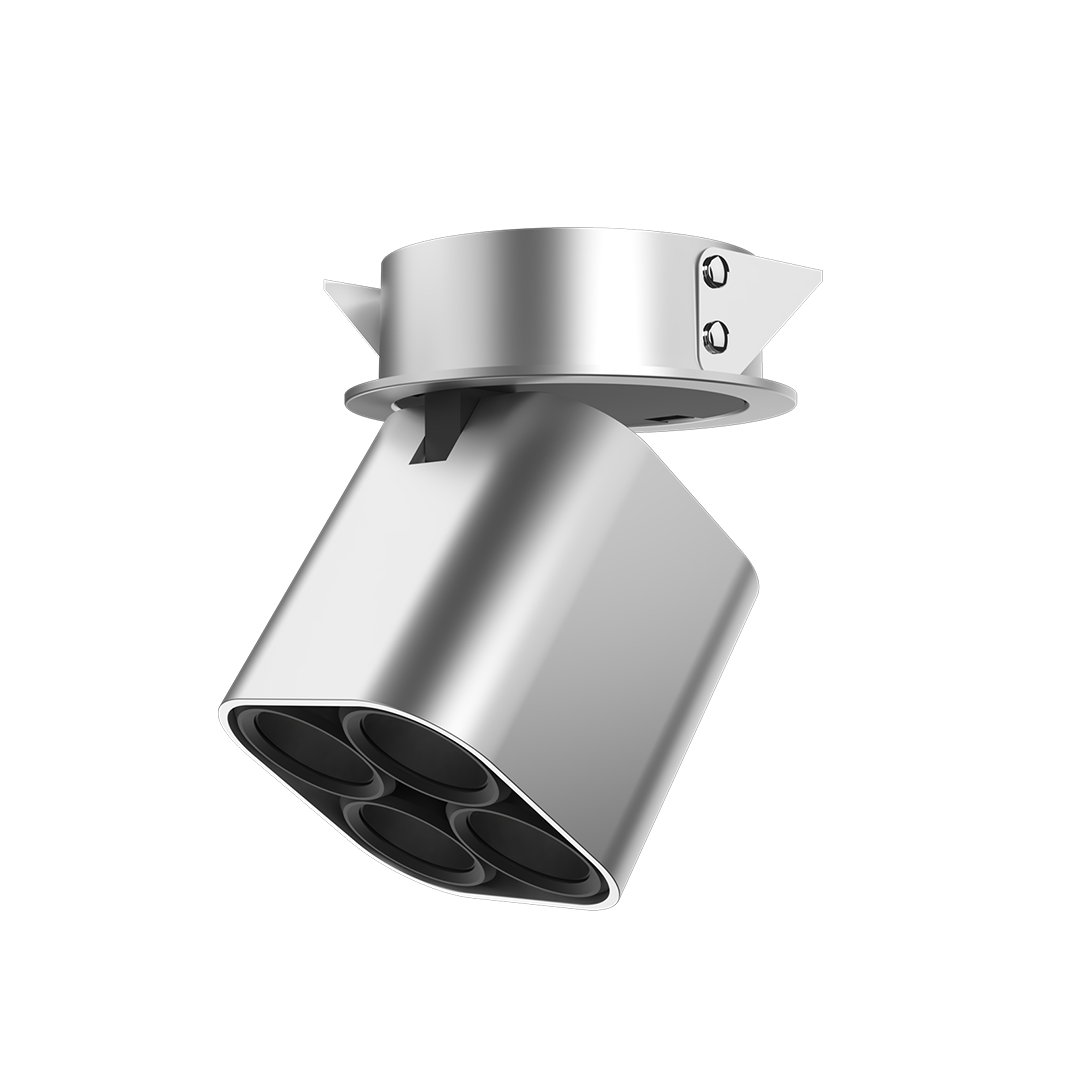

Magnus 4x Square Semi Recessed Superspot 4K

Magnus 4x Square Semi Recessed Superspot

700 mA

Introducing ceiling- semi recessed downlight that
highlight the desired subject or place and provide
optimum illumination by being nondescript.
The simplicity of its form provides smooth integration
in architectural features

Fixture Color Metallic Silver / Black / White IP Rating IP20
Color Temperature 4000K IK rating –
System Wattage 19 W Bining ≤3SDCM
System Lumens 1236 lm CRI >90
Efficacy 64 lm/W Life time L80/B10 (>50,000hrs@Ta-30°C)
DC Current 700 mA Driver Non Integrated
Efficiency  >92% Control On-Off/ Dali 2.0/BLE/AD/ TD
Beam Angle 16º Fixture Size L 87 x H 99
UGR <9 Cutout Ø 77 mm
Weight –



/ Downloads

Technical Data / Download IES / Revit Family

PL06822

/ Downloads

Technical Data

Technical drawing:2D

Data Sheet

Photometric data: IES

Photo selection
