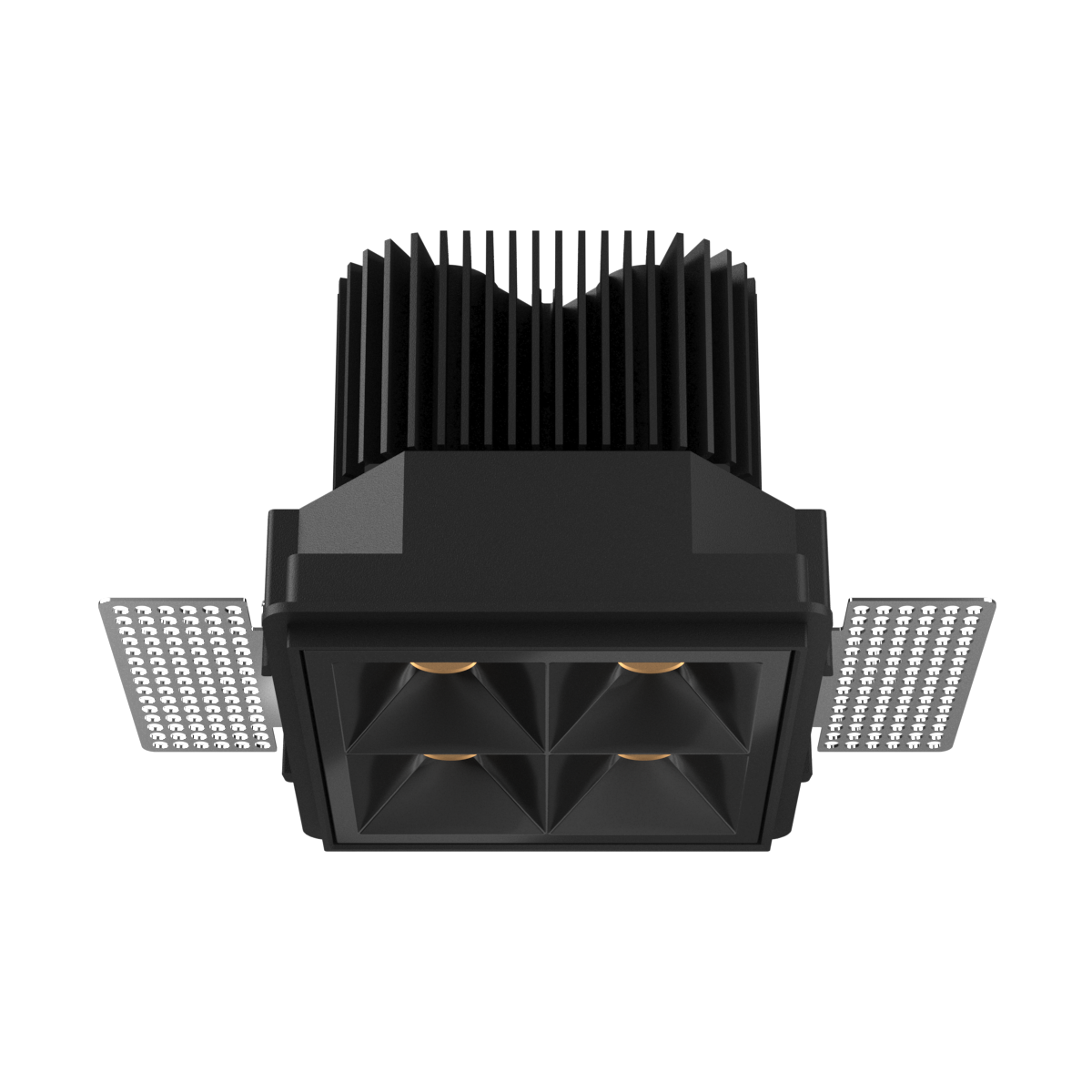

Zona Facia Square 4x Trimless 4K Narrow

Zona Facia Square 4x Trimless Narrow

700 mA

Introducing ceiling-recessed downlight that
highlight the desired subject or place and provide
optimum illumination by being nondescript.
The simplicity of its form provides smooth integration
in architectural features.

Fixture Color Black / White IP Rating IP20
Color Temperature 4000K IK rating
System Wattage 19 W Bining ≤3SDCM
System Lumens 1091lm CRI >90
Efficacy 57 lm/W Life time L80/B10 (>50,000hrs@Ta-30°C)
DC Current 700 mA Driver Non Integrated
Efficiency >75% Control On-Off/ Dali 2.0/ DT8.0/ BLE
Beam Angle 36º Fixture Size L 78 x H 69
UGR <0 Cutout
Weight



/ Downloads

PL06822

/ Downloads

Technical Data

Photometric data: IES
