Deeper M

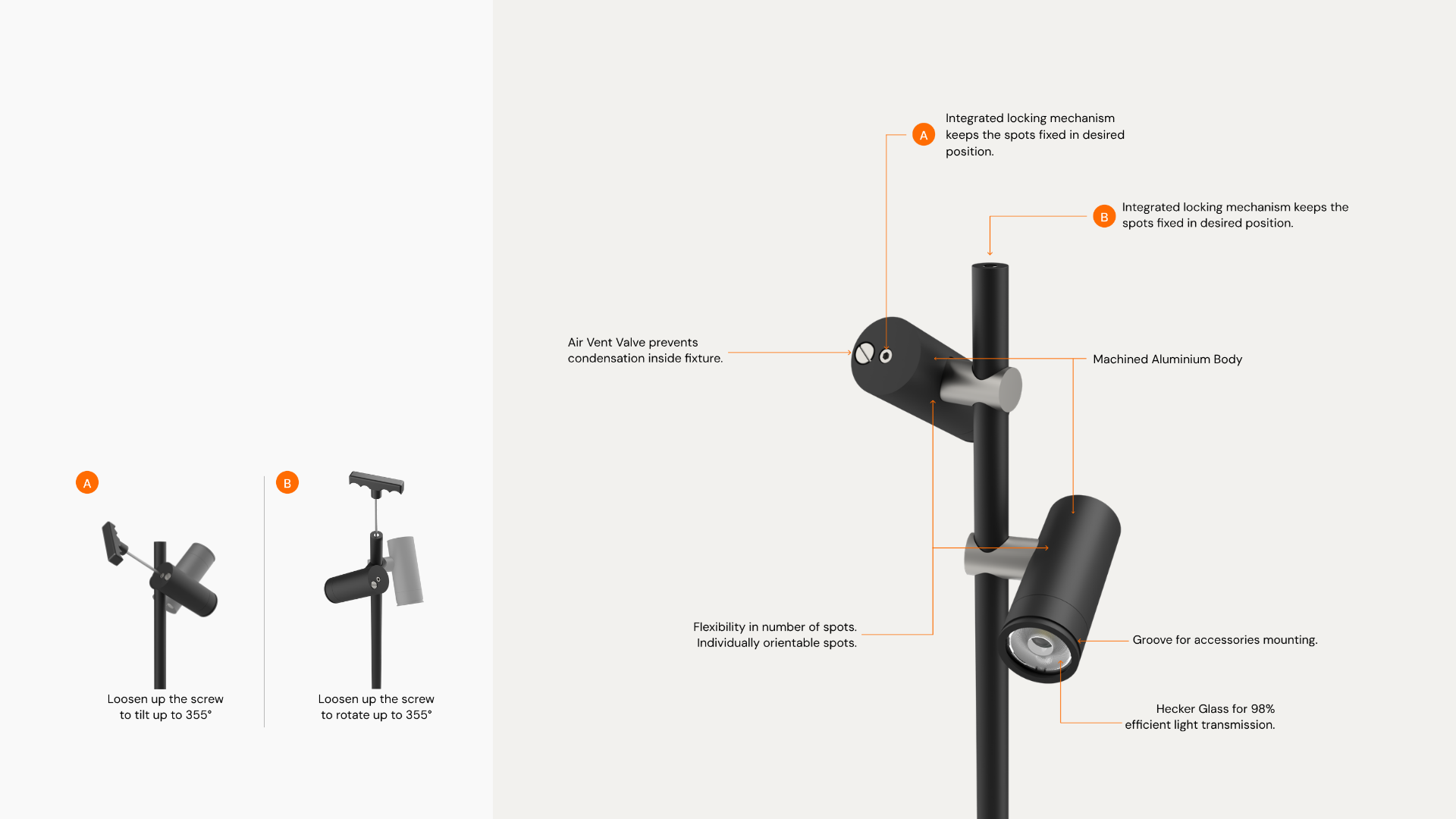

Deeper M is an IP67 body constructed with 26 mm optical aperture considering precise light distribution with long-term outdoor durability. Its lamp housing body can be tilted and swiveled around an off-centre arm axis from 0–355° and can be rotated too, also we can lock at any required position with help of stainless steel screws provided on back of lamp housing and top of the stand post. Special 98% transmittance AR coated toughness glass is used in front of optic which is fully flushed with front ring so that no dust or water deposited over the period of time and can be easily cleaned too! In order to prevent water moisture formation, the rear side of the lamp housing is provided with Air Vent Valve based on volume calculated. Deeper Body is made of pure form of aluminum CNC machined HE30 grade material which is useful easy to any anodized or custom RAL finishes. Fixture is provided with 4different beam angles, ultra narrow, medium, wide, elliptical.
Mounting
Finish
- Matte BlackRAL 9005
- Anthracite GreyRAL 7016
- Custom RAL
Dimensions
All values in inches| Component | ØDiameter | LLength | WWidth | HHeight |
|---|---|---|---|---|
| Fixture | 1.73"D | 4.09"L | 4.09"W | 8.27"H |
| Pole | 2.76"D2 | — | — | 27.56"H2 |
Architectural lighting, thoughtfully resolved.

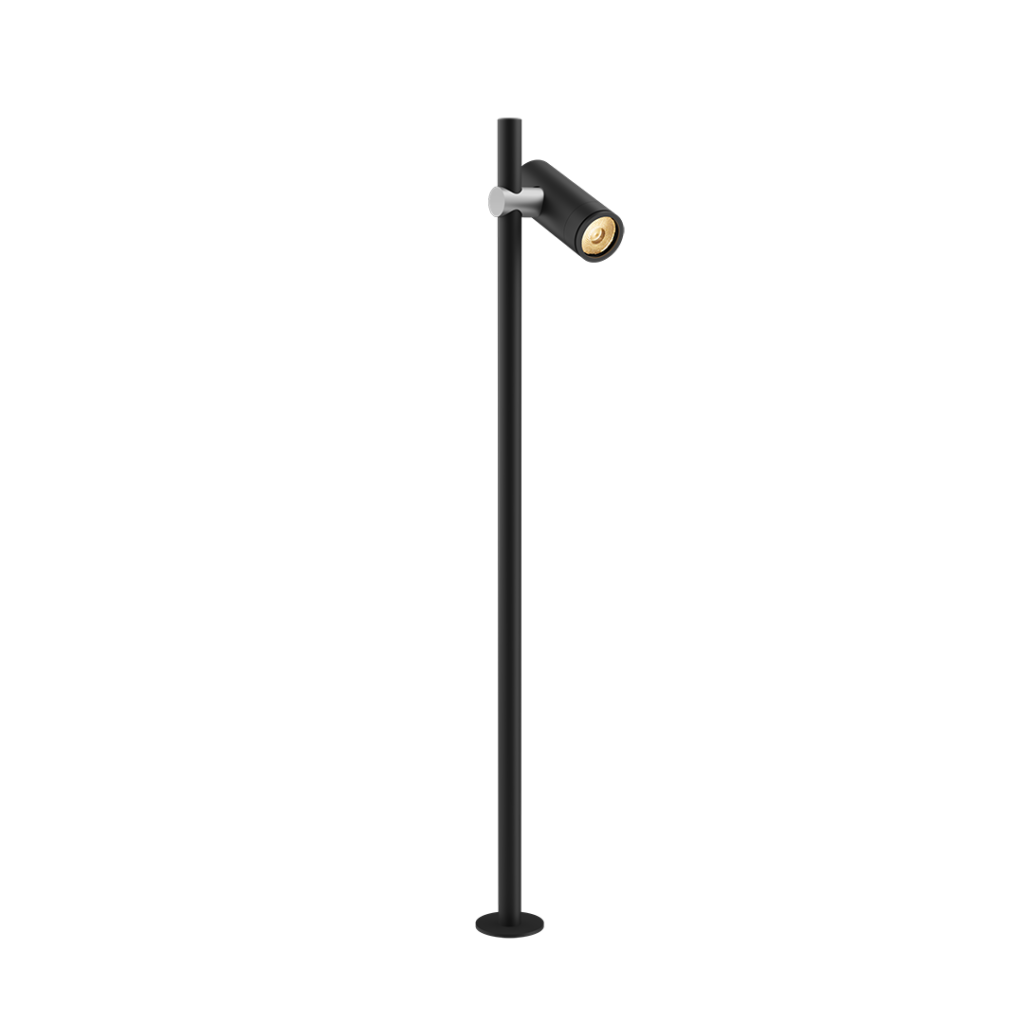

Deeper M is a precision-engineered outdoor bollard-mounted LED spotlight designed to deliver focused, glare-controlled illumination for landscape, gardens and architectural applications and enhance natures green trees, plantation.
Key Differentiators
Controlled Stray Light
Deep-set optics minimise glare and unwanted light spill.
Excellent Beam Uniformity
Consistent, even illumination across the beam.
Superior Optics
Precision-engineered lenses for clarity and purity of light.
High Visual Comfort
Low glare design for demanding architectural spaces.
Lens with unique microstructure
Optic used is designed with unique microstructure surface for near perfect colour uniformity and provide homogenous distribution.
- 1Better Uniformity
- 2Homogenous distribution
- 3Special Alu alloy with copper < 1% is used for fixture body construction.

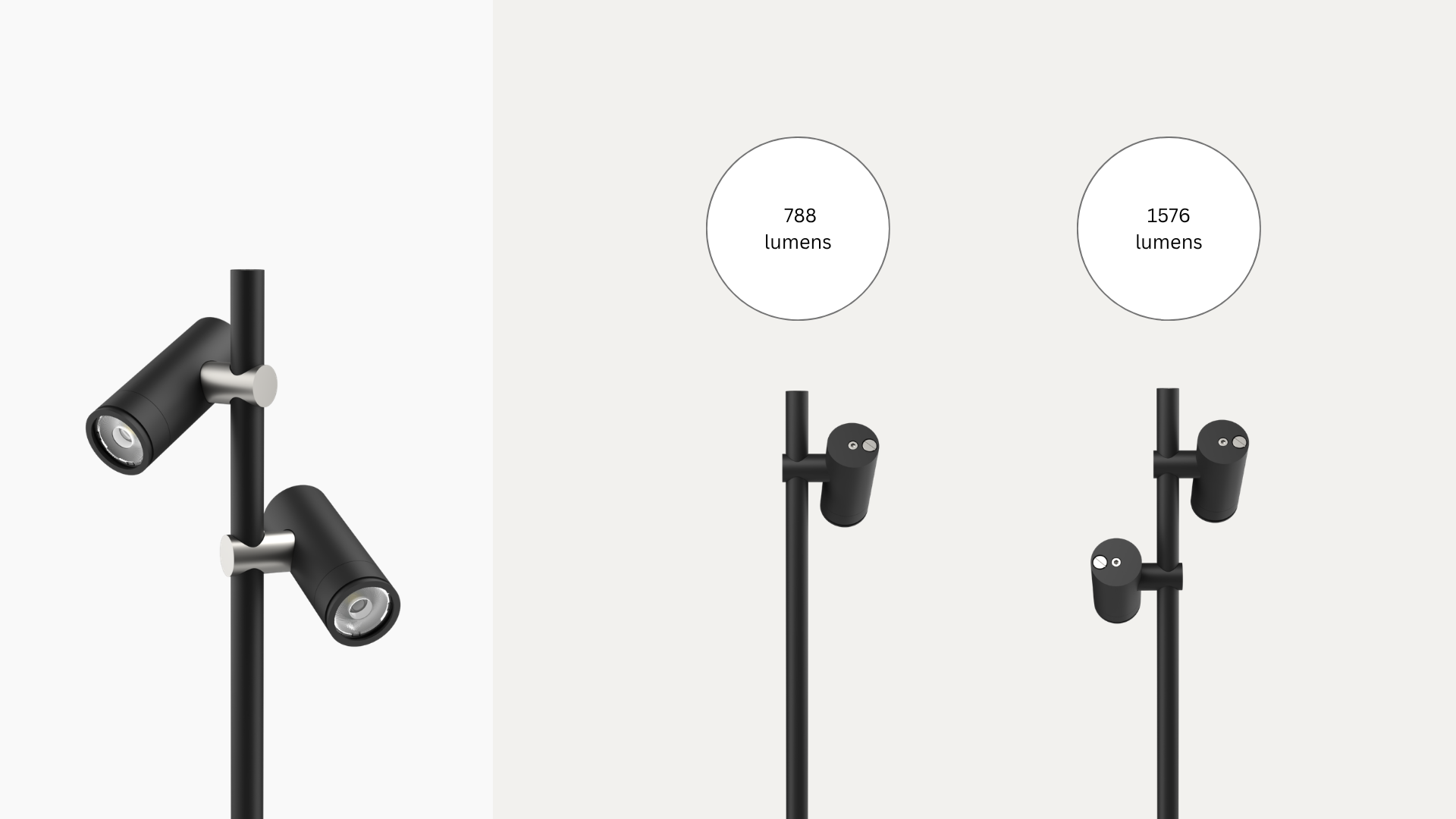

- 4Modularity to dual body on single stand post configuration is possible.
- 5Air Vent Valve provided to prevent moisture formation.
Tailored for every application.
12°FWHM
For precise lighting and highlighting details.
25°FWHM
Ideal for general lighting.
26°FWHM
Ideal for general lighting.
34°FWHM
Ideal for general lighting.
Performance in detail.
Comprehensive performance data for the Deeper M series. All values measured under standard test conditions per LM-79 and LM-80 protocols at 77°F ambient temperature.
Create your Light
Select your preferred specifications to generate your product code.
- Mounting
- Bollard
- CCT
- 3000K
- Beam Angle (FWHM)
- 12°
- CRI
- >90
- Driver Type
- Constant Current (CC)
- Controls
- Dali 2.0 (D)
- Finish
- Matte Black (RAL 9005)
- Accessories
- None (Standard)
- System Power
- 10 W
- Luminous Output
- 780 lm
