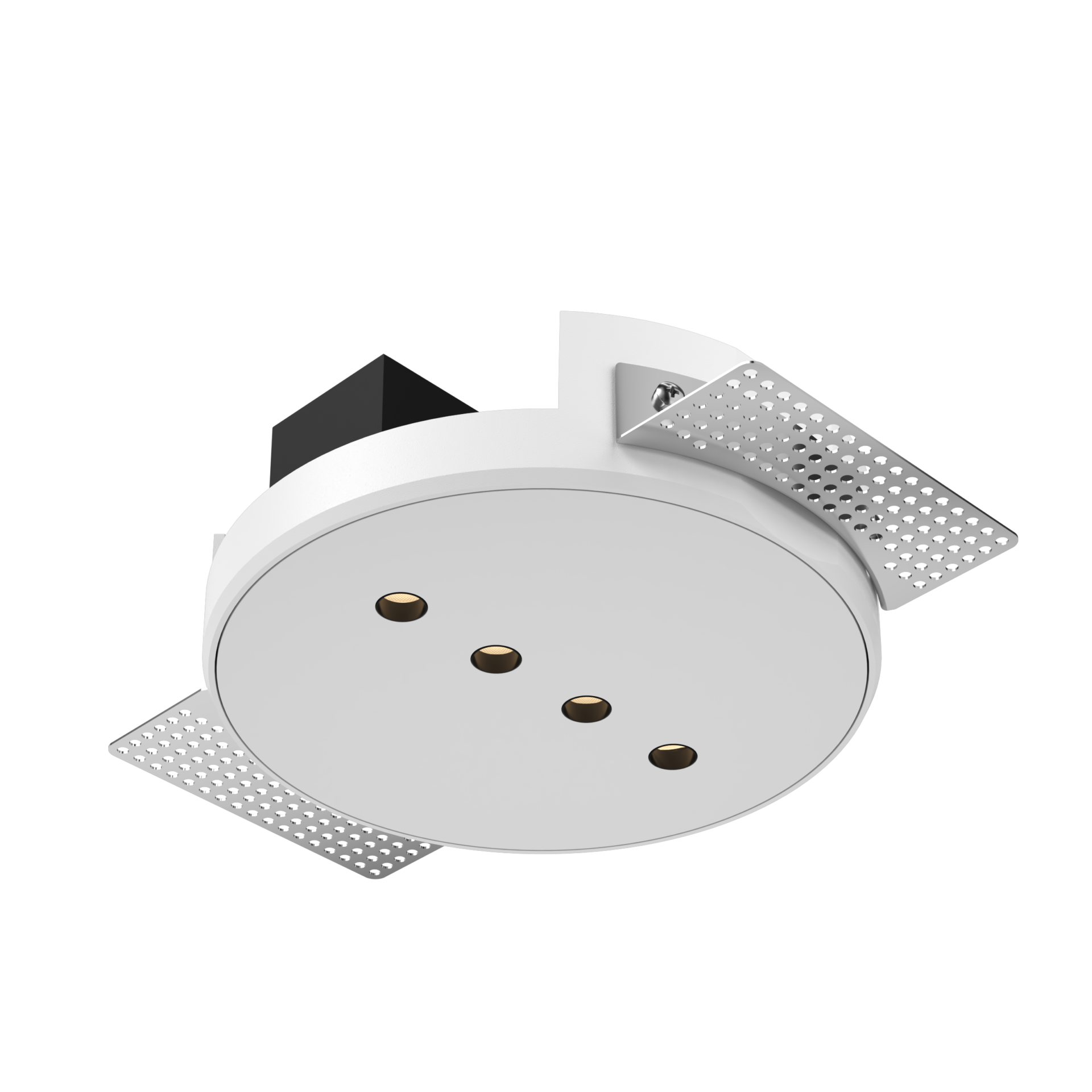

Nano 4x Downlighter

Nano 4x Downlighter
← Go Back

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Download TDS
2700K L 180 x H 133 35º 14W 602 lm <9 IP20 45 lm/W Nano 4X DL 10mm 27K N
2700K L 180 x H 133 52º 14W 691 lm <23 IP20 50 lm/W Nano 4X DL 10mm 27K W
2700K L 180 x H 133 31º 14W 781 lm <9 IP20 58 lm/W Nano 4X DL 13mm 27K N
2700K L 180 x H 133 49º 14W 854 lm <22 IP20 62 lm/W Nano 4X DL 13mm 27K W
3000K L 180 x H 133 35º 14W 651 lm <9 IP20 35 lm/W Nano 4X DL 10mm 3K N
3000K L 180 x H 133 52º 14W 726 lm <23 IP20 55 lm/W Nano 4X DL 10mm 3K W
3000K L 180 x H 133 31º 14W 842 lm <9 IP20 60 lm/W Nano 4X DL 13mm 3K N
3000K L 180 x H 133 49º 14W 821 lm <22 IP20 59 lm/W Nano 4X DL 13mm 3K W
4000K L 180 x H 133 35º 14W 698 lm <9 IP20 51 lm/W Nano 4X DL 10mm 4K N
4000K L 180 x H 133 52º 14W 780 lm <23 IP20 58 lm/W Nano 4X DL 10mm 4K W
4000K L 180 x H 133 31º 14W 927 lm <9 IP20 66 lm/W Nano 4X DL 13mm 4K N
4000K L 180 x H 133 49º 14W 927 lm <22 IP20 66 lm/W Nano 4X DL 13mm 4K W
5700K L 180 x H 133 35º 14W 738 lm <9 IP20 56 lm/W Nano 4X DL 10mm 57K N
5700K L 180 x H 133 52º 14W 837 lm <23 IP20 63 lm/W Nano 4X DL 10mm 57K W
5700K L 180 x H 133 31º 14W 906 lm <9 IP20 68 lm/W Nano 4X DL 13mm 57K N
5700K L 180 x H 133 49º 14W 930 lm <9 IP20 70 lm/W Nano 4X DL 13mm 57K W

PL06822

/ Downloads

Technical Data

Technical drawing:2D

Data Sheet

Photometric data: IES

Photo selection

Choose your Perfect Finish

Explore the full range of finishes available for the product

Solid

white
White
black
Black
Satin smooth RAL1013
Satin smooth RAL1013
Satin smooth RAL1015
Satin smooth RAL1015
Satin smooth RAL7032
Satin smooth RAL7032
Satin smooth RAL7035
Satin smooth RAL7035
Satin smooth RAL7038
Satin smooth RAL7038
Satin smooth RAL7037
Satin smooth RAL7037
Satin smooth RAL7006
Satin smooth RAL7006
Satin smooth RAL7022
Satin smooth RAL7022
Satin smooth RAL7016
Satin smooth RAL7016
texture Schueco Grey Fine
texture Schueco Grey Fine
Matt smooth RAL7031
Matt smooth RAL7031
Matt smooth RAL7012
Matt smooth RAL7012
Matt smooth RAL7043
Matt smooth RAL7043
Matt smooth RAL7024
Matt smooth RAL7024
Matt smooth RAL7015
Matt smooth RAL7015
Satin smooth RAL8017
Satin smooth RAL8017
Matt smooth RAL9005
Matt smooth RAL9005
Satin smooth RAL8004
Satin smooth RAL8004
Satin smooth RAL9003
Satin smooth RAL9003
Satin smooth RAL9016
Satin smooth RAL9016
Satin smooth RAL9010
Satin smooth RAL9010
Matt smooth RAL7047
Matt smooth RAL7047
Satin smooth RAL9002
Satin smooth RAL9002
Matt smooth RAL7030
Matt smooth RAL7030
Matt smooth RAL7011
Matt smooth RAL7011
Matt smooth RAL7012
Matt smooth RAL7012
Matt smooth RAL7043
Matt smooth RAL7043
Satin smooth RAL7021
Satin smooth RAL7021
Matt smooth RAL9005
Matt smooth RAL9005

Metallic

Satin RAL9022
Satin RAL9022
Satin RAL9006
Satin RAL9006
Satin RAL9007
Satin RAL9007
Satin RAL7001
Satin RAL7001
Texture RAL9023
Texture RAL9023
Texture Veranda 25
Texture Veranda
Satin Metro Gold
Satin Metro Gold
Satin RAL1035
Satin RAL1035
Texture 2500 MT Gray
Texture 2500 MT Gray
Texture 2600 Sable
Texture 2600 Sable
Texture 2900 MT Gray
Texture 2900 MT Gray
Texture Anodic Bronze
Texture Anodic Bronze
Texture Noir 2200 Sable
Texture Noir 2200 Sable
Texture Sparkle Grey
Texture Sparkle Grey
Texture Anodic Bronze III
Texture Anodic Bronze III
Texture Dark Gray
Texture Dark Gray
Texture Veranda 22
Texture Veranda 22
Matt Chocolate Brown
Matt Chocolate Brown

Special Finishes

Texture White Stone (1)
Texture White Stone
Texture Sand Stone (1) r1
Texture Sand Stone
Texture Dark Grey Natural Concrete r1
Texture Dark Grey Natural Concrete
Texture Red Brick r1
Texture Red Brick
