Nano

Nano 8X Bidirectional Downlight Wall washer

With asymmetric beam angles, the Nano Wallwasher + Downlight Bidirectional provides smooth wallwashing and downlighting in opposing directions. Rich, realistic colors are brought out by its high CRI of 90+, and even, glare-free light is guaranteed by its sophisticated FWTM beam management. Modern areas that require balanced, high-performance lighting will benefit greatly from Nano Bidirectional’s UGR<9 for improved visual comfort and optional 1SDCM for constant color quality.

UGR
<9

APERTURE SIZE
13 mm

EFFICACY
57 lm/W

CRI
90+

BEAM ANGLES
Asymmetric

High Efficiency

Utilizing advanced LED technology, Perdu lights deliver superior brightness while significantly reducing power usage. This also helps contribute to a greener environment by minimizing carbon footprint.

High Uniformity

Precision-engineered optics and high-quality LEDs work together to eliminate dark spots and glare, creating an ideal environment where clarity and consistency are paramount.

Architecturally integrated

The minimalist design allows Perdu to become an unobtrusive part of the ceiling, maintaining the clean lines between elegance in simplicity and sophistication of the space.

Miniature Aperture

The miniature aperture size ensures that the light source remains discreet while delivering powerful illumination exactly where it’s needed, which allows for precise and focused lighting effects.

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

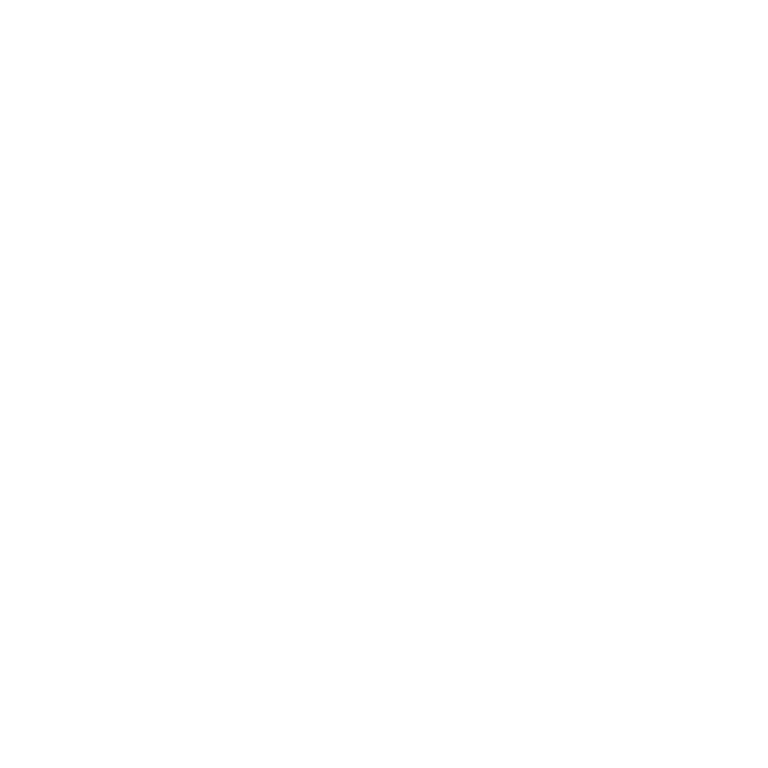

Cutout = Ø 133 mm
All dimensions are in mm.

Choose your Perfect Finish

Explore the full range of finishes available for the product

AceTech 2023

Location: Bombay Exhibition Centre, Goregaon

In-Store Asia

Location: Jio convention Centre, BKC

Mastering precision with Bartenbach

Location: Bartenbach GmbH, Austria

PL06822

/ Downloads

Technical Data

Photometric data: IES
