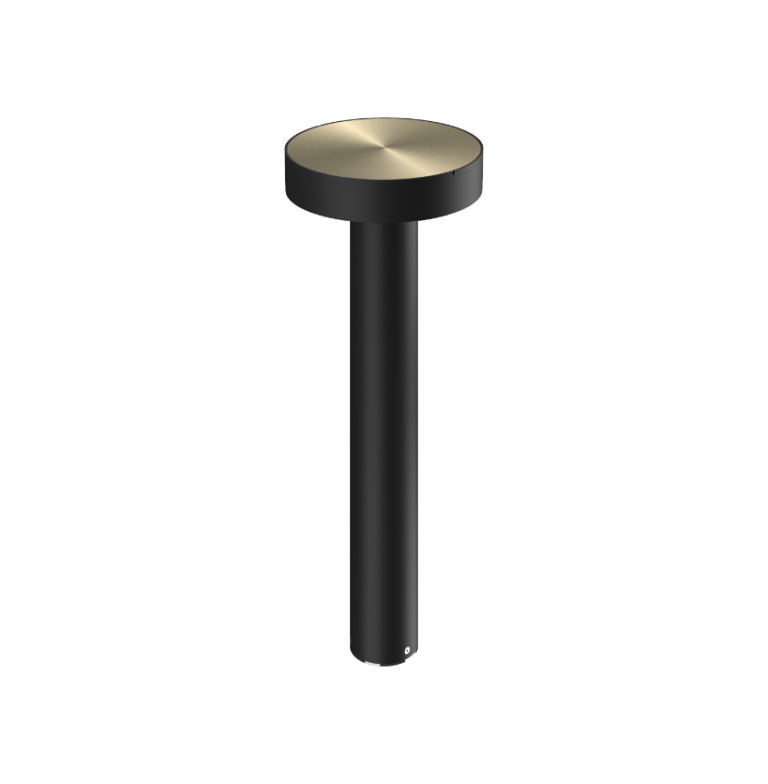

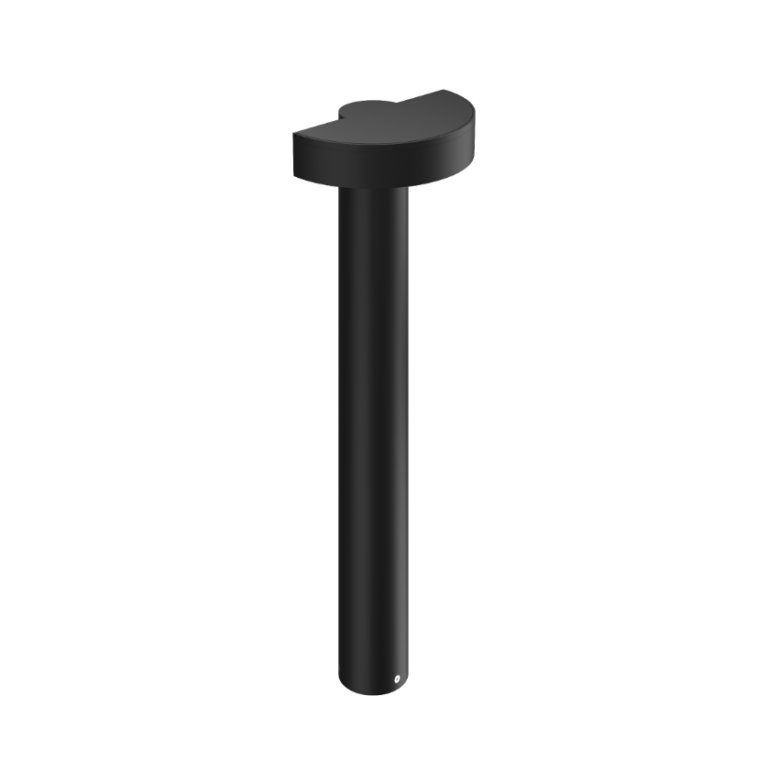

The Rotor outdoor light pole is engineered for superior durability with an IP_ rating and an IK7 rating. Designed to perform reliably in various environmental conditions, ensuring protection against dust and water. Perfect for outdoor environments, the Rotor ensures effective lighting over extended distances.
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
Design
Optics
Elevate your lighting experience with our top-of-the-line optic! With optimized longitudinal glare control and precise cut-off, you get exceptional uniformity and high efficiency. The optic delivers seamless color mixing within a single reflector cell, available in dynamic white and RGBW options. Perfect for a diverse range of applications—whether it's wall washing, ceiling washing, area illumination, facade lighting, space and bollard luminaires, or road lighting this optic excels across the board. With dimensions of 48 mm x 36 mm x 13 mm (L/W/H) and a system efficiency of 85%, it offers a beam angle of 2x45° in the longitudinal direction and 85° in the lateral direction. Transform your lighting setup with precision and style!
Design
Build
Fixture housing is made from a pressure die-cast lamp body combined with an extruded aluminum pole. The materials used have less than 1% copper content, ensuring durability and uniform quality. The fixture is coated with a special outdoor-grade powder coating in RAL7016, RAL7002, or RAL9005 colors. This coating has been tested to withstand 1,000 hours of salt spray, providing excellent resistance to harsh environmental conditions.
Design
Power Source
High-power SMD LED modules with exceptional color consistency (3 SDCM) and a lifespan exceeding 50,000 hours (L80/B10) are available. CRI options include >80 and >90. CCT ranges include 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, and 5700K.
Location: Bartenbach GmbH, Austria
