Zona

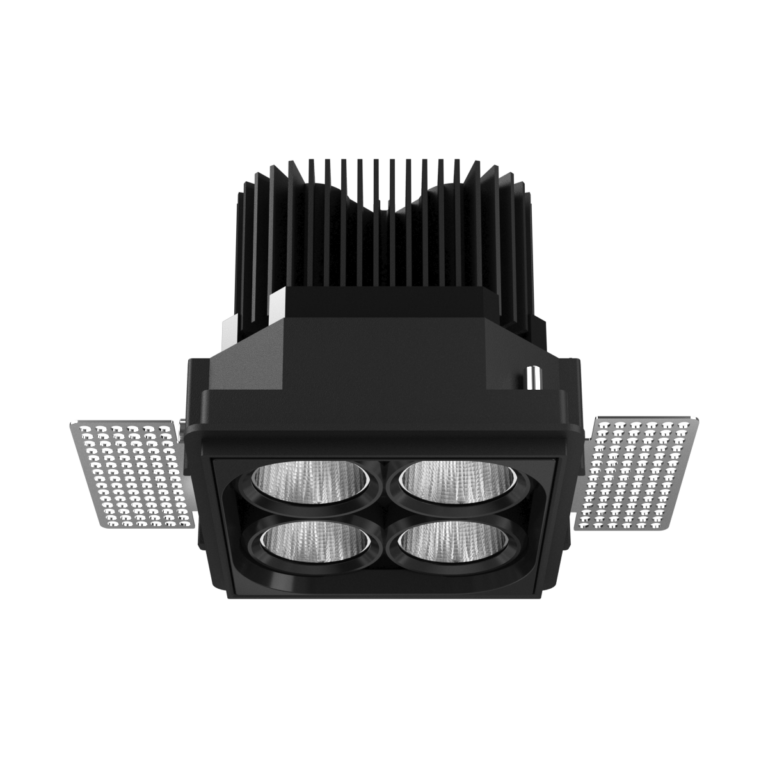

The Zona Magnus is a sleek, recessed, trimless fixture available in round, linear, and square designs. Featuring a low UGR of less than 10, it offers dimmable and tuneable functionality with BLE and DALI drivers for optimal control and flexibility.

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

The optic features a complex surface design that enables a wide range of light distributions, enhanced by micro facets that ensure even light spread and reduce glare. Utilizing high-precision injection moulding, it achieves superior performance and control, while its highly reflective coating, with up to 90% reflectance, maximizes efficiency. This makes it ideal for applications in high room heights, office environments, and traffic zones, including corridors and shopping centres, as well as in spaces with lower ceilings.

Design

Build

The fixture housing is made from ADC12 aluminum pressure die-cast and finished with a special PPG powder coating that resists yellowing for up to 10 years. Its mounting design is optimized for easy installation.

Design

Power Source

High-power SMD LED modules with exceptional color consistency (3 SDCM) and a lifespan exceeding 50,000 hours (L80/B10) are available. CRI options include >80 and >90. CCT ranges include 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, and tunable white (2200K-5700K).

Gallery

PL06822

Zona

Zona

/ Downloads

Technical Data

Photometric data: IES
