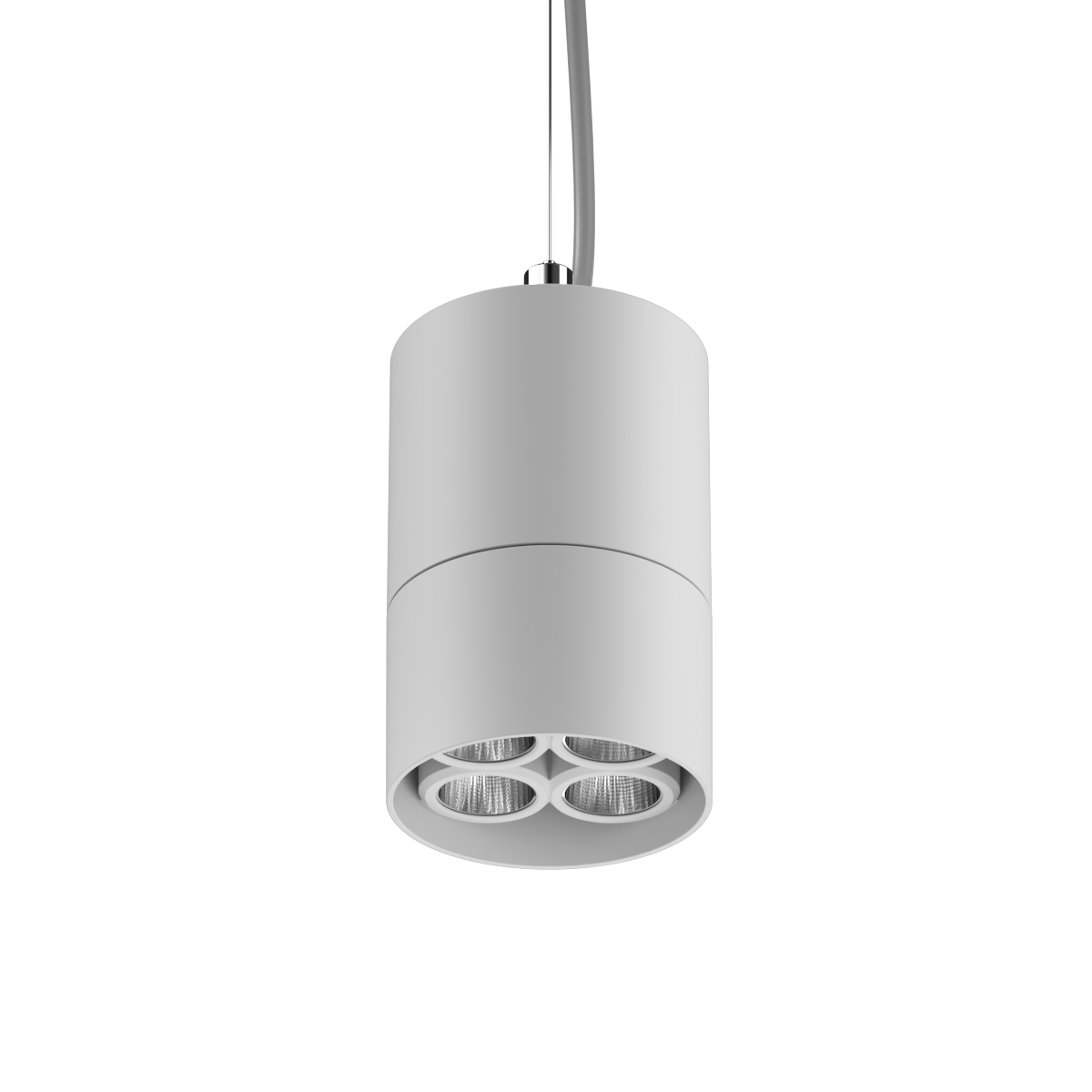

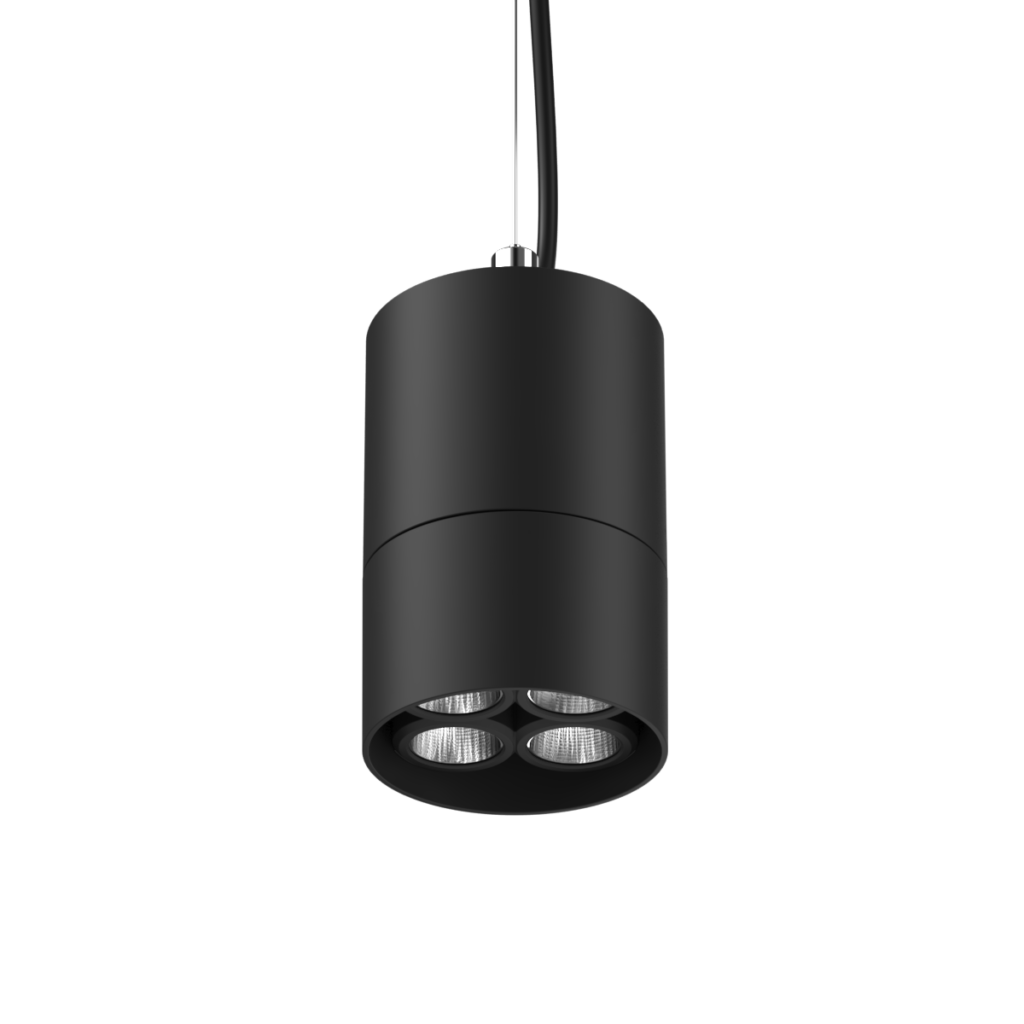

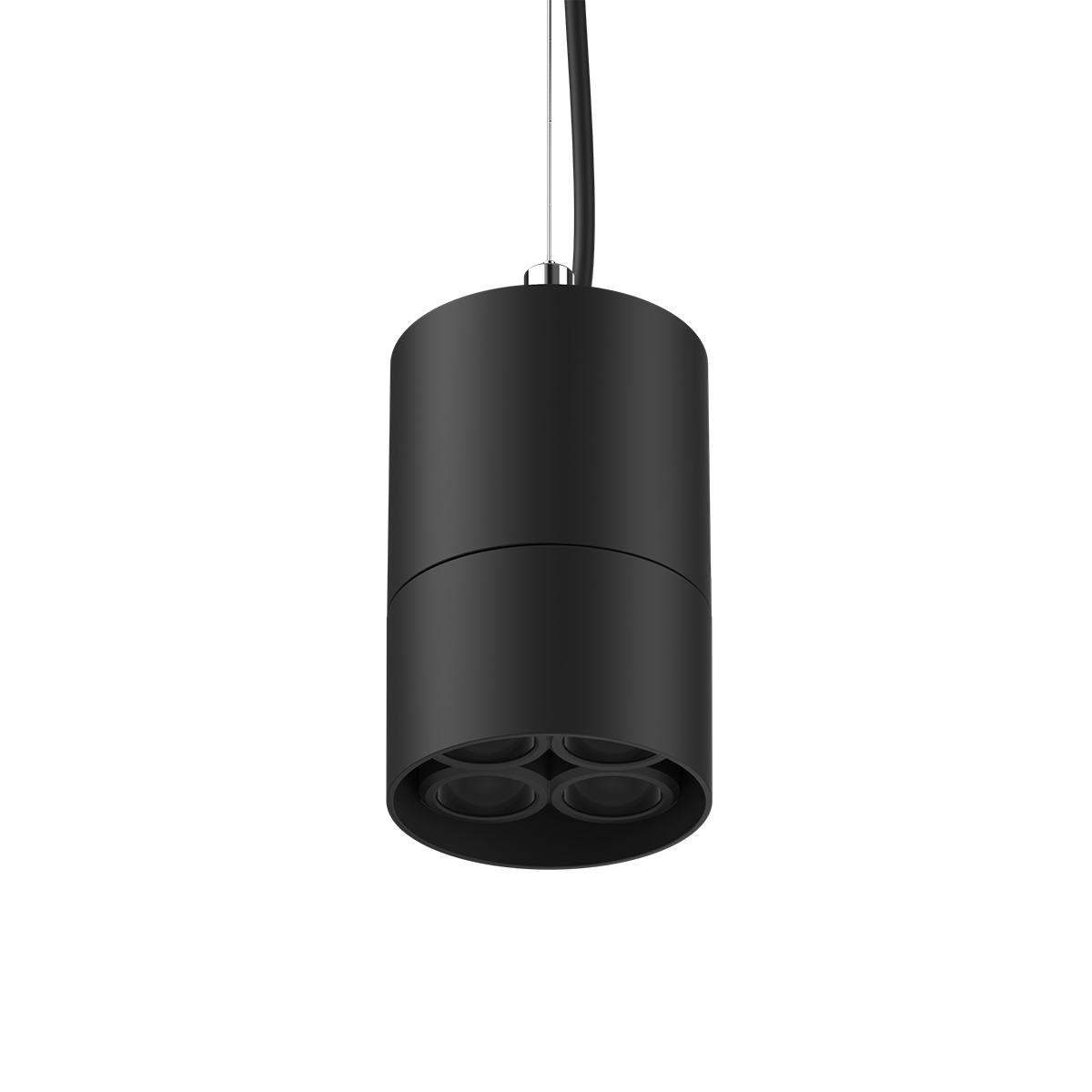

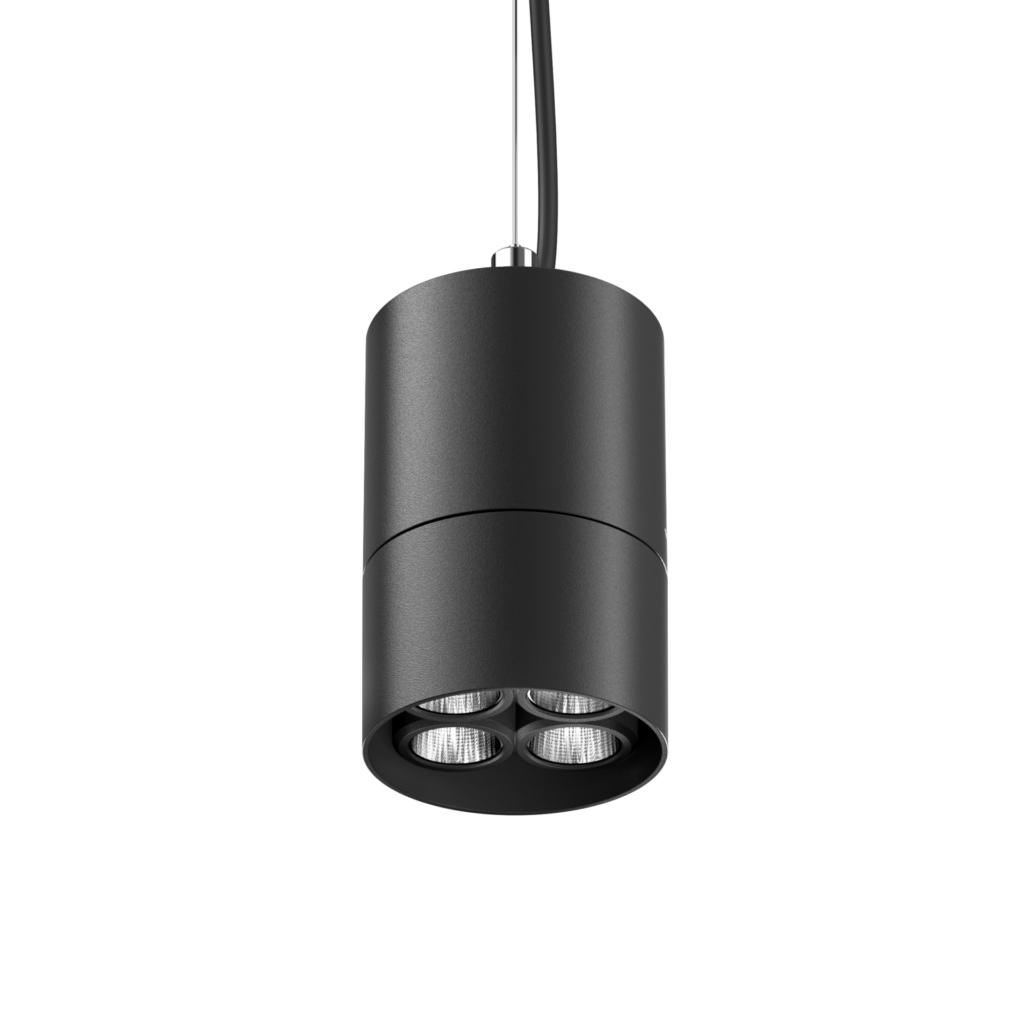

Array Pendant 4X

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.
Display Image
Display Image

Array Pendant 4X

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area. Beam angle is 2x25/2x35/2x45

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

ON-OFF/DT8.0/DT2.0/ TD/AD/BLE dim

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Array 4x Pendant Downlight 57K Wide

Color Temperature (CCT)

5700K

Luminaire Dimension

-

Beam Angle

85°

Wattage

24 W

Lumens

2419 lm

UGR

<27

IP Rating

IP20
Array 4x Pendant Downlight 57K Medium

Color Temperature (CCT)

5700K

Luminaire Dimension

-

Beam Angle

51°

Wattage

24 W

Lumens

2350 lm

UGR

<18

IP Rating

IP20
Array 4x Pendant Downlight 57K Narrow

Color Temperature (CCT)

5700K

Luminaire Dimension

-

Beam Angle

35°

Wattage

24 W

Lumens

2196 lm

UGR

<9

IP Rating

IP20
Array 4x Pendant Downlight 27K Wide

Color Temperature (CCT)

2700K

Luminaire Dimension

-

Beam Angle

85°

Wattage

24 W

Lumens

1993 lm

UGR

<26

IP Rating

IP20
Array 4x Pendant Downlight 27K Medium

Color Temperature (CCT)

2700K

Luminaire Dimension

-

Beam Angle

51°

Wattage

24 W

Lumens

1886 lm

UGR

<18

IP Rating

IP20
Array 4x Pendant Downlight 27K Narrow

Color Temperature (CCT)

2700K

Luminaire Dimension

-

Beam Angle

35°

Wattage

24 W

Lumens

1770 lm

UGR

<9

IP Rating

IP20
Array 4x Pendant Downlight 3K Narrow

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

35°

Wattage

24 W

Lumens

1887 lm

UGR

<1

IP Rating

IP20
Array 4x Pendant Downlight 3K Medium

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

51°

Wattage

24 W

Lumens

2013 lm

UGR

<14

IP Rating

IP20
Array 4x Pendant Downlight 3K Wide

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

85°

Wattage

24 W

Lumens

2125 lm

UGR

<26

IP Rating

IP20
Array 4x Pendant Downlight 4K Narrow

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

35°

Wattage

24 W

Lumens

2121 lm

UGR

<1

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Product Code
5700K - 85° 24 W 2419 lm <27 IP20 101 lm/W Array 4x Pendant Downlight 57K W
5700K - 51° 24 W 2350 lm <18 IP20 96 lm/W Array 4x Pendant Downlight 57K M
5700K - 35° 24 W 2196 lm <9 IP20 92 lm/W Array 4x Pendant Downlight 57K N
4000K - 85° 24 W 2292 lm <26 IP20 95 lm/W Array 4x Pendant Downlight 4K W 01
4000K - 51° 24 W 2248 lm <17 IP20 94 lm/W Array 4x Pendant Downlight 4K M 02
4000K - 35° 24 W 2121 lm <9 IP20 89 lm/W Array 4x Pendant Downlight 4K N 03
3000K - 85° 24 W 2125 lm <25 IP20 88 lm/W Array 4x Pendant Downlight 3K W 04
3000K - 51° 24 W 2013 lm <14 IP20 83 lm/W Array 4x Pendant Downlight 3K M 05
3000K - 35° 24 W 1887 lm <9 IP20 79 lm/W Array 4x Pendant Downlight 3K N 06
2700K - 85° 24 W 1993 lm <27 IP20 81 lm/W Array 4x Pendant Downlight 27K W
2700K - 51° 24 W 1886 lm <18 IP20 79 lm/W Array 4x Pendant Downlight 27K M
2700K - 85° 24 W 1993 lm <27 IP20 81 lm/W Array 4x Pendant Downlight 27K N

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
