Axis S Adjustable Trimless

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.

This product is currently out of stock and unavailable.

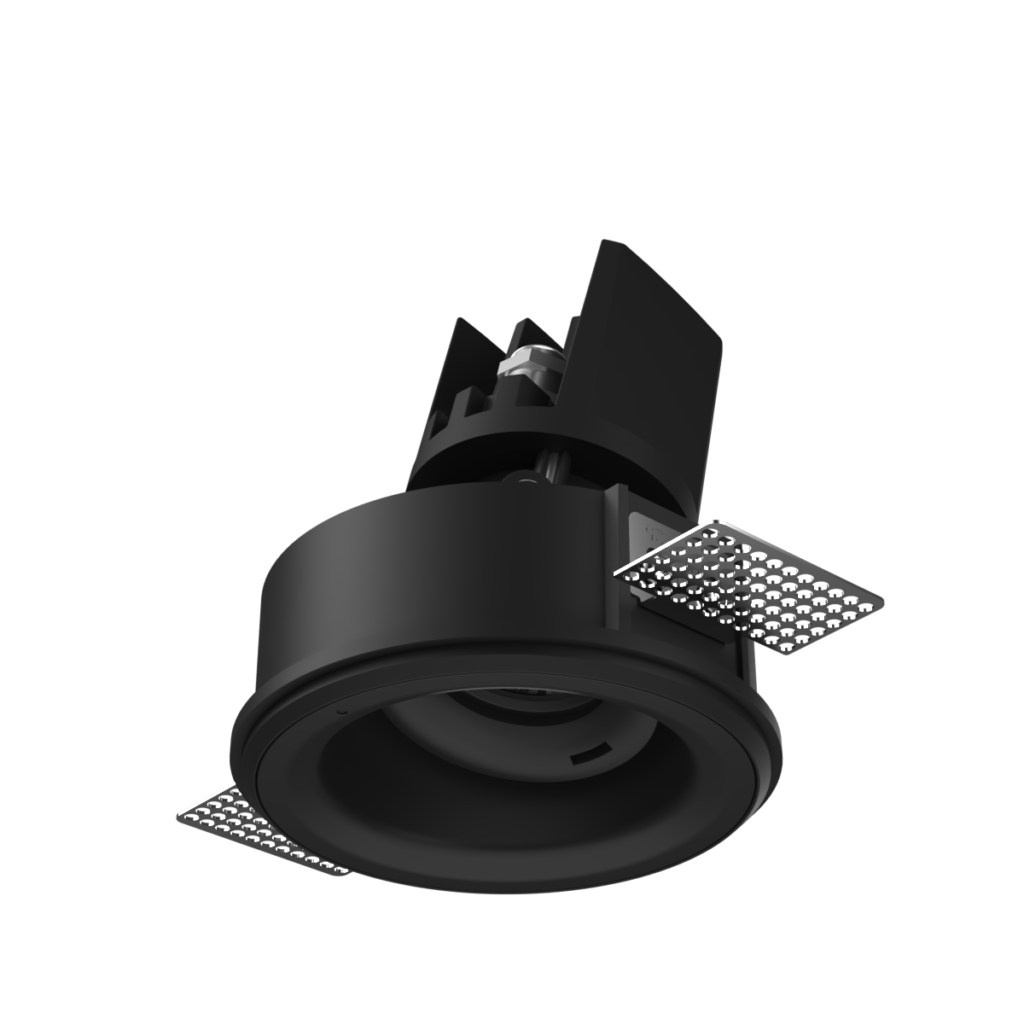

Display Image
Display Image

Axis S Adjustable Trimless

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area. Beam angle is 2x25/2x35

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

ON-OFF/Dali 2.0/ TD/AD/BLE dim

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Axis S Adjustable Trimless 27K Narrow

Color Temperature (CCT)

2700K

Luminaire Dimension

L 86 x H 101

Beam Angle

24°

Wattage

12 W

Lumens

497 lm

UGR

<6

IP Rating

IP20
Axis S Adjustable Trimless 27K Medium

Color Temperature (CCT)

2700K

Luminaire Dimension

L 86 x H 101

Beam Angle

34°

Wattage

12 W

Lumens

672 lm

UGR

<13

IP Rating

IP20
Axis S Adjustable Trimless 3K Narrow

Color Temperature (CCT)

3000K

Luminaire Dimension

L 86 x H 101

Beam Angle

33°

Wattage

13 W

Lumens

772 lm

UGR

<1

IP Rating

IP20
Axis S Adjustable Trimless 3K Medium

Color Temperature (CCT)

3000K

Luminaire Dimension

L 86 x H 101

Beam Angle

50°

Wattage

13 W

Lumens

769 lm

UGR

<19

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Product Code
3000K L 86 x H 101 50° 13 W 769 lm <19 IP20 60 lm/W Axis S Adjustable Trimless 3K M 01
3000K L 86 x H 101 33° 13 W 772 lm <1 IP20 61 lm/W Axis S Adjustable Trimless 3K N 02
2700K L 86 x H 101 34° 12 W 672 lm <13 IP20 57 lm/W Axis S Adjustable Trimless 27K M 03
2700K L 86 x H 101 24° 12 W 497 lm <6 IP20 43 lm/W Axis S Adjustable Trimless 27K N 04

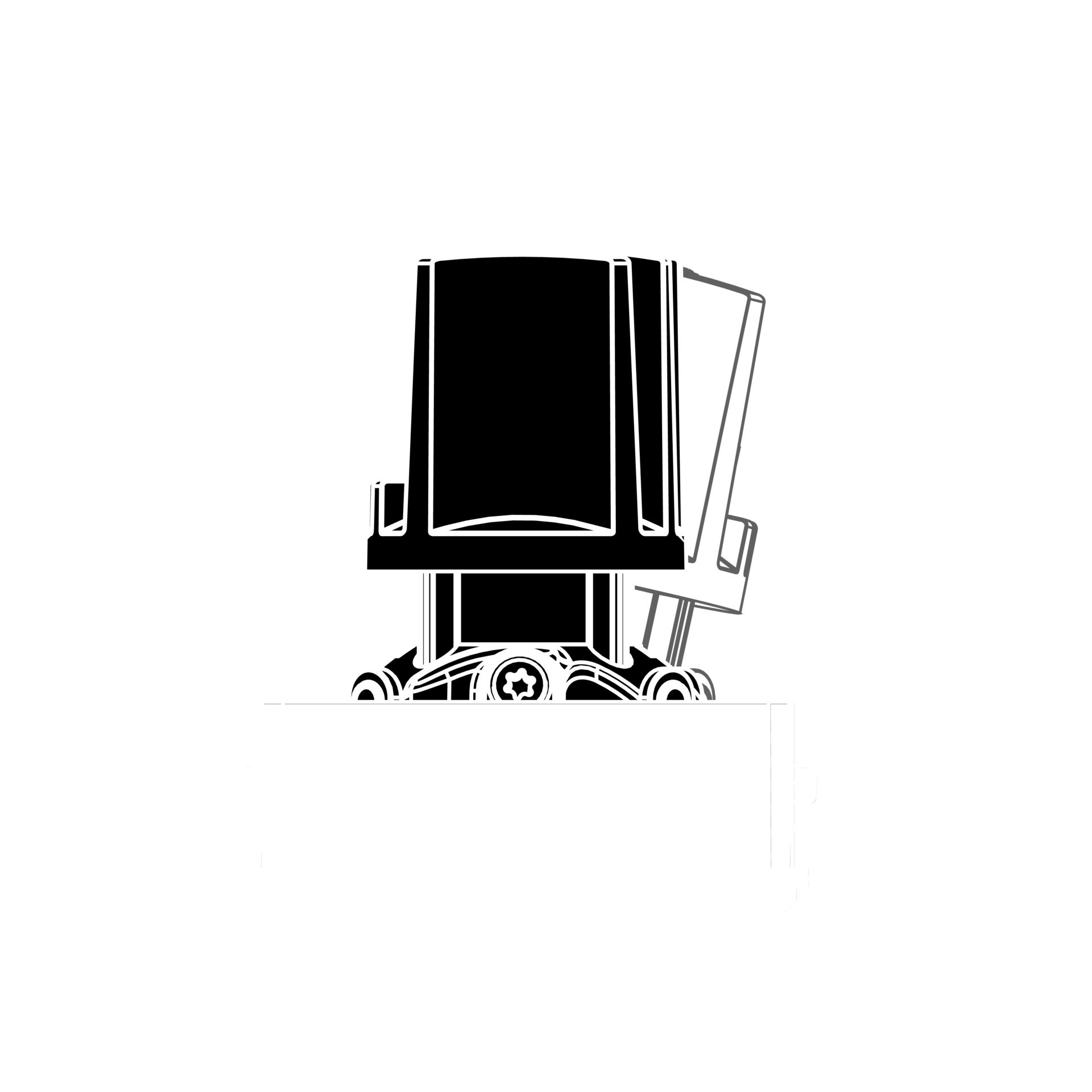

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
