Product Description
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
Design
Optics
Lens based optics are designed to have uniformity and high efficiency and complete glare free effect! The lens faceted structure is design to collimate and distribute the light through min apperture size of 10mm. Option for Beam angle(FWHM) is 2x12deg(new yet to add)/2x17deg/2x30deg
Design
Build

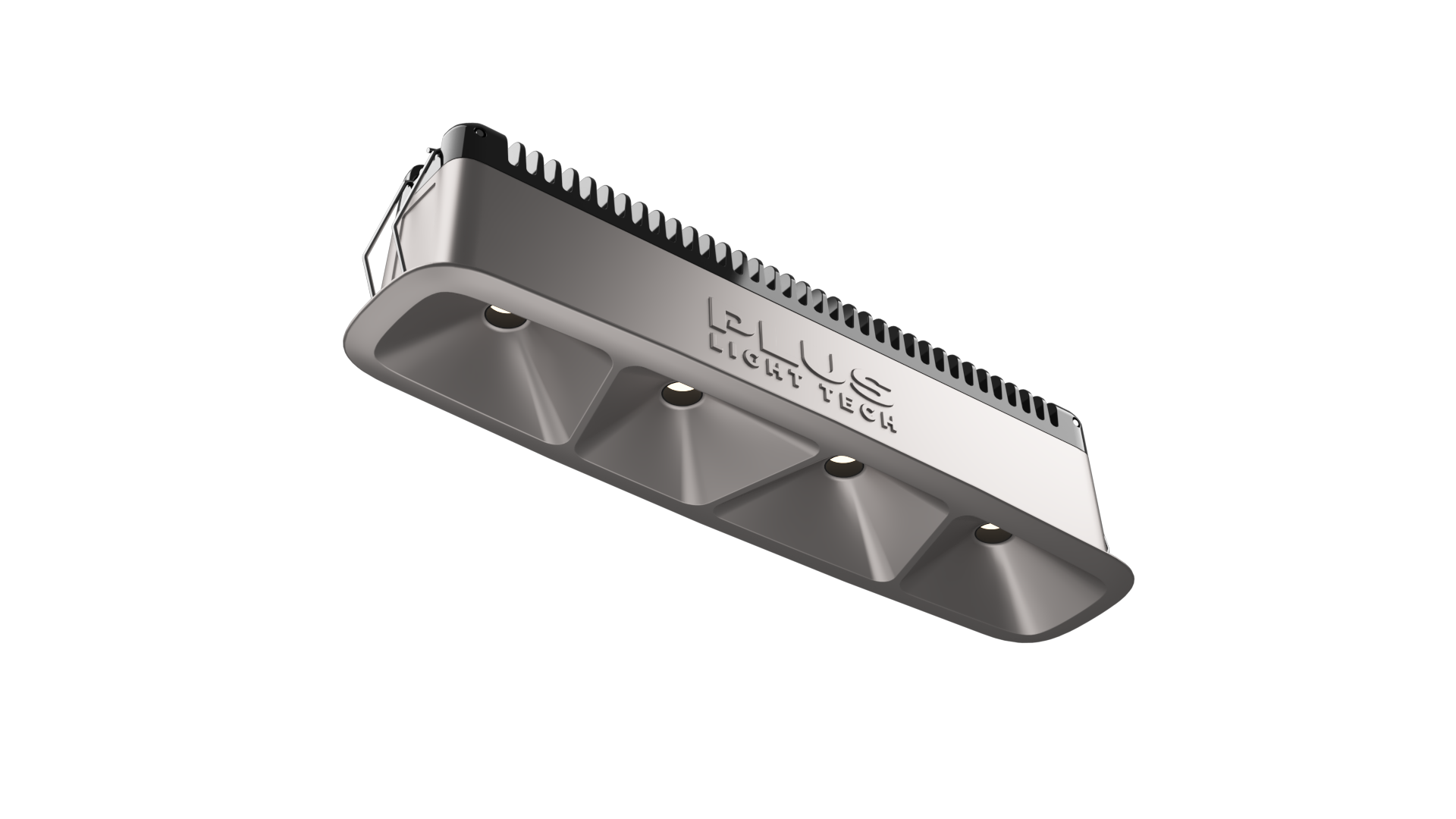

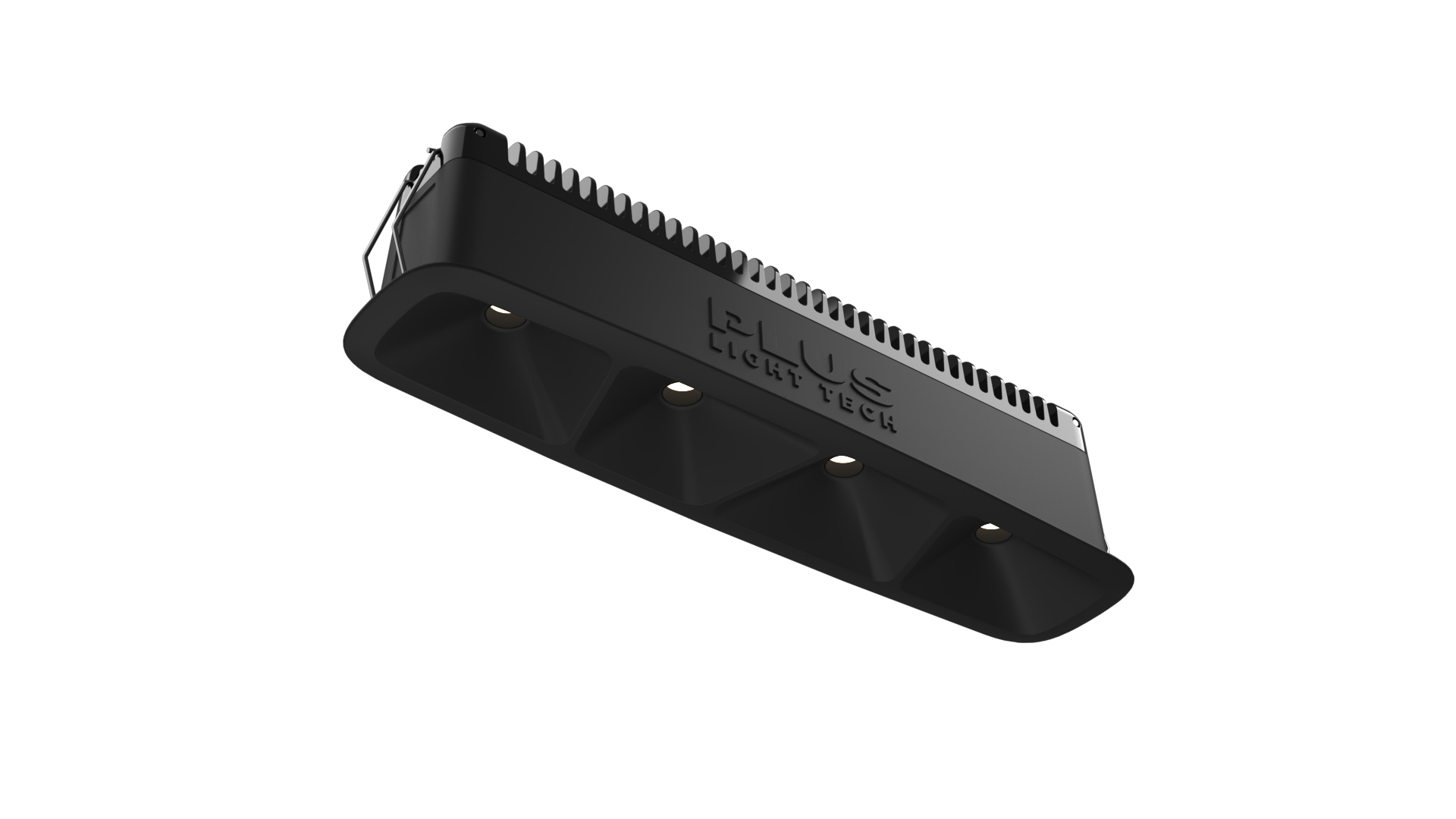

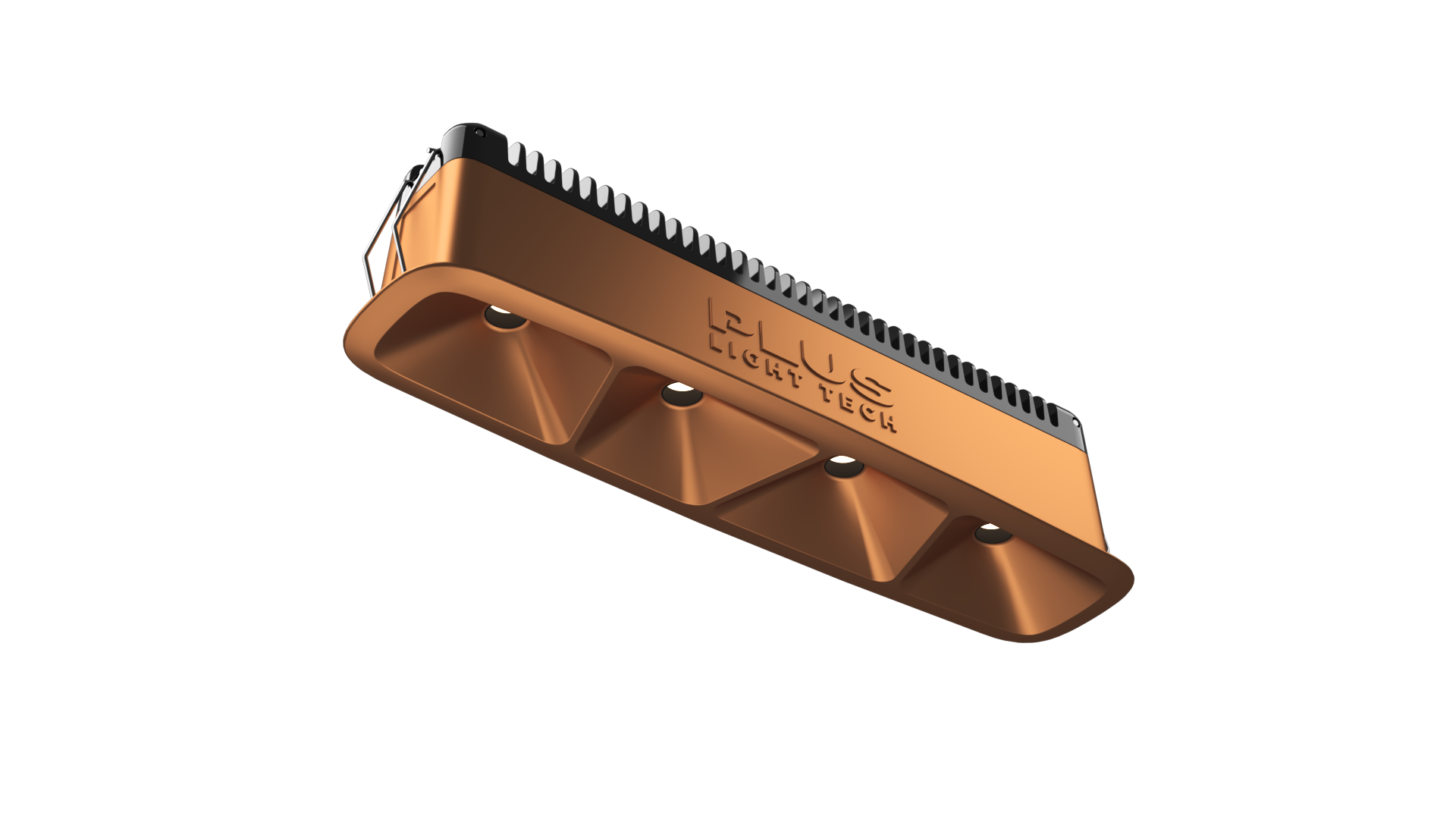

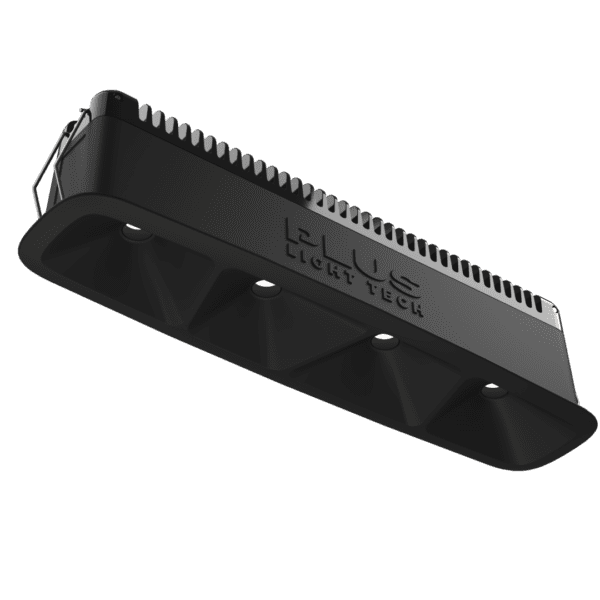

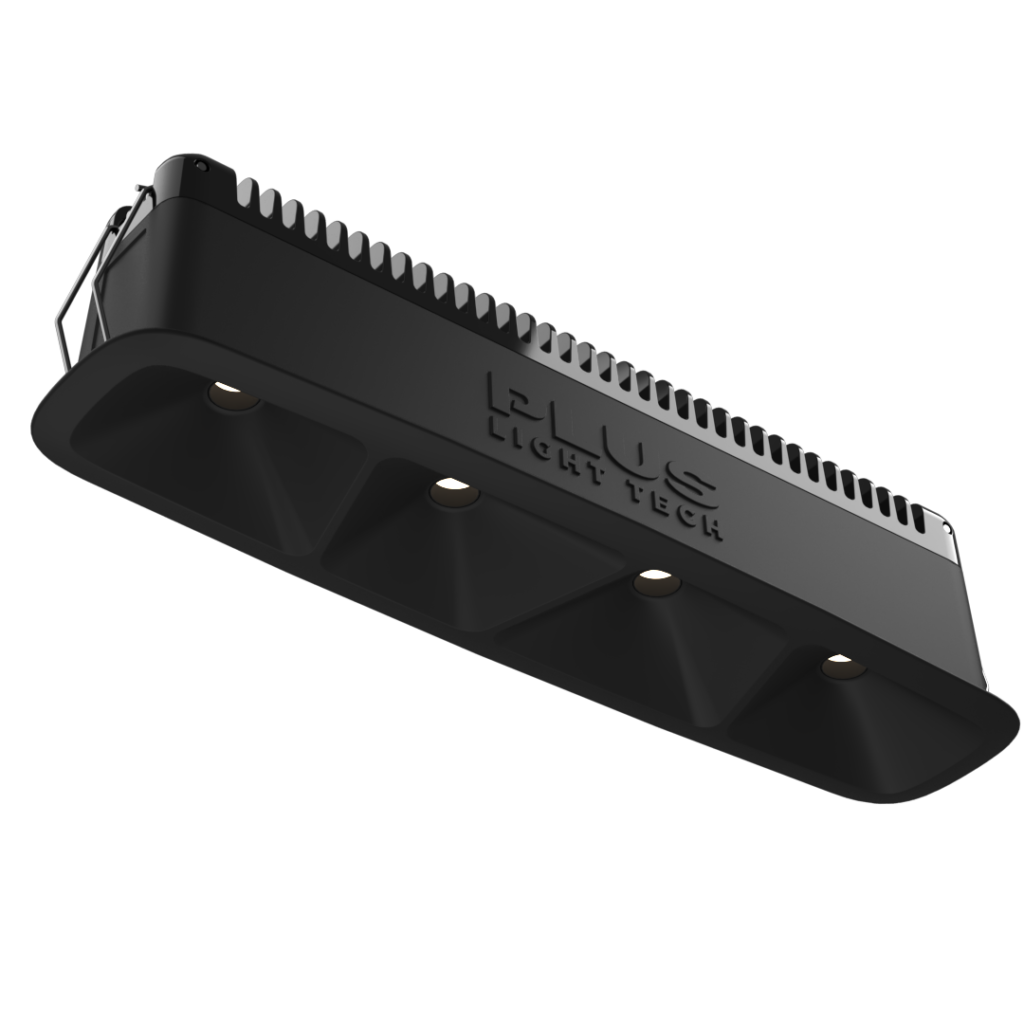

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.
Design
Power Source
ON-OFF/DT8.0/DT2.0/ TD/AD/BLE dim
Product Specifications
Filter Options
Filter By Color Temprature
Filter By Beam Angle
Filter By Wattage
Product Specifications
Color Temperature (CCT) | Luminaire Dimension | Beam Angle | Wattage | Lumens | UGR | IP Rating | Product Code |
---|---|---|---|---|---|---|---|
4000K | L 219 x H 54 | 53° | 24 W | 1392 lm | <24 | IP20 | Hewen 4x Recessed 4K W 01 |
4000K | L 219 x H 54 | 32° | 24 W | 1106 lm | <4 | IP20 | Hewen 4x Recessed 4K N 02 |
3000K | L 219 x H 54 | 49° | 25 W | 1289 lm | <23 | IP20 | Hewen 4x Recessed 3K W 03 |
3000K | L 219 x H 54 | 33° | 25 W | 1038 lm | <1 | IP20 | Hewen 4x Recessed 3K N 04 |
Dimensions
Location: Bartenbach GmbH, Austria
