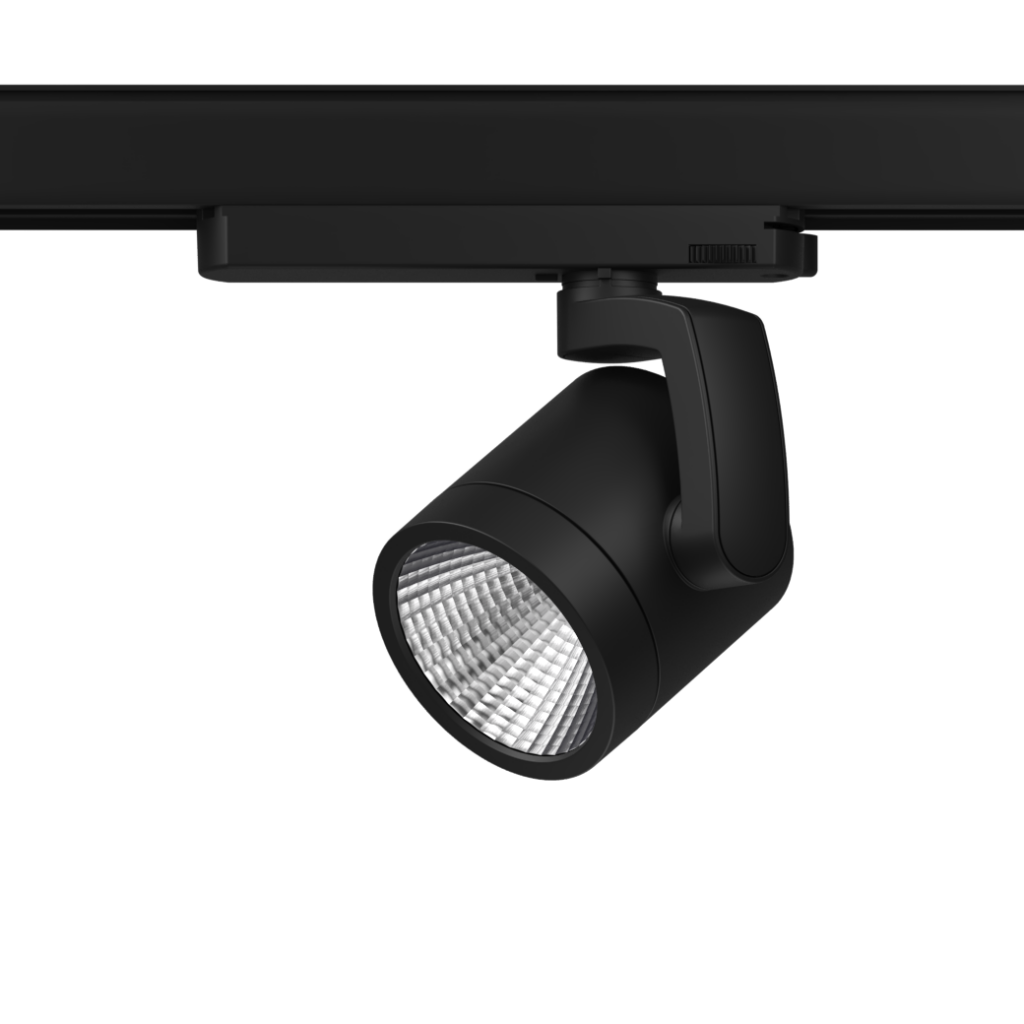

Joy Track Spotlight

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.
Display Image
Display Image

Joy Track Spotlight

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area.

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

On-Off/ Dali 2.0/ DT8.0/ BLE/ AD/ TD

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Joy Track Spotlight HSG 4K 42°

Color Temperature (CCT)

4000K

Luminaire Dimension

L 54 x H 117

Beam Angle

42º

Wattage

24 W

Lumens

2465 lm

UGR

<18

IP Rating

IP20
Joy Track Spotlight HSG 4K 30°

Color Temperature (CCT)

4000K

Luminaire Dimension

L 54 x H 117

Beam Angle

30º

Wattage

24 W

Lumens

2476 lm

UGR

<17

IP Rating

IP20
Joy Track Spotlight HSG 4K 19°

Color Temperature (CCT)

4000K

Luminaire Dimension

L 54 x H 117

Beam Angle

19º

Wattage

24 W

Lumens

2413 lm

UGR

<17

IP Rating

IP20
Joy Track Spotlight HSG 3K 42°

Color Temperature (CCT)

3000K

Luminaire Dimension

L 54 x H 117

Beam Angle

42º

Wattage

20 W

Lumens

1930 lm

UGR

<18

IP Rating

IP20
Joy Track Spotlight HSG 3K 31°

Color Temperature (CCT)

3000K

Luminaire Dimension

L 54 x H 117

Beam Angle

31º

Wattage

20 W

Lumens

1919 lm

UGR

<17

IP Rating

IP20
Joy Track Spotlight ACDC 4K 42°

Color Temperature (CCT)

4000K

Luminaire Dimension

L 81 x H 123

Beam Angle

42º

Wattage

24 W

Lumens

2465 lm

UGR

<18

IP Rating

IP20
Joy Track Spotlight ACDC 4K 30°

Color Temperature (CCT)

4000K

Luminaire Dimension

L 81 x H 123

Beam Angle

30º

Wattage

24 W

Lumens

2476 lm

UGR

<17

IP Rating

IP20
Joy Track Spotlight ACDC 4K 19°

Color Temperature (CCT)

4000K

Luminaire Dimension

L 81 x H 123

Beam Angle

19º

Wattage

24 W

Lumens

2413 lm

UGR

<17

IP Rating

IP20
Joy Track Spotlight ACDC 3K 42°

Color Temperature (CCT)

3000K

Luminaire Dimension

L 81 x H 123

Beam Angle

42º

Wattage

20 W

Lumens

1930 lm

UGR

<18

IP Rating

IP20
Joy Track Spotlight ACDC 3K 31°

Color Temperature (CCT)

3000K

Luminaire Dimension

L 81 x H 123

Beam Angle

31º

Wattage

20 W

Lumens

1919 lm

UGR

<17

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Product Code
3000K L 81 x H 123 31º 20W 1919 lm < 17 IP20 98 lm/W Joy Track Spotlight ACDC 3K 31°
3000K L 81 x H 123 42º 20W 1930 lm < 18 IP20 98 lm/W Joy Track Spotlight ACDC 3K 42°
4000K L 81 x H 123 19º 24W 2413 lm < 17 IP20 102 lm/W Joy Track Spotlight ACDC 4K 19°
4000K L 81 x H 123 30º 24W 2476 lm < 17 IP20 104 lm/W Joy Track Spotlight ACDC 4K 30°
4000K L 81 x H 123 42º 24W 2465 lm < 18 IP20 104 lm/W Joy Track Spotlight ACDC 4K 42°
3000K L 54 x H 117 31º 20W 1919 lm < 17 IP20 98 lm/W Joy Track Spotlight HSG 3K 31°
3000K L 54 x H 117 42º 20W 1930 lm < 18 IP20 98 lm/W Joy Track Spotlight HSG 3K 42°
4000K L 54 x H 117 19º 24W 2413 lm < 17 IP20 102 lm/W Joy Track Spotlight HSG 4K 19°
4000K L 54 x H 117 30º 24W 2476 lm < 17 IP20 104 lm/W Joy Track Spotlight HSG 4K 30°
4000K L 54 x H 117 42º 24W 2465 lm < 18 IP20 104 lm/W Joy Track Spotlight HSG 4K 42°

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
