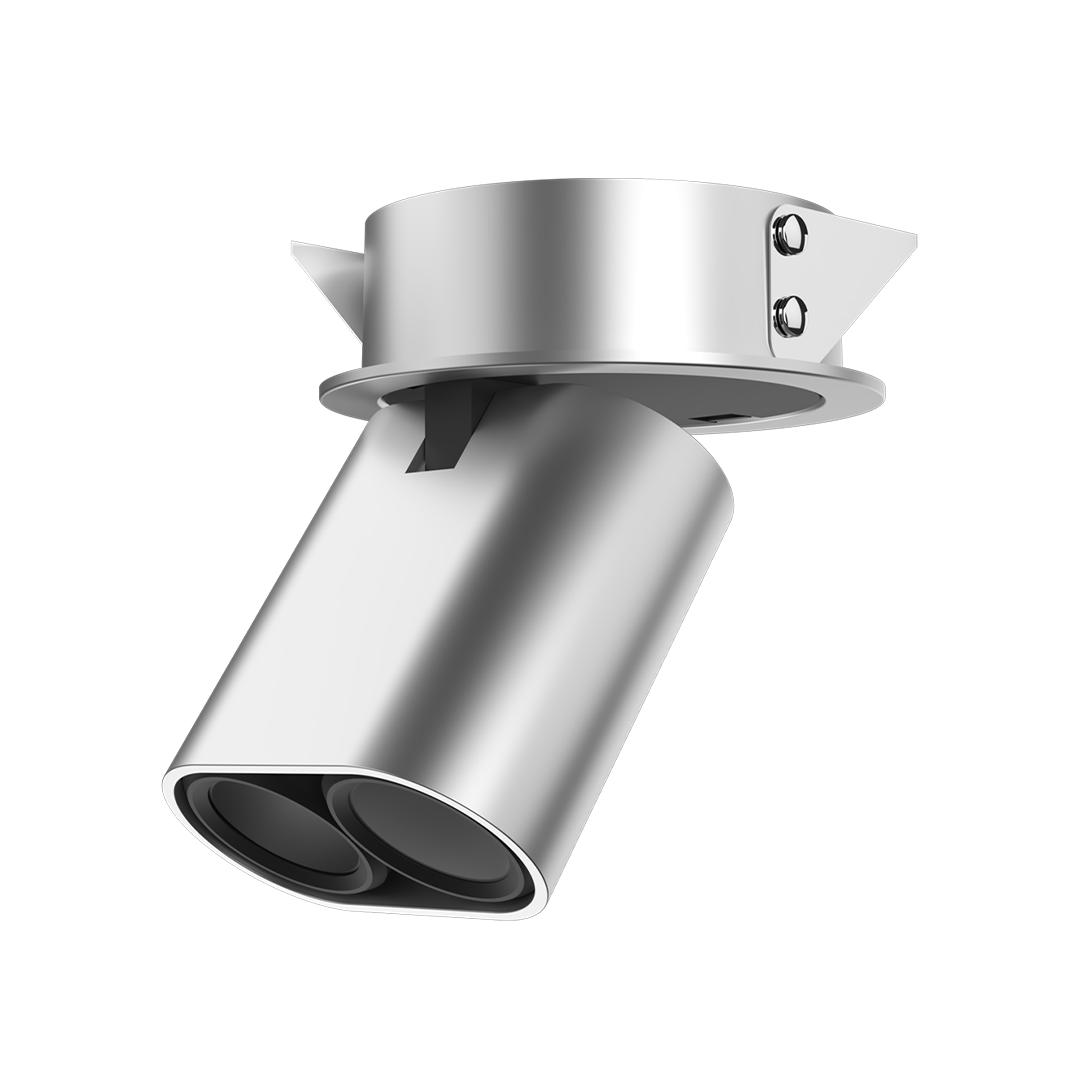

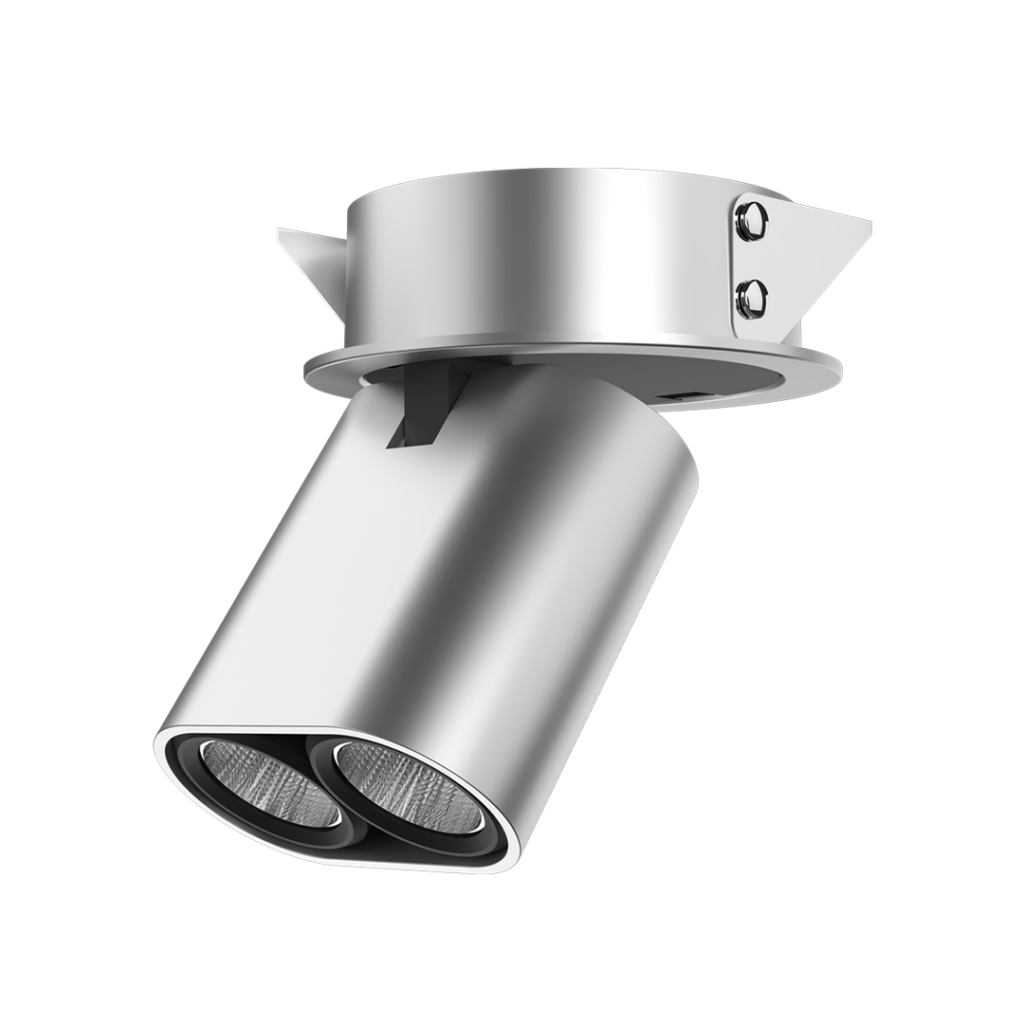

Magnus Semi-Recessed 2X

← Go Back

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Download TDS
5700K L98.5 x H87 83° 10 W 887 lm <30 IP20 92 lm/W Magnus 2x Semi Recessed 57K W
5700K L98.5 x H87 50° 10 W 857 lm <20 IP20 89 lm/W Magnus 2x Semi Recessed 57K M
5700K L98.5 x H87 34° 10 W 793 lm <9 IP20 83 lm/W Magnus 2x Semi Recessed 57K N
4000K L98.5 x H87 83° 10 W 928 lm <28 IP20 95 lm/W Magnus 2x Semi Recessed 4K W
4000K L98.5 x H87 50° 10 W 877 lm <19 IP20 92 lm/W Magnus 2x Semi Recessed 4K M
4000K L98.5 x H87 34° 10 W 792 lm <9 IP20 83 lm/W Magnus 2x Semi Recessed 4K N
3000K L98.5 x H87 83° 10 W 875 lm <30 IP20 88 lm/W Magnus 2x Semi Recessed 3K W
3000K L98.5 x H87 50° 10 W 814 lm <19 IP20 84 lm/W Magnus 2x Semi Recessed 3K M
3000K L98.5 x H87 34° 10 W 766 lm <9 IP20 76 lm/W Magnus 2x Semi Recessed 3K N
2700K L98.5 x H87 83° 10 W 840 lm <30 IP20 86 lm/W Magnus 2x Semi Recessed 27K W
2700K L98.5 x H87 50° 10 W 808 lm <19 IP20 83 lm/W Magnus 2x Semi Recessed 27K M
2700K L98.5 x H87 34° 10 W 735 lm <9 IP20 77 lm/W Magnus 2x Semi Recessed 27K N
2200K L98.5 x H87 83° 10 W 605 lm <28 IP20 63 lm/W Magnus 2x Semi Recessed 22K W
2200K L98.5 x H87 50° 10 W 600 lm <17 IP20 60 lm/W Magnus 2x Semi Recessed 22K M
2200K L98.5 x H87 34° 10 W 555 lm <9 IP20 55 lm/W Magnus 2x Semi Recessed 22K N

PL06822

/ Downloads

Technical Data

Photometric data: IES

Choose your Perfect Finish

Explore the full range of finishes available for the product

Solid

white
White
black
Black
Satin smooth RAL1013
Satin smooth RAL1013
Satin smooth RAL1015
Satin smooth RAL1015
Satin smooth RAL7032
Satin smooth RAL7032
Satin smooth RAL7035
Satin smooth RAL7035
Satin smooth RAL7038
Satin smooth RAL7038
Satin smooth RAL7037
Satin smooth RAL7037
Satin smooth RAL7006
Satin smooth RAL7006
Satin smooth RAL7022
Satin smooth RAL7022
Satin smooth RAL7016
Satin smooth RAL7016
texture Schueco Grey Fine
texture Schueco Grey Fine
Matt smooth RAL7031
Matt smooth RAL7031
Matt smooth RAL7012
Matt smooth RAL7012
Matt smooth RAL7043
Matt smooth RAL7043
Matt smooth RAL7024
Matt smooth RAL7024
Matt smooth RAL7015
Matt smooth RAL7015
Satin smooth RAL8017
Satin smooth RAL8017
Matt smooth RAL9005
Matt smooth RAL9005
Satin smooth RAL8004
Satin smooth RAL8004
Satin smooth RAL9003
Satin smooth RAL9003
Satin smooth RAL9016
Satin smooth RAL9016
Satin smooth RAL9010
Satin smooth RAL9010
Matt smooth RAL7047
Matt smooth RAL7047
Satin smooth RAL9002
Satin smooth RAL9002
Matt smooth RAL7030
Matt smooth RAL7030
Matt smooth RAL7011
Matt smooth RAL7011
Matt smooth RAL7012
Matt smooth RAL7012
Matt smooth RAL7043
Matt smooth RAL7043
Satin smooth RAL7021
Satin smooth RAL7021
Matt smooth RAL9005
Matt smooth RAL9005

Metallic

Satin RAL9022
Satin RAL9022
Satin RAL9006
Satin RAL9006
Satin RAL9007
Satin RAL9007
Satin RAL7001
Satin RAL7001
Texture RAL9023
Texture RAL9023
Texture Veranda 25
Texture Veranda
Satin Metro Gold
Satin Metro Gold
Satin RAL1035
Satin RAL1035
Texture 2500 MT Gray
Texture 2500 MT Gray
Texture 2600 Sable
Texture 2600 Sable
Texture 2900 MT Gray
Texture 2900 MT Gray
Texture Anodic Bronze
Texture Anodic Bronze
Texture Noir 2200 Sable
Texture Noir 2200 Sable
Texture Sparkle Grey
Texture Sparkle Grey
Texture Anodic Bronze III
Texture Anodic Bronze III
Texture Dark Gray
Texture Dark Gray
Texture Veranda 22
Texture Veranda 22
Matt Chocolate Brown
Matt Chocolate Brown

Special Finishes

Texture White Stone
Texture Sand Stone
Texture Dark Grey Natural Concrete
Texture Red Brick
