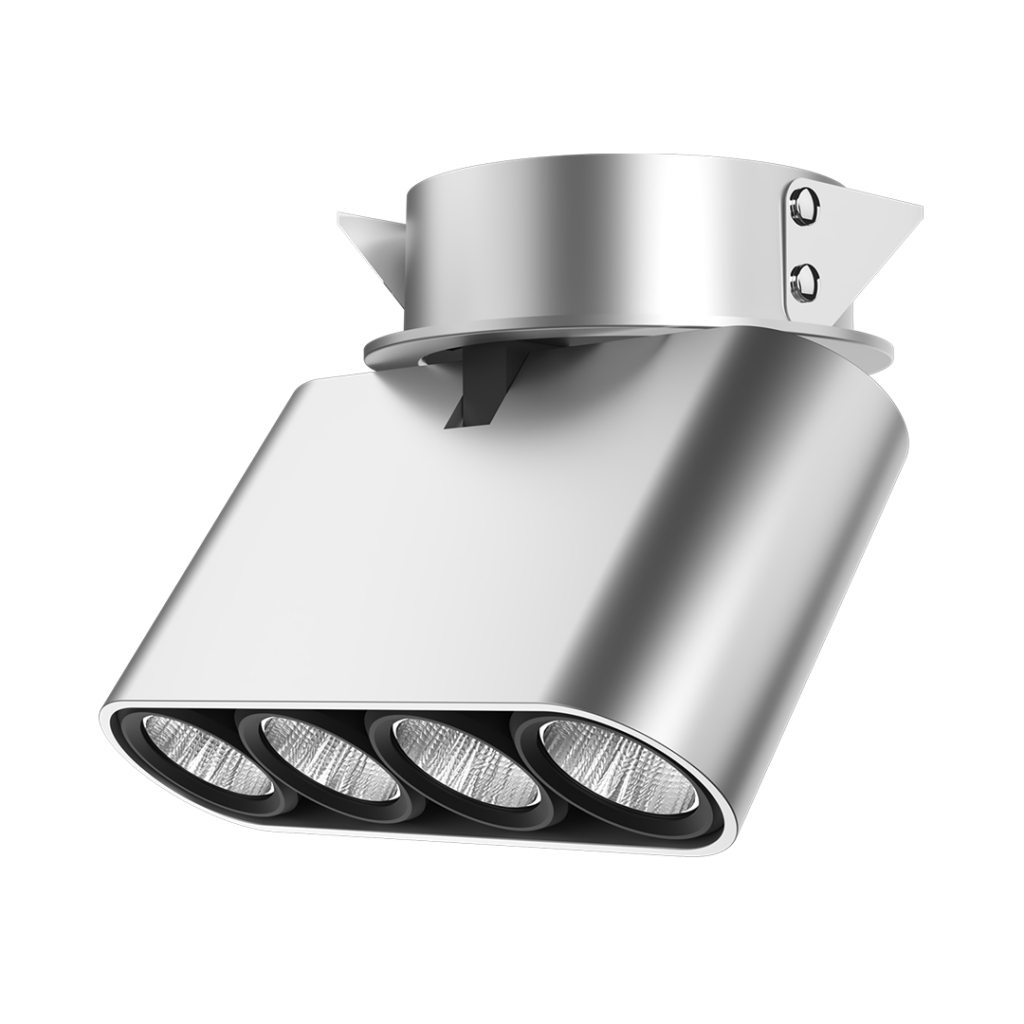

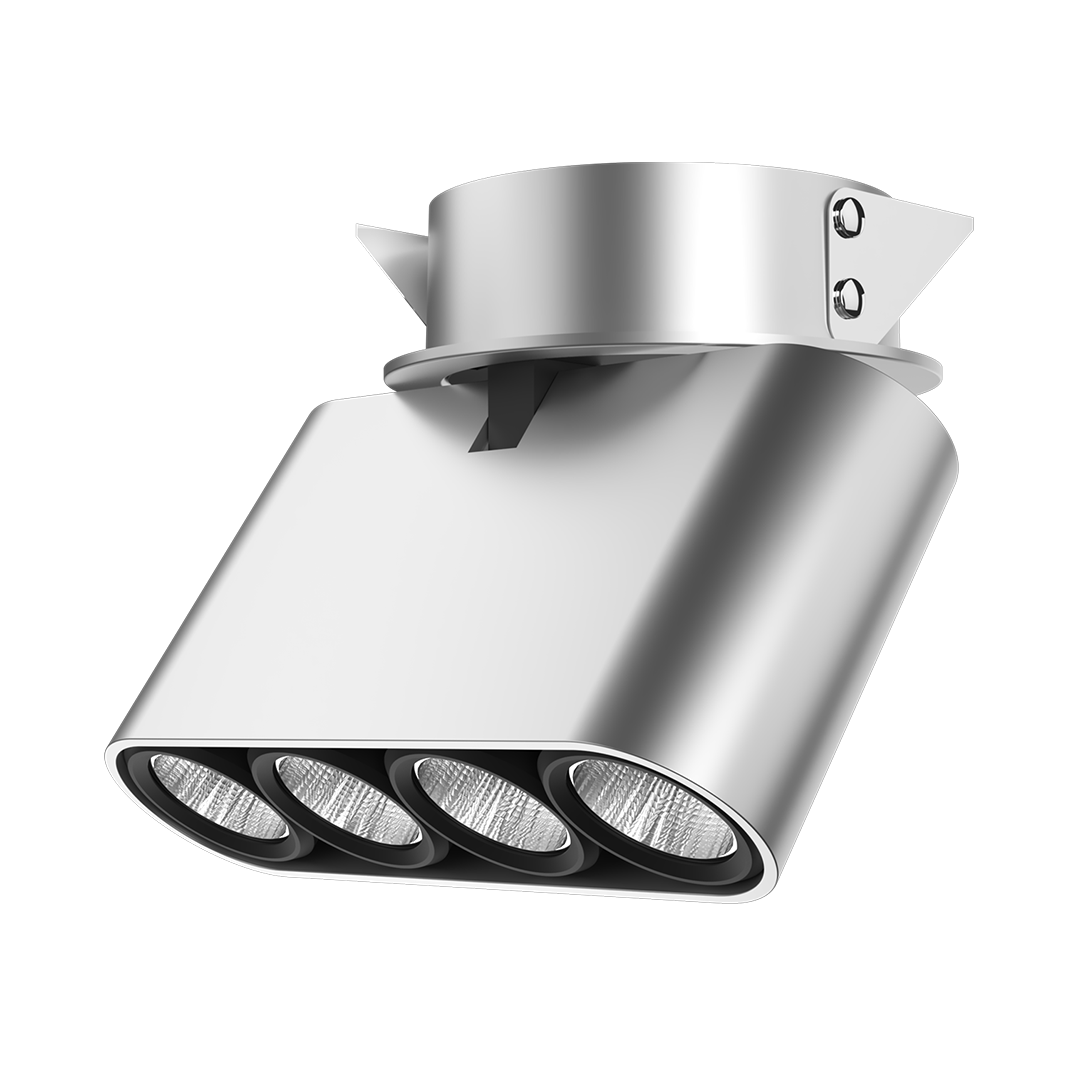

Magnus Semi-Recessed Linear 4X

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting.Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.

product families

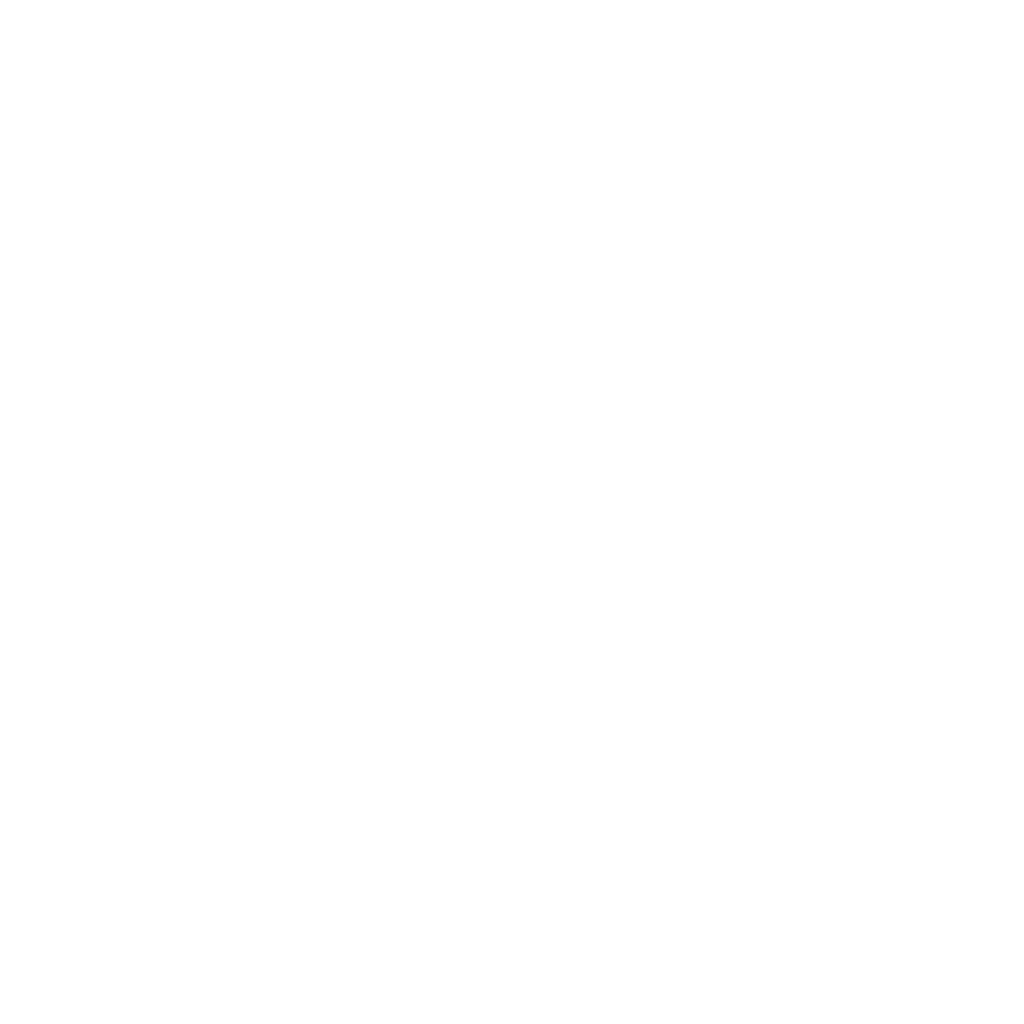

Dimensions of the Fixture

Choose Your Perfect Finish


Choose Your

beam angle

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT)Luminaire DimensionBeam AngleWattageLumensUGRIP RatingEfficacyProduct Code
5700KL 127 x H 98.583°19 W1737 lm<26IP2091 lm/WMagnus 4x Semi Recessed Linear 57K W
5700KL 127 x H 98.553°19 W1638 lm<18IP2087 lm/WMagnus 4x Semi Recessed Linear 57K M
5700KL 127 x H 98.532°19 W1490 lm<9IP2078 lm/WMagnus 4x Semi Recessed Linear 57K N
4000KL 127 x H 98.582°19 W1812 lm<26IP2094 lm/WMagnus 4x Semi Recessed Linear 4K W 01
4000KL 127 x H 98.553°19 W1737 lm<18IP2090 lm/WMagnus 4x Semi Recessed Linear 4K M 02
4000KL 127 x H 98.532°19 W1666 lm<9IP2088 lm/WMagnus 4x Semi Recessed Linear 4K N 03
3000KL 127 x H 98.582°19 W1635 lm<25IP2087 lm/WMagnus 4x Semi Recessed Linear 3K W 04
3000KL 127 x H 98.553°19 W1556 lm<11IP2081 lm/WMagnus 4x Semi Recessed Linear 3K M 05
3000KL 127 x H 98.532°19 W1465 lm<9IP2076 lm/WMagnus 4x Semi Recessed Linear 3K N 06
2700KL 127 x H 98.582°19 W1568 lm<25IP2081 lm/WMagnus 4x Semi Recessed Linear 27K W
2700KL 127 x H 98.553°19 W1354 lm<18IP2071 lm/WMagnus 4x Semi Recessed Linear 27K M
2700KL 127 x H 98.532°19 W1441 lm<9IP2075 lm/WMagnus 4x Semi Recessed Linear 27K N
2200KL 127 x H 98.582°19 W1402 lm<25IP2074 lm/WMagnus 4x Semi Recessed Linear 22K W
2200KL 127 x H 98.553°19 W1312 lm<16IP2062 lm/WMagnus 4x Semi Recessed Linear 22K M
2200KL 127 x H 98.532°19 W1193 lm<9IP2062 lm/WMagnus 4x Semi Recessed Linear 22K N
