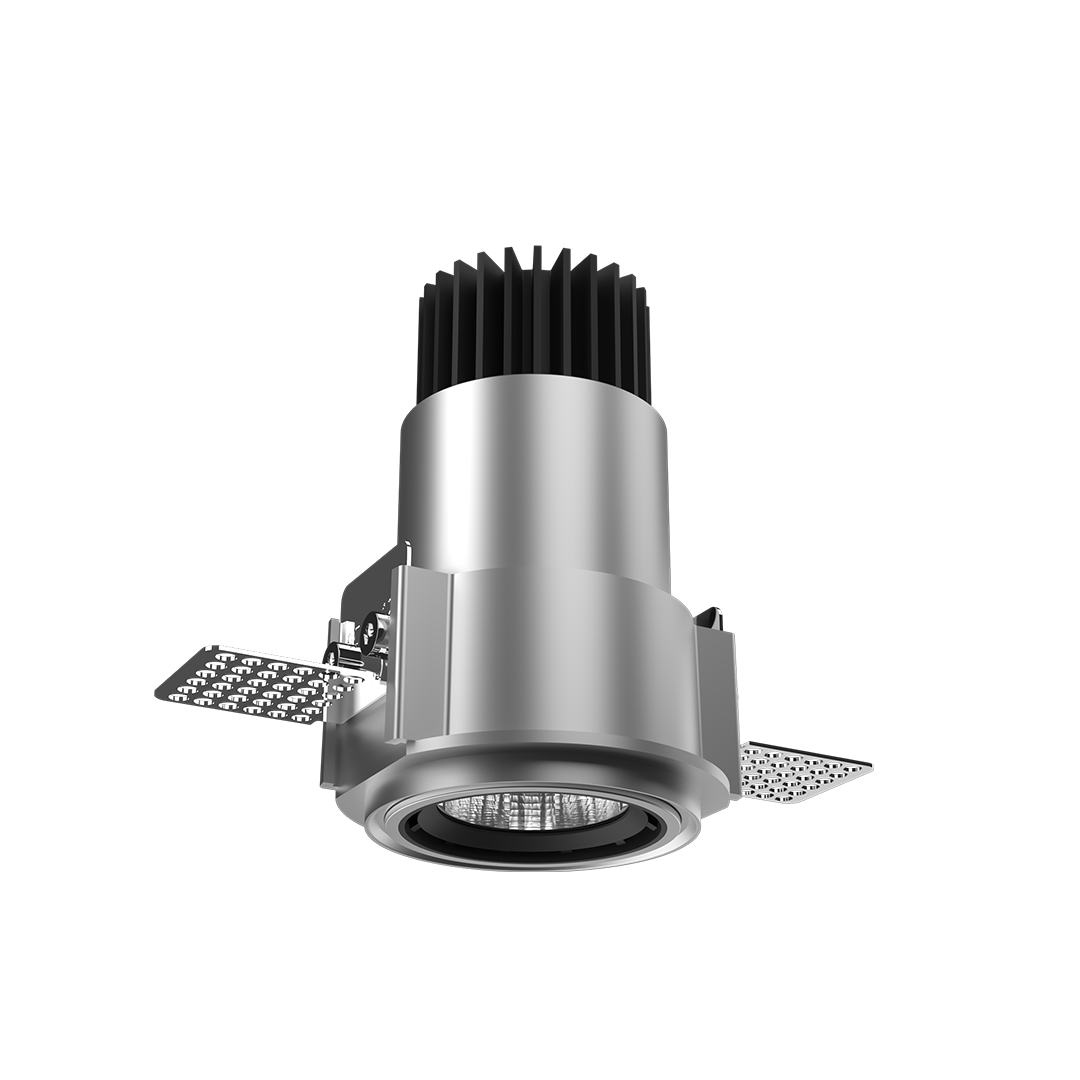

Magnus Trimless 1x

Product Description

Magnus recessed spotlights, designed to offer unparalleled brightness and flexibility. Available in wide, medium, and narrow beam options, Magnus delivers exceptional luminosity with a clean, defined beam and minimal spill. With cutting-edge optical geometry and a highly reflective aluminum coating, these spotlights provide a controlled and efficient beam angle, maximum performance and precision in any setting.
Display Image
Display Image

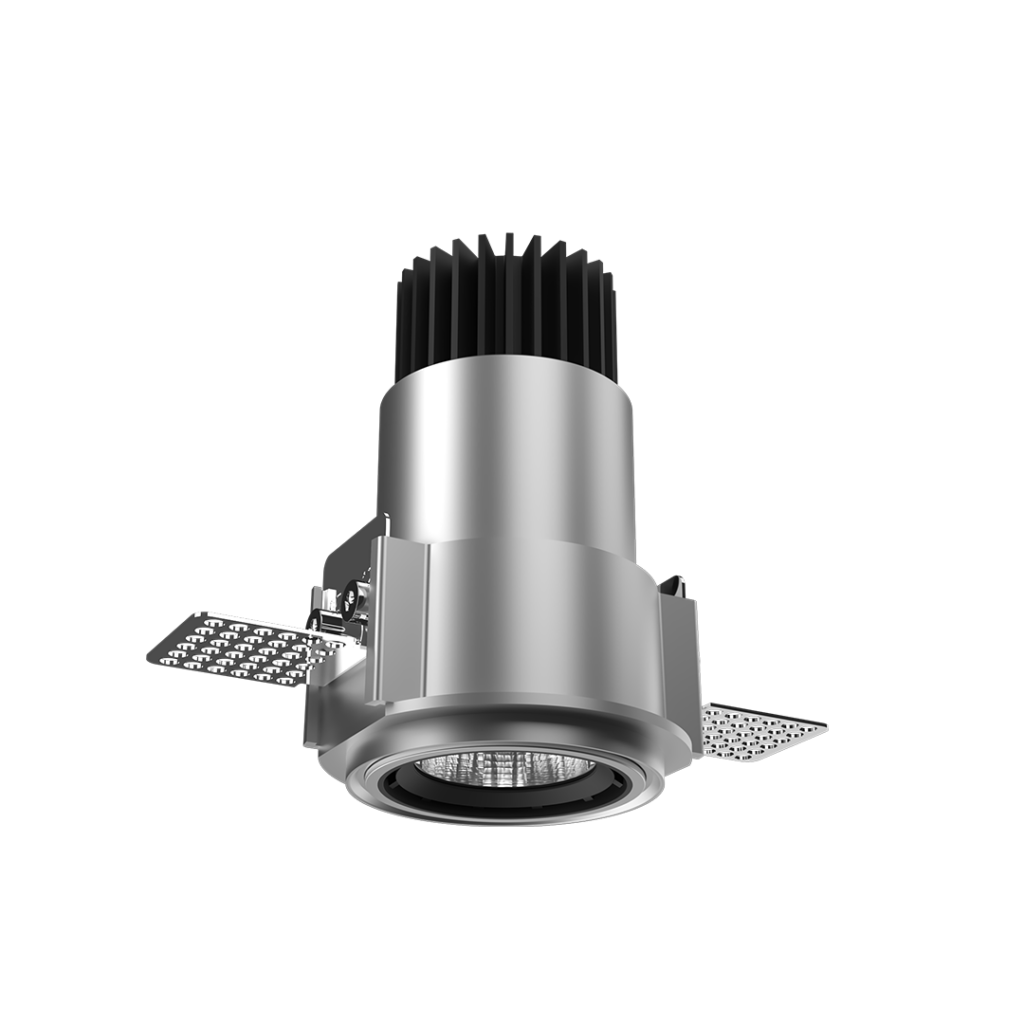

Magnus Trimless 1x

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area. Beam angle is 2x25/2x35/2x45

Design

Build

Fixture Housing is made of extruded and Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

ON-OFF/Dali 2.0/ TD/AD/BLE dim

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

MAGNUS 1X Trimless 3K Narrow

Color Temperature (CCT)

3000K

Luminaire Dimension

L95 x H75

Beam Angle

33°

Wattage

6 W

Lumens

384 lm

UGR

<28

IP Rating

IP20
MAGNUS 1X Trimless 3K Medium

Color Temperature (CCT)

3000K

Luminaire Dimension

L95 x H75

Beam Angle

52°

Wattage

6 W

Lumens

405 lm

UGR

<28

IP Rating

IP20
MAGNUS 1X Trimless 3K Wide

Color Temperature (CCT)

3000K

Luminaire Dimension

L95 x H75

Beam Angle

85°

Wattage

5 W

Lumens

428 lm

UGR

<32

IP Rating

IP20
MAGNUS 1X Trimless 4K Narrow

Color Temperature (CCT)

4000K

Luminaire Dimension

L95 x H75

Beam Angle

35°

Wattage

6 W

Lumens

416 lm

UGR

<6

IP Rating

IP20
MAGNUS 1X Trimless 4K Medium

Color Temperature (CCT)

4000K

Luminaire Dimension

L95 x H75

Beam Angle

52°

Wattage

6 W

Lumens

441 lm

UGR

<24

IP Rating

IP20
MAGNUS 1X Trimless 4K Wide

Color Temperature (CCT)

4000K

Luminaire Dimension

L95 x H75

Beam Angle

83°

Wattage

6 W

Lumens

479 lm

UGR

<35

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Product Code
4000K L95 x H75 83° 6 W 479 lm <35 IP20 86 lm/W MAGNUS 1X Trimless 4K W 01
4000K L95 x H75 52° 6 W 441 lm <24 IP20 82 lm/W MAGNUS 1X Trimless 4K M 02
4000K L95 x H75 35° 6 W 416 lm <6 IP20 74 lm/W MAGNUS 1X Trimless 4K N 03
3000K L95 x H75 85° 5 W 428 lm <32 IP20 78 lm/W MAGNUS 1X Trimless 3K W 04
3000K L95 x H75 52° 6 W 405 lm <28 IP20 72 lm/W MAGNUS 1X Trimless 3K M 05
3000K L95 x H75 33° 6 W 384 lm <28 IP20 68 lm/W MAGNUS 1X Trimless 3K N 06

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
