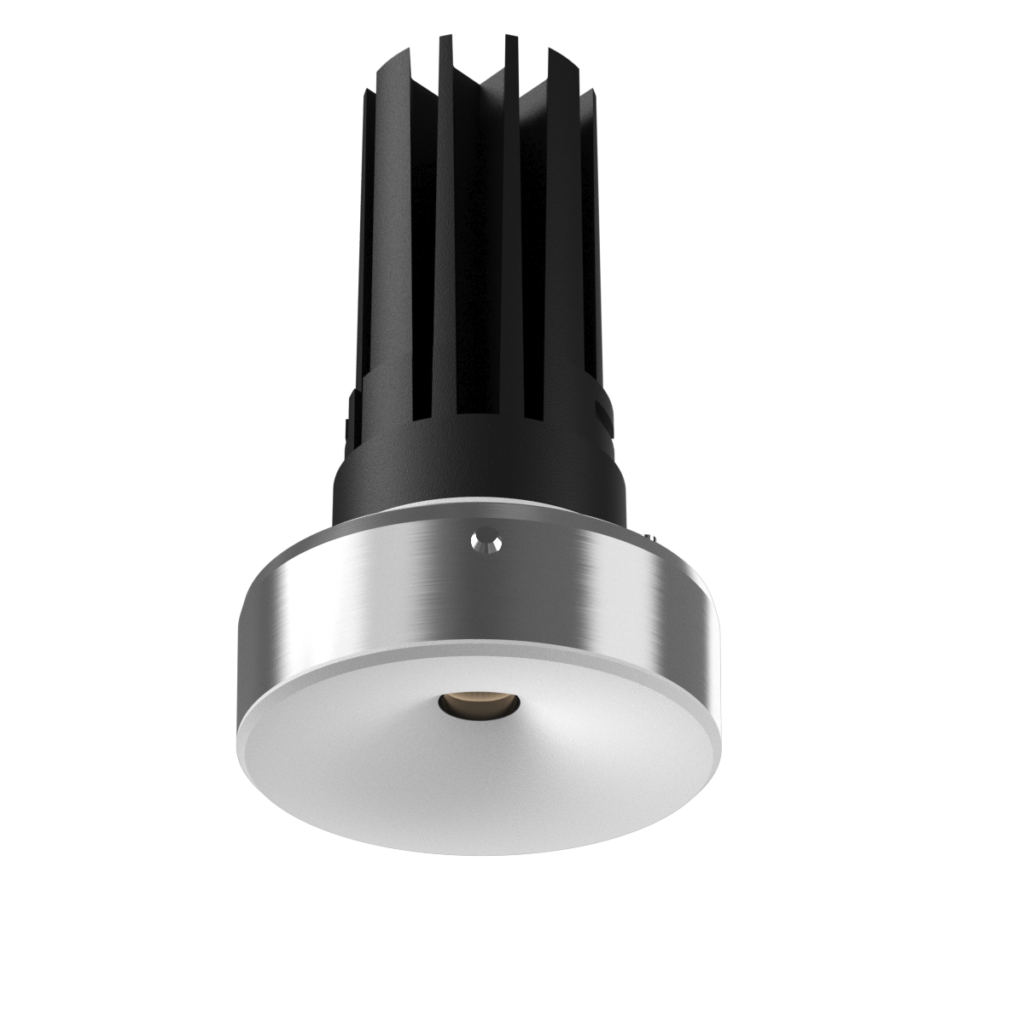

Moonscape Concave

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.

Moonscape Concave

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

View PLUS TECHNOLOGY

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

View PLUS TECHNOLOGY

Design

Optics

Lens based optics are designed to have uniformity and high efficiency and complete glare free effect! The lens faceted structure is design to collimate and distribute the light through min apperture size of 10mm &13mm. Option for Beam angle(FWHM) is 2x12deg(new yet to add)/2x17deg/2x30deg

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

ON-OFF/Dali 2.0/ TD/AD/BLE dim

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT)	Luminaire Dimension	Beam Angle	Wattage	Lumens	UGR	IP Rating	Efficacy	Product Code
5700K	L 60 x H 87	39º	8 W	385 lm	<12	IP20	47 lm/W	MOONSCAPE CONCAVE 57K N
5700K	L 60 x H 87	56º	8 W	439 lm	<33	IP20	56 lm/W	MOONSCAPE CONCAVE 57K W
4000K	L 60 x H 87	39º	8 W	342 lm	<13	IP20	44 lm/W	MOONSCAPE CONCAVE 4K N
4000K	L 60 x H 87	56º	8 W	369 lm	<32	IP20	48 lm/W	MOONSCAPE CONCAVE 4K W
3000K	L 60 x H 87	39º	8 W	319 lm	<12	IP20	41 lm/W	MOONSCAPE CONCAVE 3K N
3000K	L 60 x H 87	56º	8 W	359 lm	<33	IP20	47 lm/W	MOONSCAPE CONCAVE 3K W
2700K	L 60 x H 87	39º	8 W	301 lm	<12	IP20	38 lm/W	MOONSCAPE CONCAVE 27K N
2700K	L 60 x H 87	56º	8 W	319 lm	<33	IP20	40 lm/W	MOONSCAPE CONCAVE 27K W

Dimensions
