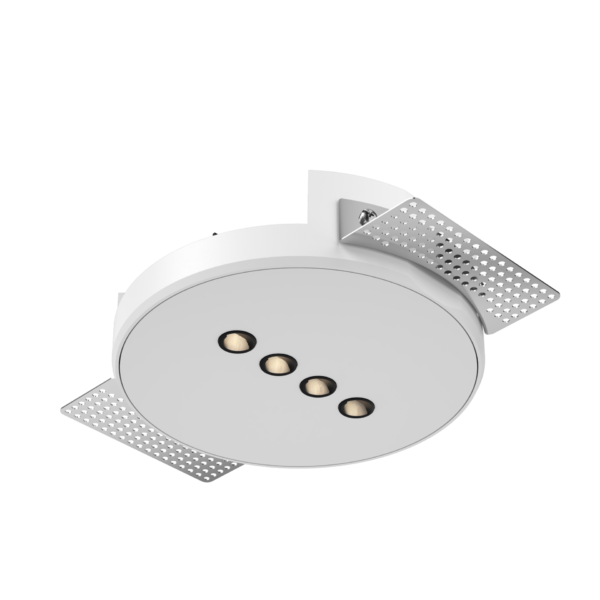

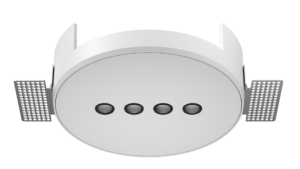

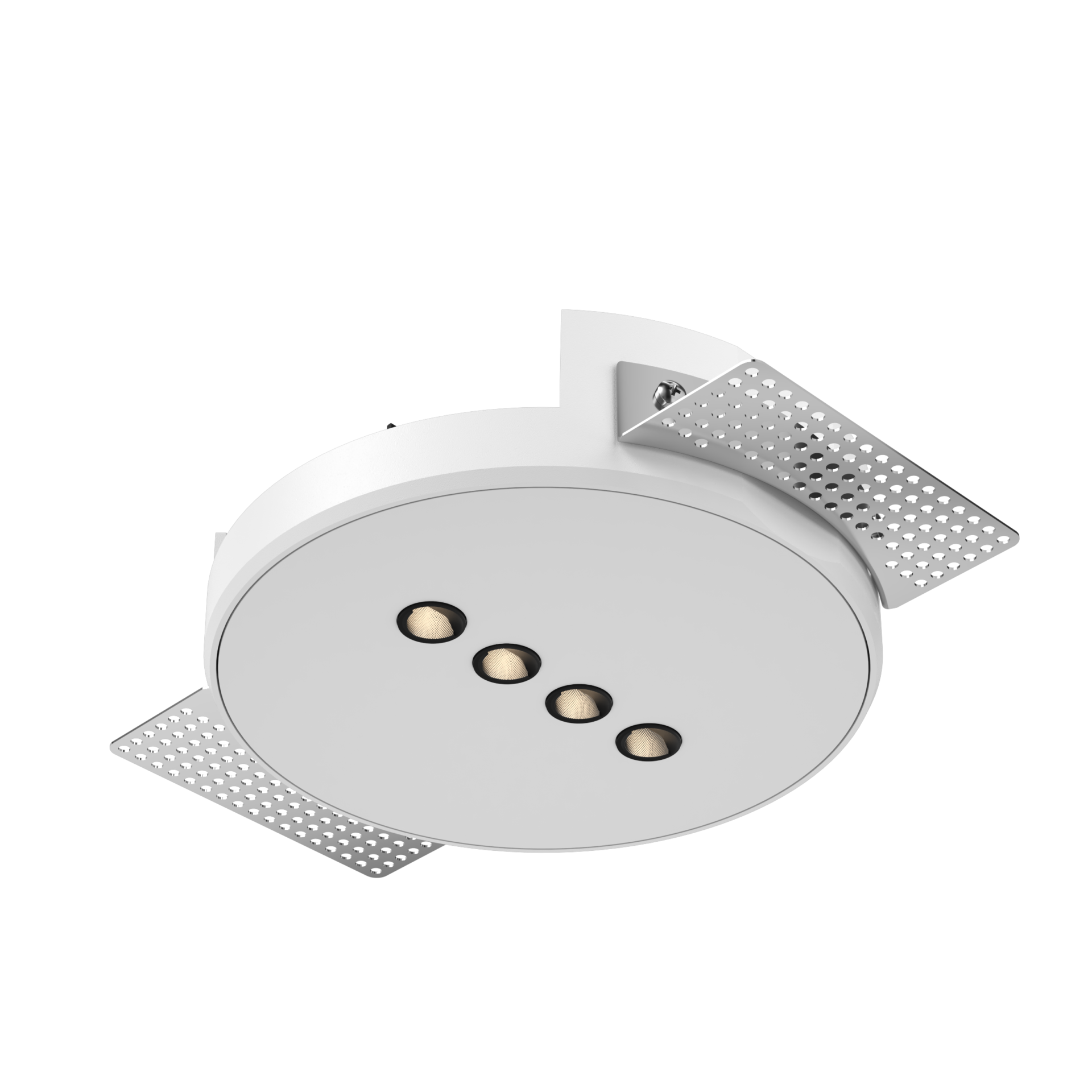

Nano 4X Downlight Wall Washer

Product Description

A compact, low-glare light source integrated seamlessly with a 4 mm routed pop sheet. Ideal for homes, commercial spaces, and more, Nano Trimless fixtures achieve a unique aesthetic with near-invisible light sources, delivering exceptional light quality. It is an Innovative technology which combines cool white and warm white LEDs for uniform, natural lighting and precise control without glare.
Display Image
Display Image

Nano 4X Downlight Wall Washer

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

The LFO High Performance Series Optic—engineered to deliver excellence. With its sleek 13 mm diameter, this optic features an asymmetric beam light distribution that maximizes efficiency and ensures a glare-free experience. Its recessed design with a black aperture ensures not only excellent uniformity but also a stylish, sophisticated look. Ideal for a range of applications including downlights, wall washers, shop lighting, and stair, shelf, floor, or corridor illumination. With dimensions of 13.00 mm in diameter and 9.08 mm in height, and a robust system efficiency of around 80%, this optic provides an optimal asymmetric beam angle for both downlight and wallwash effects. Choose the LFO High Performance Series Optic to enhance your space with precision and style!

Design

Build

Fiixture housing features a durable external body made from pressure die-cast material with a PPG coating, while the internal body is crafted from extruded anodized aluminum for enhanced thermal conductivity. This fixture is designed for seamless, trimless installation on both gypsum and wooden ceilings. The front disc is precision-machined from high-grade aluminum and can be customized with finishes such as undiluted paint, powder coating, or anodizing to meet specific requirements.

Design

Power Source

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

No data was found

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
