Nova Flex 1x

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.

This product is currently out of stock and unavailable.

Display Image
Display Image

Nova Flex 1x

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area.

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

On-Off/ Dali2/DT8/AD/TD/BLE

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Nova Flex 1x Recessed Spotlight 3K 19º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

19º

Wattage

55 W

Lumens

6090 lm

UGR

<14

IP Rating

IP20
Nova Flex 1x Recessed Spotlight 4K 19º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

19º

Wattage

55 W

Lumens

6381 lm

UGR

<15

IP Rating

IP20
Nova Flex 1x Recessed Spotlight 3K 46º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

46º

Wattage

55 W

Lumens

5632 lm

UGR

<15

IP Rating

IP20
Nova Flex 1x Recessed Spotlight 4K 46º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

46º

Wattage

55 W

Lumens

6124 lm

UGR

<15

IP Rating

IP20
Nova Flex 1x Recessed Spotlight 3K 60º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

60º

Wattage

55 W

Lumens

6284 lm

UGR

<19

IP Rating

IP20
Nova Flex 1x Recessed Spotlight 3K 30º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

30º

Wattage

55 W

Lumens

6108 lm

UGR

<14

IP Rating

IP20
Nova Flex 1x Recessed Spotlight 4K 30º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

30º

Wattage

54 W

Lumens

6440 lm

UGR

<18

IP Rating

IP20
Nova Flex 1x Recessed Spotlight 4K 60º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

60º

Wattage

54 W

Lumens

6652 lm

UGR

<18

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Product Code
3000K - 19º 55W 6090 lm < 14 IP20 111 lm/W Nova Flex 1x Recessed Spotlight 3K 19º
3000K - 30º 55W 6108 lm < 14 IP20 112 lm/W Nova Flex 1x Recessed Spotlight 3K 30º
3000K - 46º 55W 5632 lm < 15 IP20 103 lm/W Nova Flex 1x Recessed Spotlight 3K 46º
3000K - 60º 55W 6284 lm < 19 IP20 115 lm/W Nova Flex 1x Recessed Spotlight 3K 60º
4000K - 19º 55W 6381 lm < 15 IP20 117 lm/W Nova Flex 1x Recessed Spotlight 4K 19º
4000K - 30º 54W 6440 lm < 14 IP20 118 lm/W Nova Flex 1x Recessed Spotlight 4K 30º
4000K - 46º 55W 6124 lm < 15 IP20 112 lm/W Nova Flex 1x Recessed Spotlight 4K 46º
4000K - 60º 54W 6652 lm < 18 IP20 122 lm/W Nova Flex 1x Recessed Spotlight 4K 60º

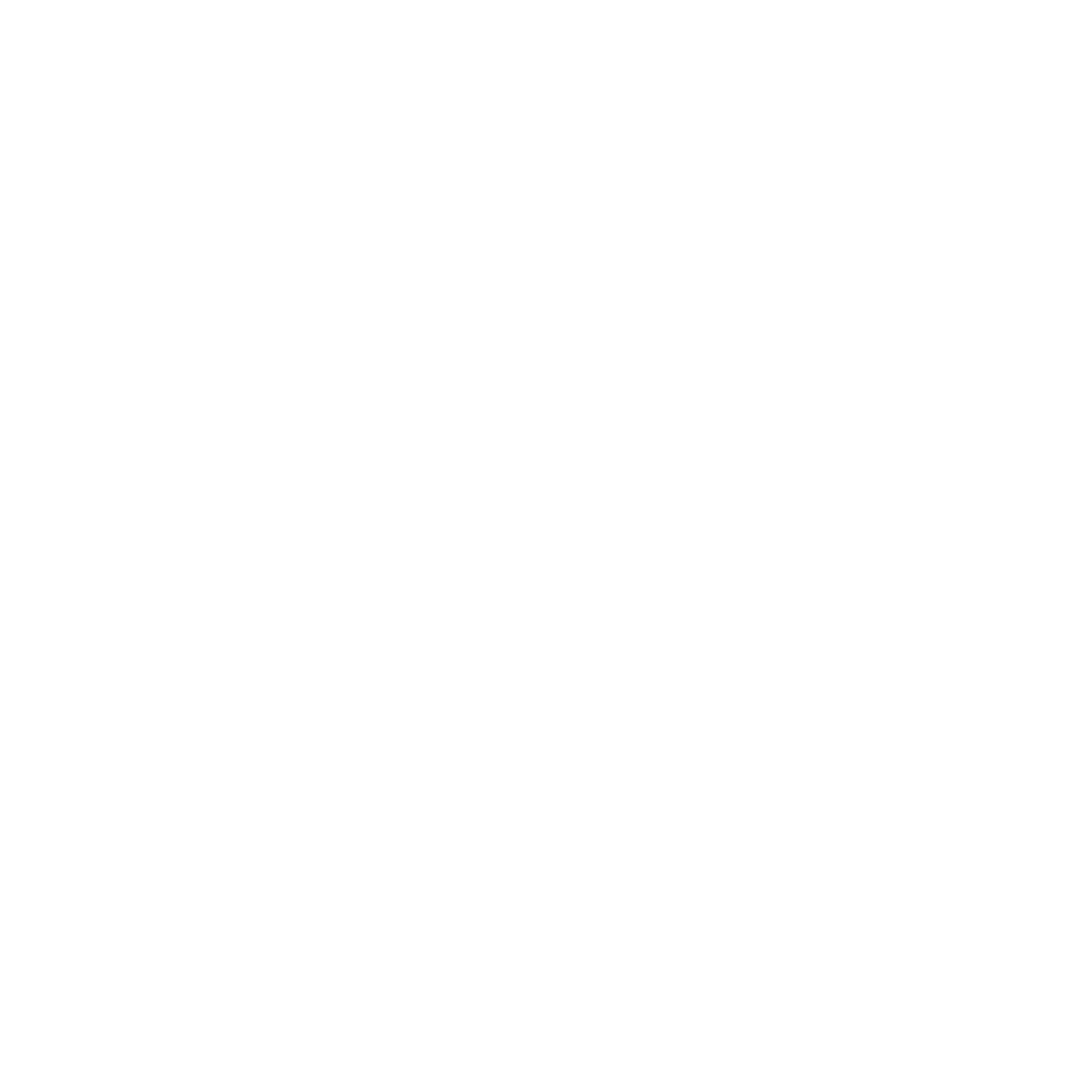

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
