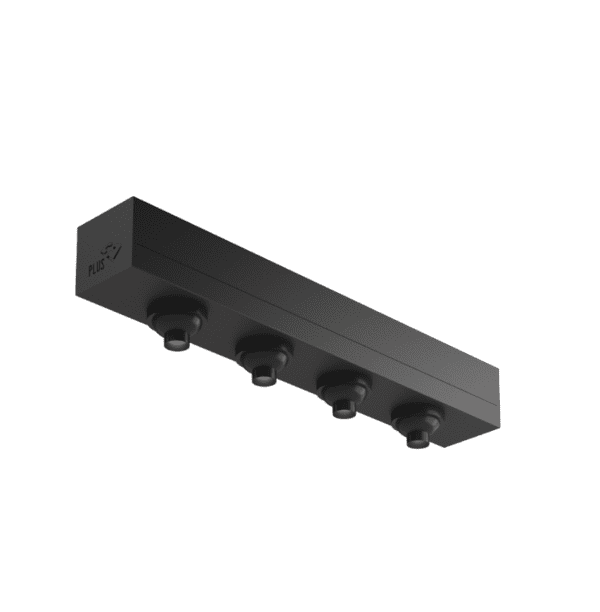

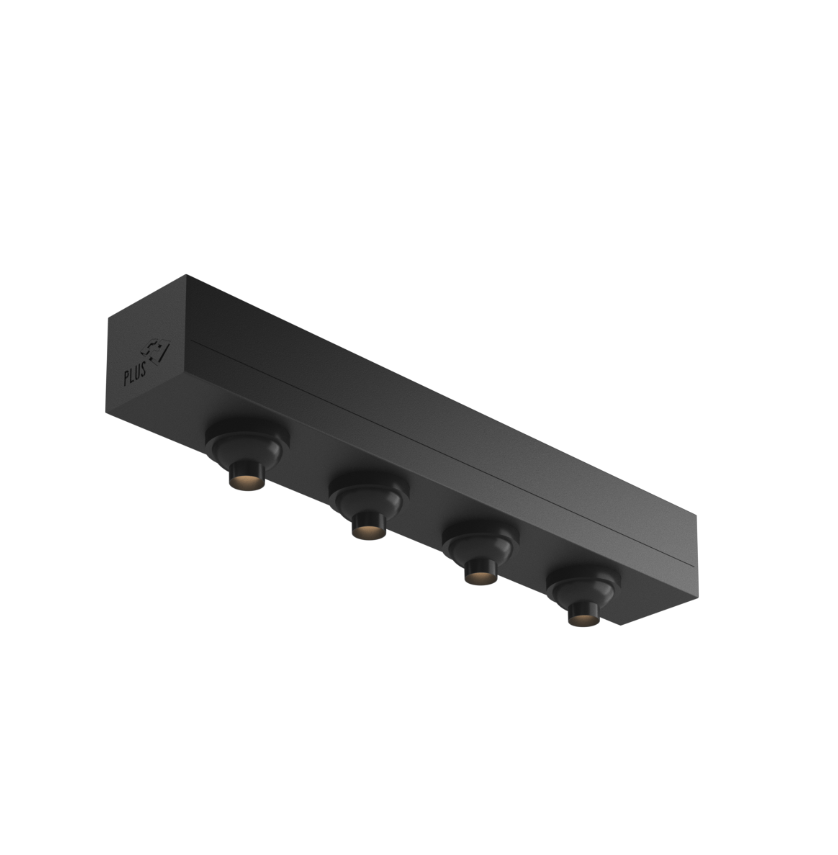

Product Description
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
Design
Optics
Lens based optics are designed to have uniformity and high efficiency and complete glare free effect! The lens faceted structure is design to collimate and distribute the light through min apperture size of 10mm &13mm. Option for Beam angle(FWHM) is 2x12deg(new yet to add)/2x17deg/2x30deg
Design
Build
Fixture housing is made of Anodized Aluminum extruded housing with material Grade 6063-T5 and provides the fixture modularity to have different length for configuartions 1X,2X,4X,6X,8X and 24X! This modularity helps to integrate the fixture with different Fire retardant ceiling Gypsum, Wooden,Acoustic,Metal
Design
Power Source
ON-OFF/DT8.0/DT2.0/ TD/AD/BLE dim
Product Specifications
Filter Options
Filter By Color Temprature
Filter By Beam Angle
Filter By Wattage
Filter By Efficacy
Product Specifications
Color Temperature (CCT) | Luminaire Dimension | Beam Angle | Wattage | Lumens | UGR | IP Rating | Efficacy | Product Code |
---|---|---|---|---|---|---|---|---|
4000K | L 136 x H 40 | 52° | 14 W | 828 lm | <20 | IP20 | 60 lm/W | Perdu 4x Trimless Downlight 4K W 01 |
4000K | L 136 x H 40 | 35° | 14 W | 746 lm | <1 | IP20 | 52 lm/W | Perdu 4x Trimless Downlight 4K N 02 |
3000K | L 136 x H 40 | 53° | 14 W | 796 lm | <21 | IP20 | 56 lm/W | Perdu 4x Trimless Downlight 3K W 03 |
3000K | L 136 x H 40 | 53° | 14 W | 706 lm | <1 | IP20 | 49 lm/W | Perdu 4x Trimless Downlight 3K N 04 |
4000K | L 136 x H 40 | 49° | 14 W | 924 lm | <20 | IP20 | 64 lm/W | Perdu 4x Trimless Downlight 4K W 05 |
4000K | L 136 x H 40 | 30° | 14 W | 850 lm | <1 | IP20 | 64 lm/W | Perdu 4x Trimless Downlight 4K N 06 |
3000K | L 136 x H 40L 136 x H 40 | 47° | 14 W | 843 lm | <20 | IP20 | 59 lm/W | Perdu 4x Trimless Downlight 3K W 07 |
3000K | L 136 x H 40 | 31° | 14 W | 795 lm | <0 | IP20 | 60 lm/W | Perdu 4x Trimless Downlight 3K N 08 |

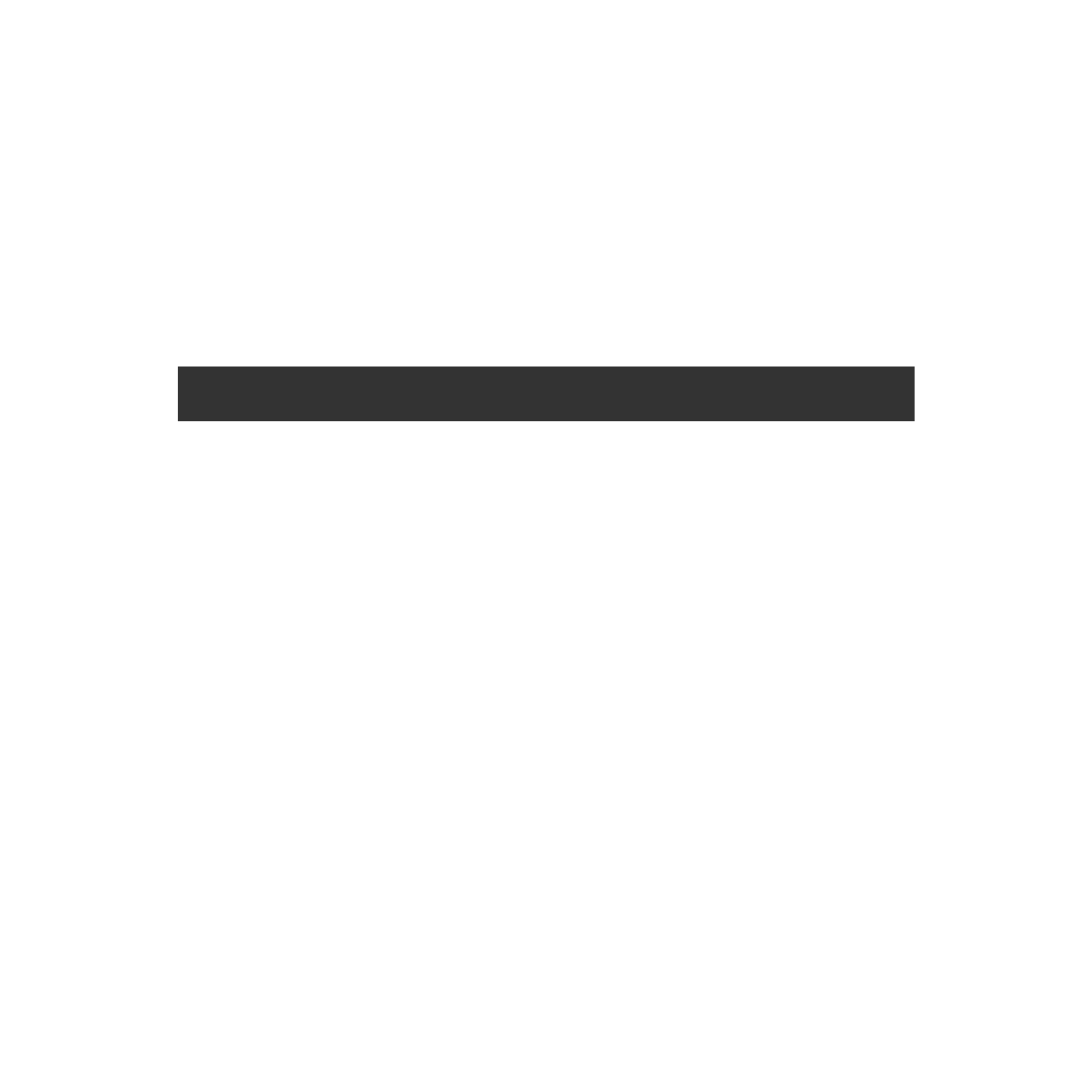

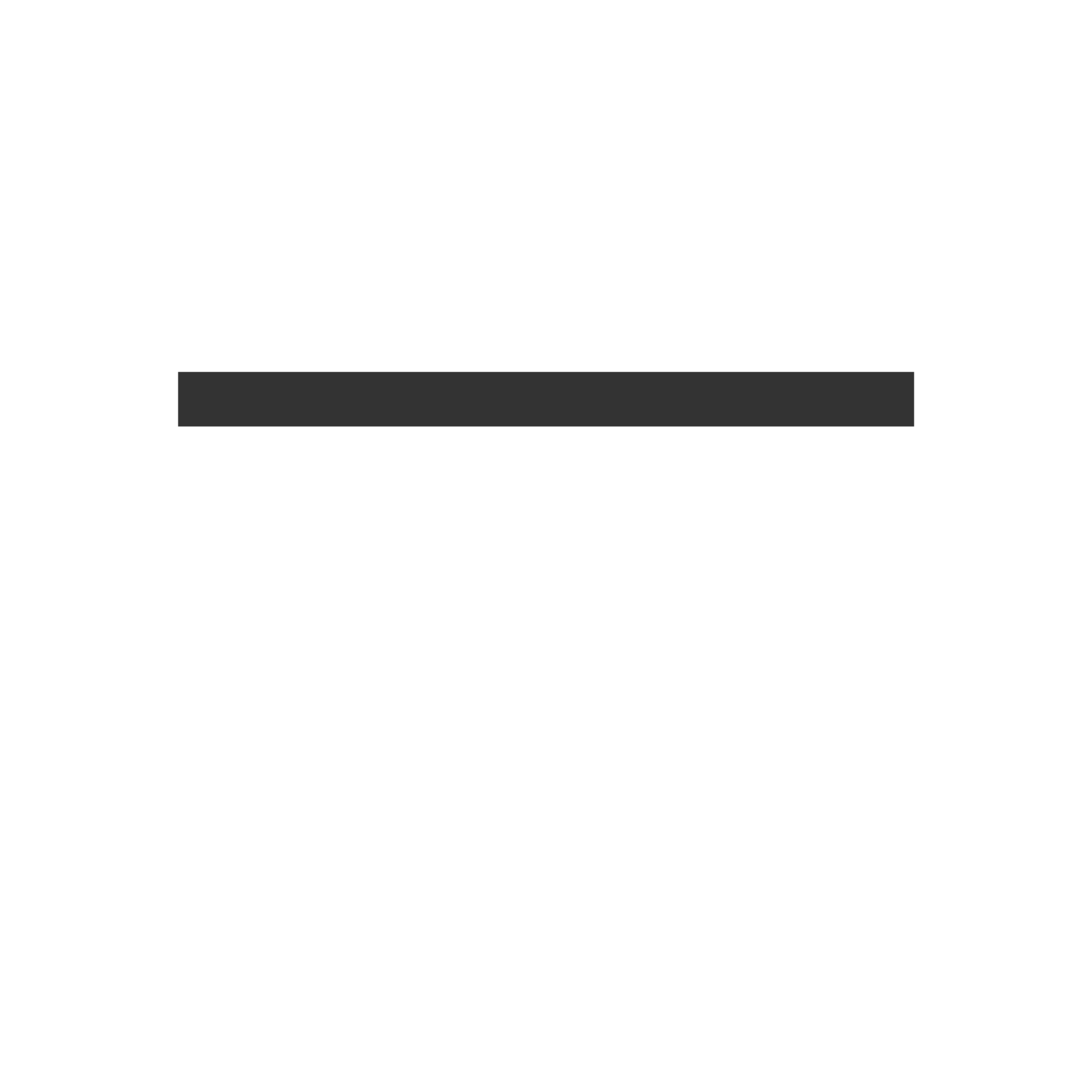

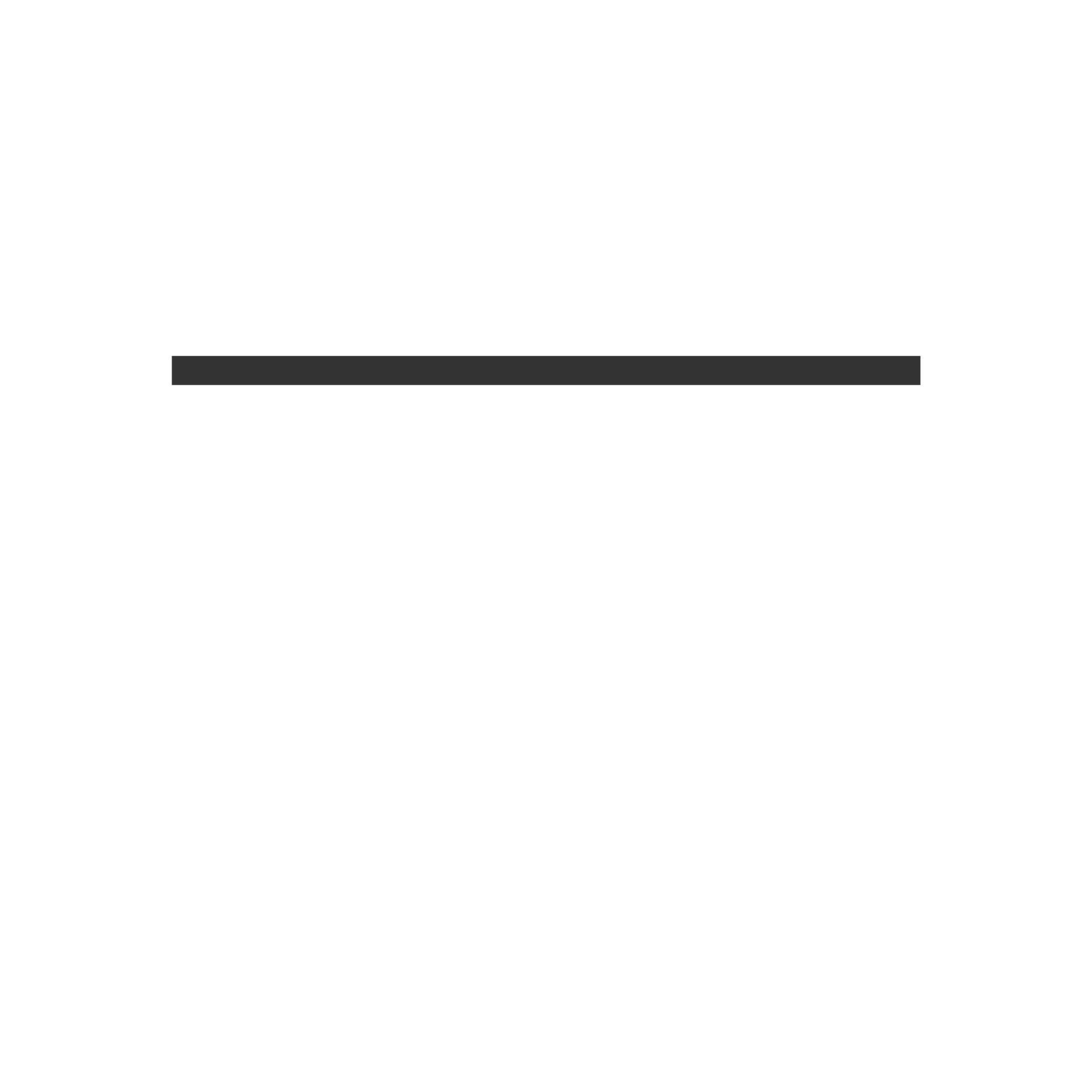

Dimensions
Location: Bartenbach GmbH, Austria
