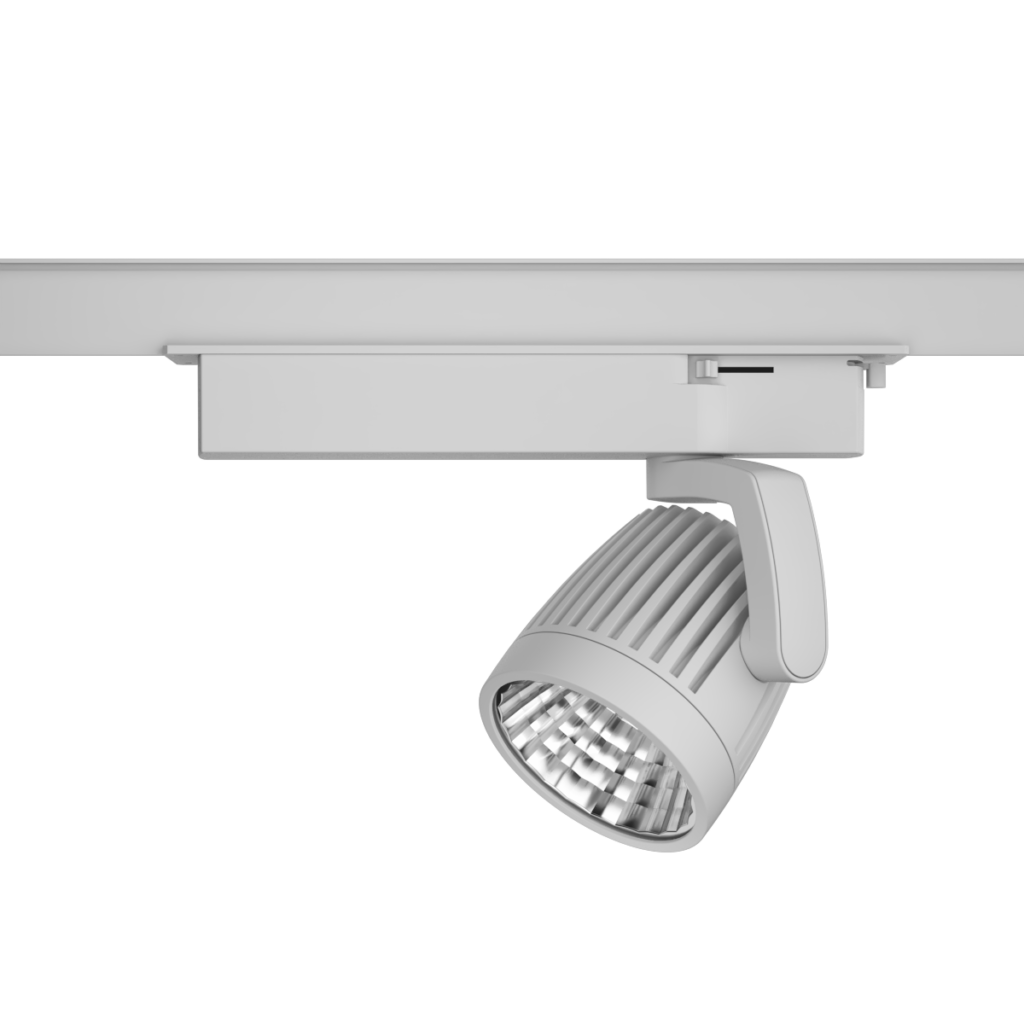

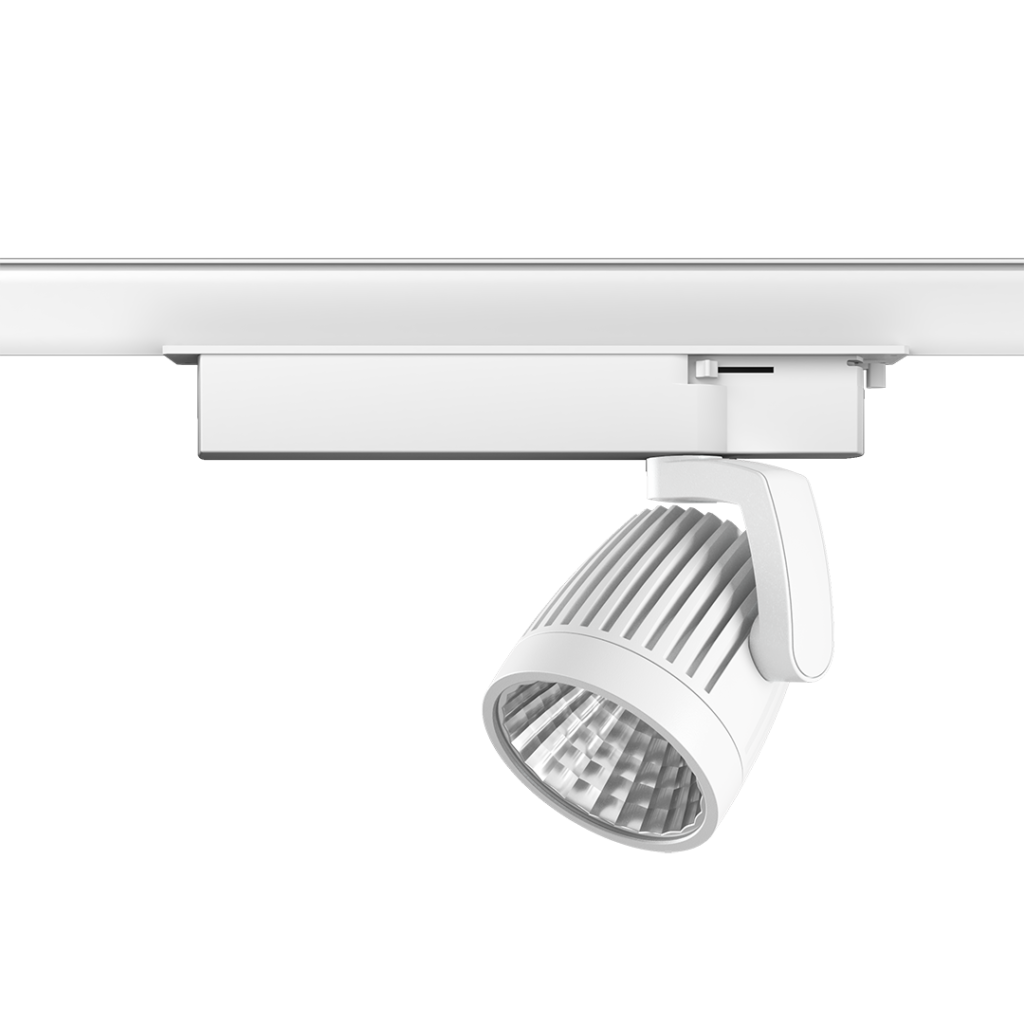

Product Description
Carefully crafted optics
in collaboration with
Bartenbach
Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
Design
Optics
Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area.
Design
Build
Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.
Design
Power Source
On-Off/ Dali2/DT8/AD/TD/BLE
Product Specifications
Filter Options
Filter By Color Temprature
Filter By Beam Angle
Filter By Wattage
Filter By Efficacy
Product Specifications
Color Temperature (CCT) | Luminaire Dimension | Beam Angle | Wattage | Lumens | UGR | IP Rating | Efficacy | Product Code |
---|---|---|---|---|---|---|---|---|
3000K | - | 19º | 35W | 3453 lm | <16 | IP20 | 99 lm/W | Ray M HSG Track Spotlight 3K 19º |
3000K | - | 27º | 35W | 3486 lm | <15 | IP20 | 98 lm/W | Ray M HSG Track Spotlight 3K 27º |
3000K | - | 64º | 36W | 3491 lm | <20 | IP20 | 98 lm/W | Ray M HSG Track Spotlight 3K 64º |
3500K | - | 20º | 34W | 3821 lm | <14 | IP20 | 111 lm/W | Ray M HSG Track Spotlight 3.5K 20º |
3500K | - | 27º | 34W | 3811 lm | <16 | IP20 | 110 lm/W | Ray M HSG Track Spotlight 3.5K 27º |
3500K | - | 63º | 34W | 3757 lm | <19 | IP20 | 109 lm/W | Ray M HSG Track Spotlight 3.5K 63º |
4000K | - | 20º | 35W | 3593 lm | <15 | IP20 | 104 lm/W | Ray M HSG Track Spotlight 4K 20º |
4000K | - | 27º | 35W | 3623 lm | <16 | IP20 | 104 lm/W | Ray M HSG Track Spotlight 4K 27º |
4000K | - | 64º | 35W | 3626 lm | <19 | IP20 | 105 lm/W | Ray M HSG Track Spotlight 4K 64º |

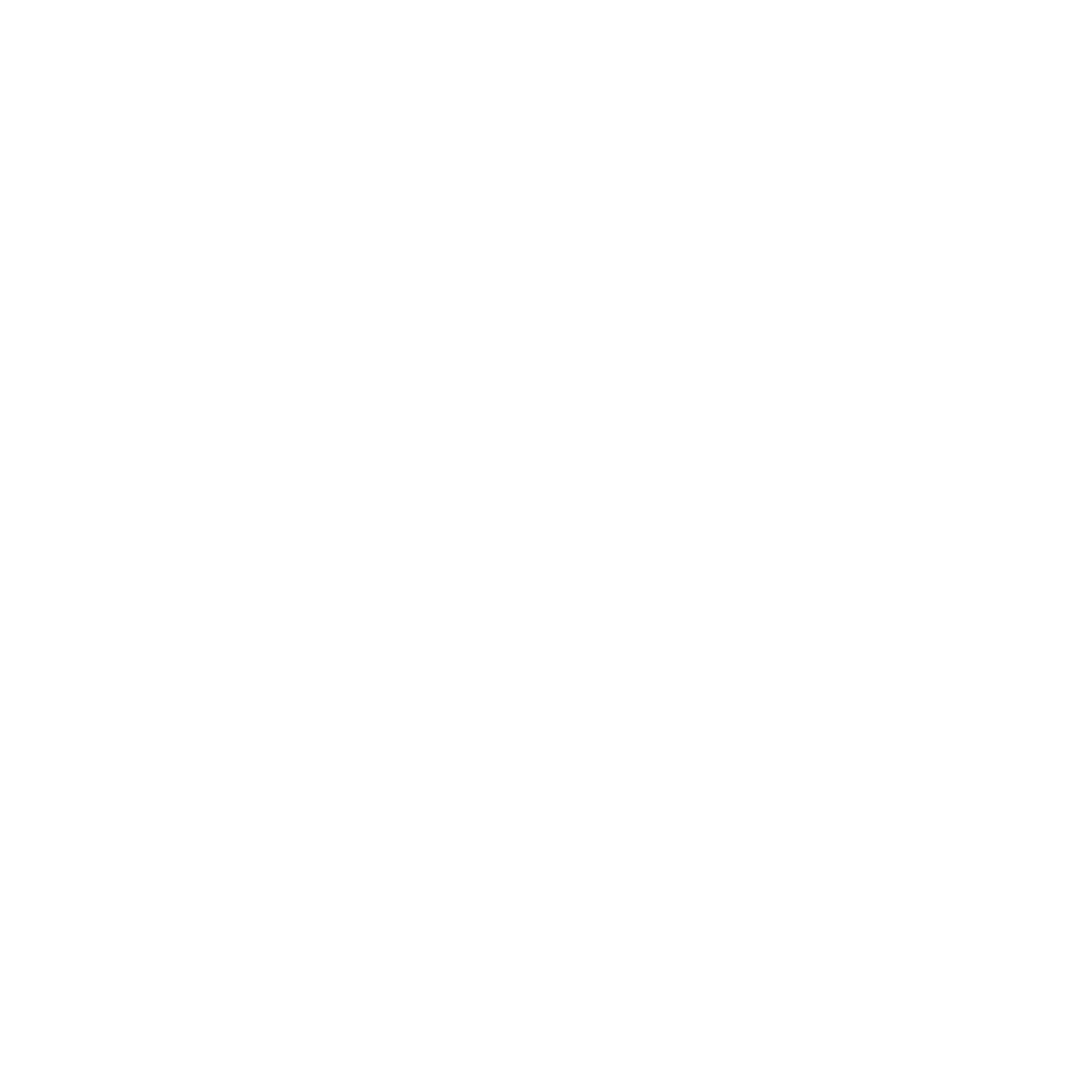

Dimensions
