Product Description
Carefully crafted optics
in collaboration with
Bartenbach

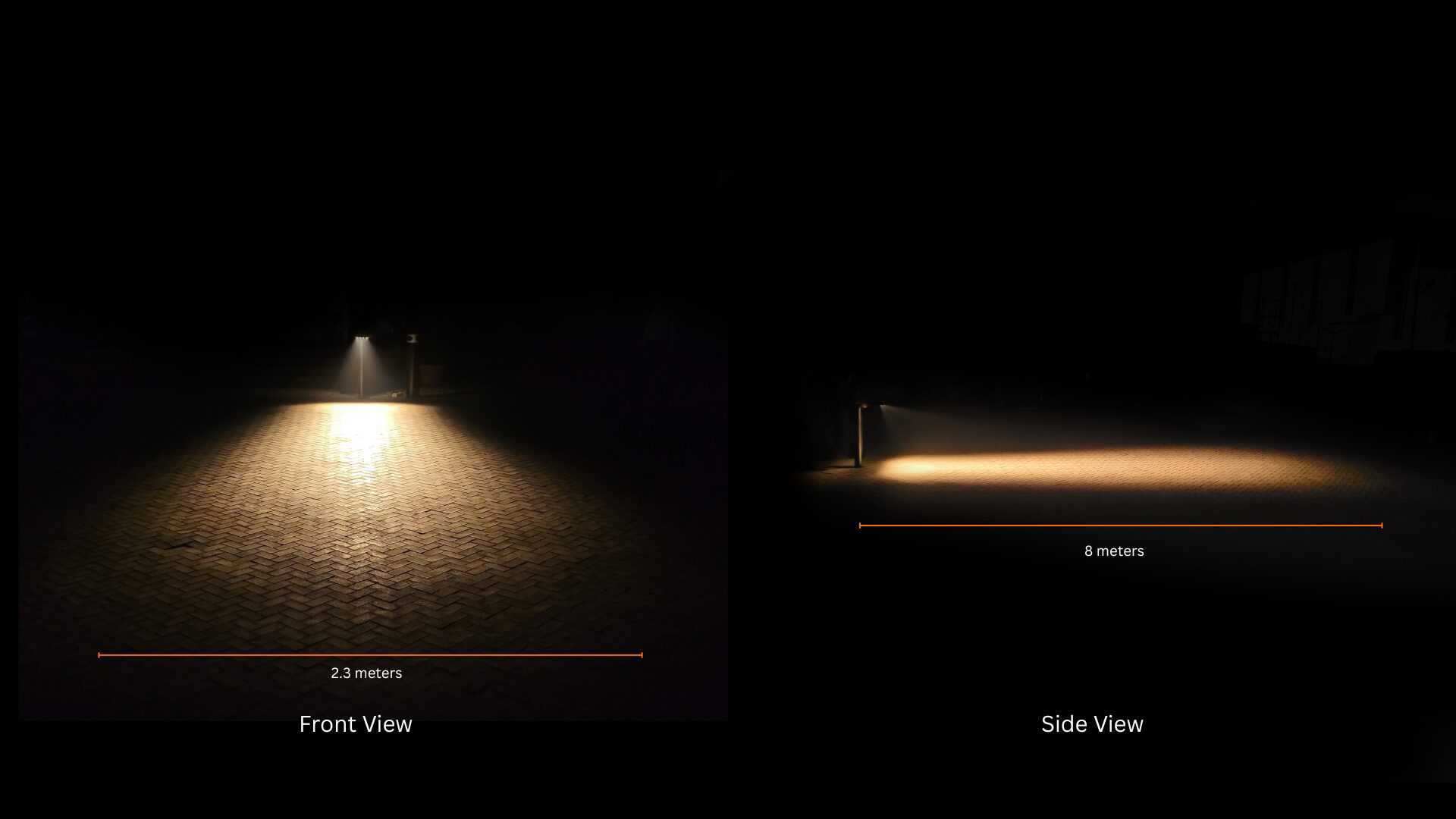

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.
Traditional Fixtures
Plus Light Tech’s Fixtures
State of the Art Optics
Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.
Design
Optics
Optic used for this application is having uniform light distribution with longitudal glare control and high efficiency. Beam angle is assymetric
Design
Build
Fixture housing is constructed with pressure die cast lamp housing body and extruded aluminum pole and other material housing grade with copper content less than 1% to have uniform outdoor grade special powder coating RAL7016/RAL7002/RAL9005 having higher salt spray life tested 1000hrs
Design
Power Source
On-Off/Dali2.0 Dim
Product Specifications
Filter Options
Filter By Color Temprature
Filter By Beam Angle
Filter By Wattage
Product Specifications
| Color Temperature (CCT) | Luminaire Dimension | Beam Angle | Wattage | Lumens | UGR | IP Rating | Product Code |
|---|---|---|---|---|---|---|---|
| 3000K / 4000K | L 223 x H 1000 | Assymetric | 20 W | 962 lm | <19 | IP20 | Razor Forward Throw |
Dimensions
Location: Bartenbach GmbH, Austria
