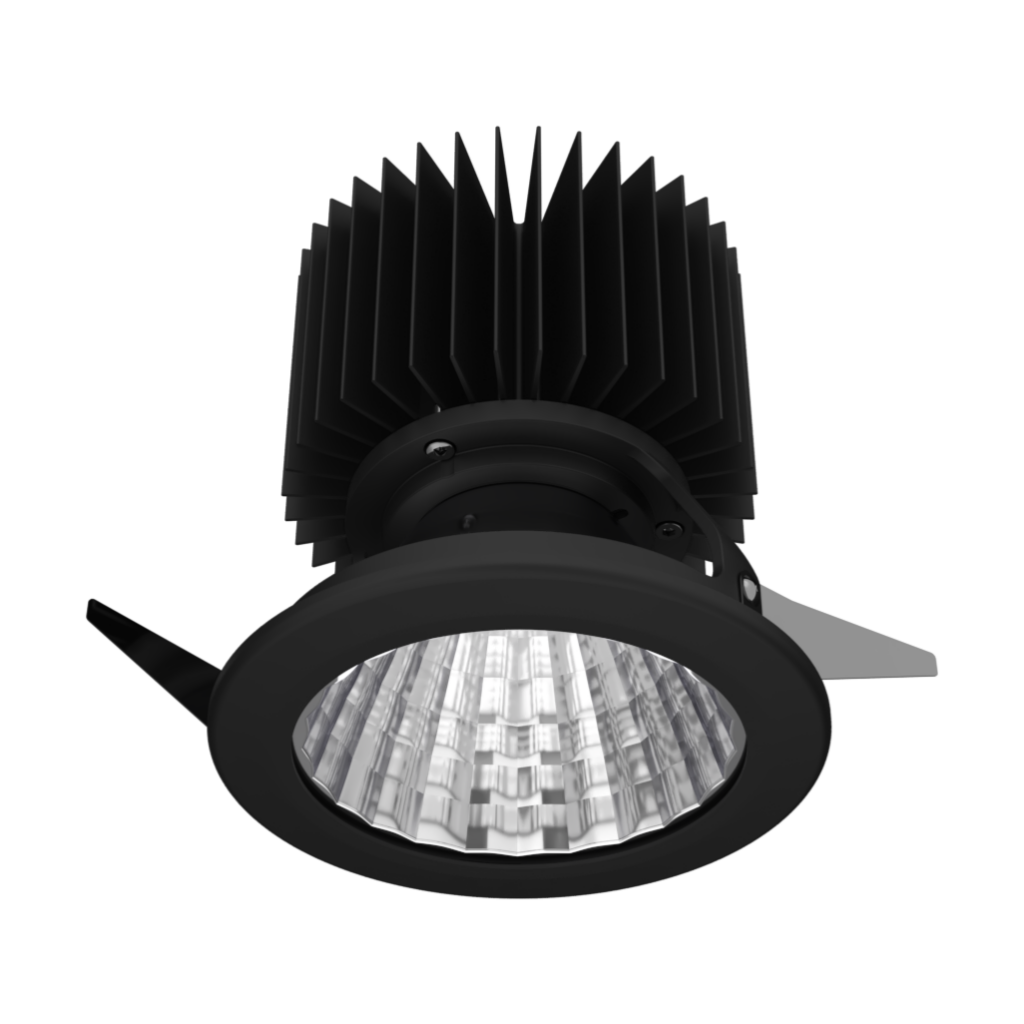

Xtra M Recessed Downlight

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.
Display Image
Display Image

Xtra M Recessed Downlight

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area.

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

On-Off/ Dali2/DT8/AD/TD/BLE

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Xtra M Recessed Downlight 3K 19º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

19º

Wattage

42W

Lumens

3526 lm

UGR

<12

IP Rating

IP20
Xtra M Recessed Downlight 3K 58º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

58º

Wattage

41W

Lumens

3411 lm

UGR

<19

IP Rating

IP20
Xtra M Recessed Downlight 3K 27º

Color Temperature (CCT)

3000K

Luminaire Dimension

-

Beam Angle

27º

Wattage

41W

Lumens

3492 lm

UGR

<10

IP Rating

IP20
Xtra M Recessed Downlight 4K 27º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

27º

Wattage

41W

Lumens

3620 lm

UGR

<10

IP Rating

IP20
Xtra M Recessed Downlight 3.5K 58º

Color Temperature (CCT)

3500K

Luminaire Dimension

-

Beam Angle

58º

Wattage

41W

Lumens

3534 lm

UGR

<18

IP Rating

IP20
Xtra M Recessed Downlight 3.5K 27º

Color Temperature (CCT)

3500K

Luminaire Dimension

-

Beam Angle

27º

Wattage

41W

Lumens

3637 lm

UGR

<11

IP Rating

IP20
Xtra M Recessed Downlight 3.5K 20º

Color Temperature (CCT)

3500K

Luminaire Dimension

-

Beam Angle

20º

Wattage

41W

Lumens

3682 lm

UGR

<10

IP Rating

IP20
Xtra M Recessed Downlight 4K 20º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

20º

Wattage

40W

Lumens

3660 lm

UGR

<10

IP Rating

IP20
Xtra M Recessed Downlight 4K 59º

Color Temperature (CCT)

4000K

Luminaire Dimension

-

Beam Angle

59º

Wattage

40W

Lumens

3415 lm

UGR

<20

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT) Luminaire Dimension Beam Angle Wattage Lumens UGR IP Rating Efficacy Product Code
3000K - 19º 42W 3526 lm <12 IP20 85 lm/W Xtra M Recessed Downlight 3K 19º
3000K - 27º 41W 3492 lm <10 IP20 84 lm/W Xtra M Recessed Downlight 3K 27º
3000K - 58º 41W 3411 lm <19 IP20 82 lm/W Xtra M Recessed Downlight 3K 58º
3500K - 20º 41W 3682 lm <10 IP20 90 lm/W Xtra M Recessed Downlight 3.5K 20º
3500K - 27º 41W 3637 lm <11 IP20 89 lm/W Xtra M Recessed Downlight 3.5K 27º
3500K - 58º 41W 3534 lm <18 IP20 86 lm/W Xtra M Recessed Downlight 3.5K 58º
4000K - 20º 40W 3660 lm <10 IP20 91 lm/W Xtra M Recessed Downlight 4K 20º
4000K - 27º 41W 3620 lm <10 IP20 88 lm/W Xtra M Recessed Downlight 4K 27º
4000K - 59º 40W 3415 lm <20 IP20 85 lm/W Xtra M Recessed Downlight 4K 59º

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
