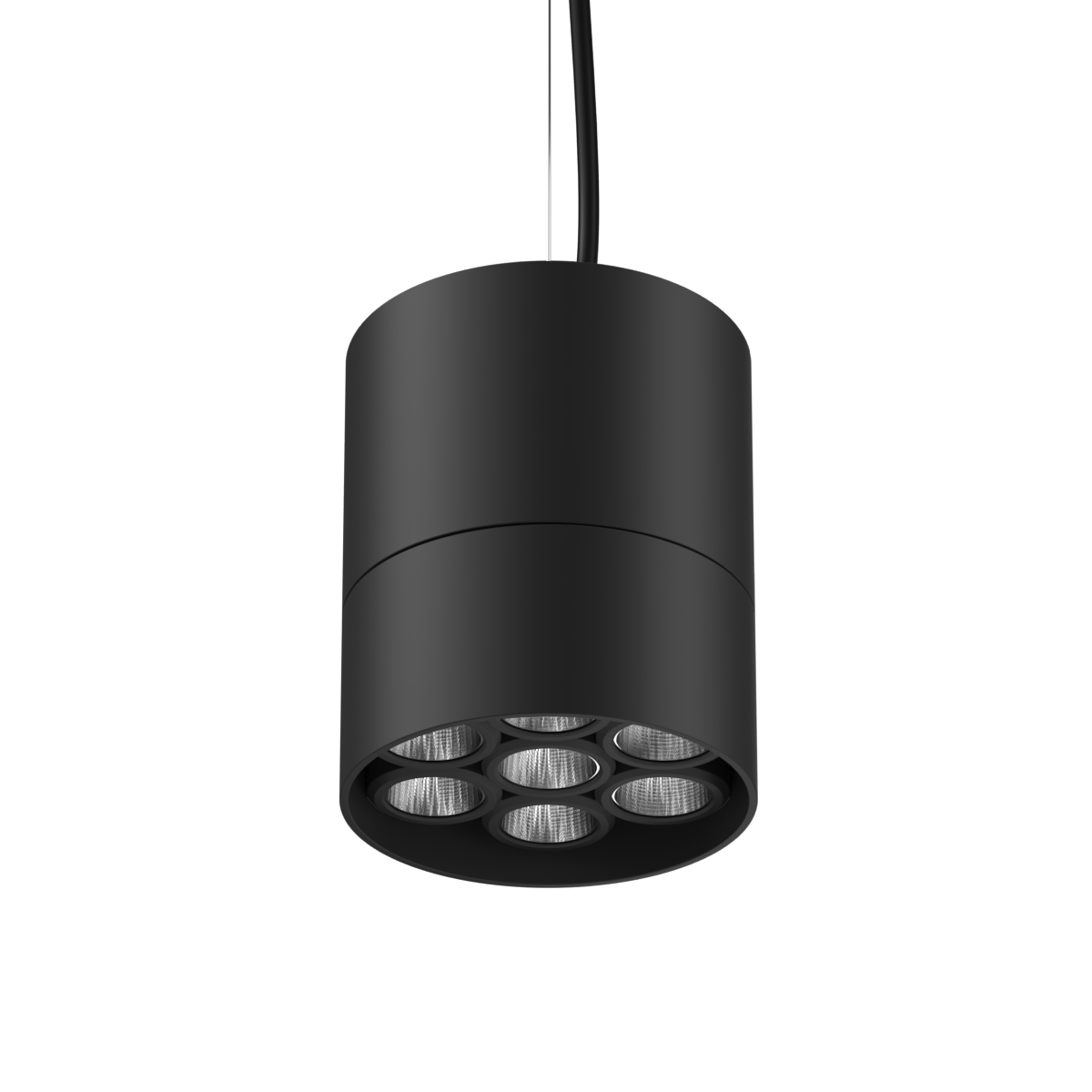

Array 7x Pendant Downlight 57K Wide

Array 7x Pendant Downlight Wide

800 mA

Introducing Suspended spotlight
that highlight the desired subject or place and provide
optimum illumination by being nondescript.

The simplicity of its form provides smooth integration
in architectural features.

Fixture Color Black / White IP Rating IP20
Color Temperature 5700K IK rating
System Wattage 35 W Bining ≤3SDCM
System Lumens 3696 lm CRI >90
Efficacy 106 lm/W Life time L80/B10 (>50,000hrs@Ta-30°C)
DC Current 800 mA Driver Non Integrated
Efficiency >92% Control On-Off/ Dali 2.0/ DT8.0/ BLE/ AD/ TD
Beam Angle 85º Fixture Size
UGR <27 Cutout
Weight



/ Downloads

PL06822

/ Downloads

Technical Data

Photometric data: IES
