DIONE COVE 27K

DIONE COVE 27K

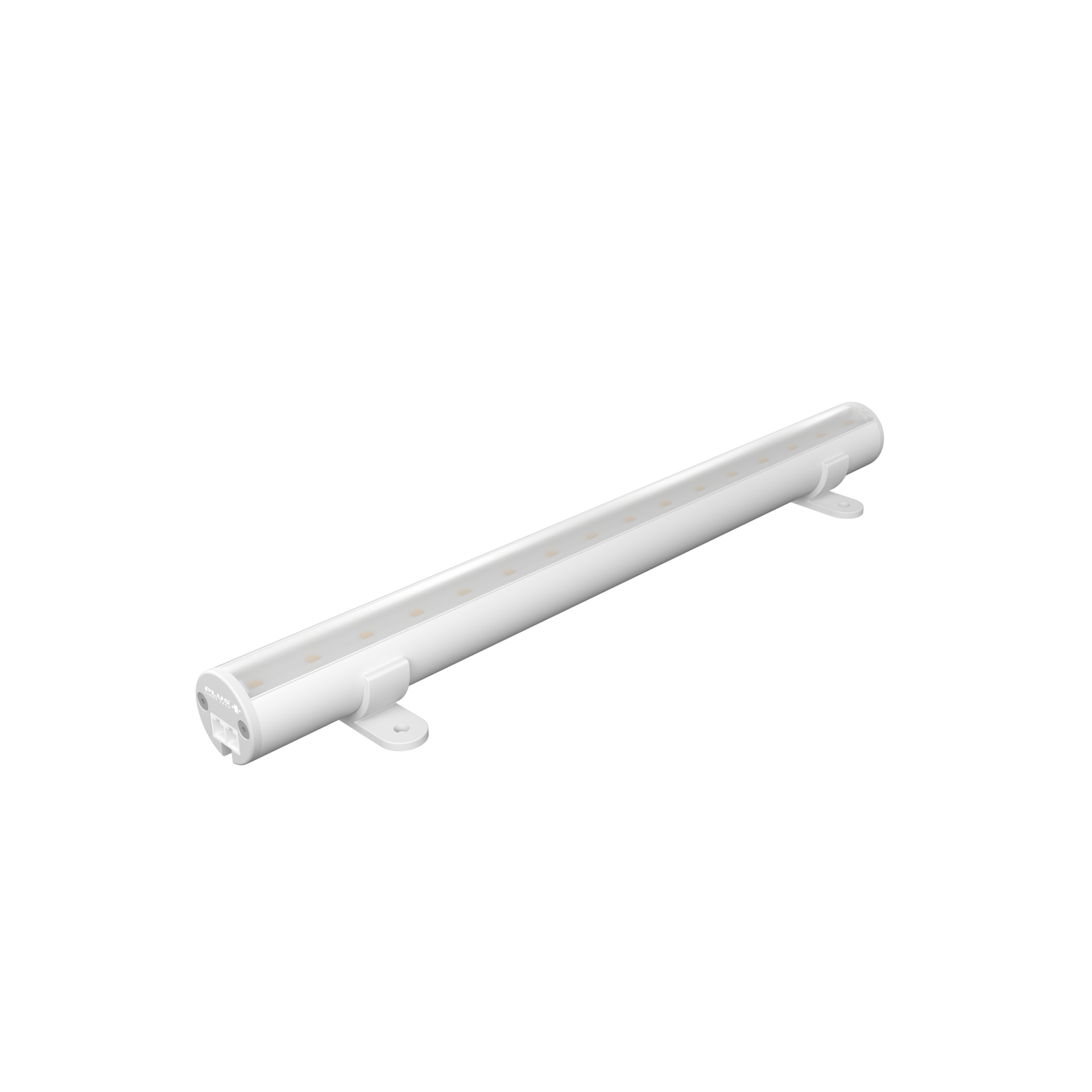

Introducing surface linear lights that provide a seamless
look and clean elegance. These luminaires, by their
design hide the fixtures to allow the light itself to play
the dominant role.

These fixtures are modular and can be extended for
desired length without any requirements.

Fixture Color Black / White IP Rating IP20
Color Temperature 2700K IK rating
System Wattage 8W (300mm) Bining ≤3SDCM
System Lumens 729lm CRI >90
Efficacy 94lm/W Life time L80/B10(>50,000hrs@Ta-30Deg C)
DC Current Driver Non Integrated
Efficiency >65% Control On-Off/ Dali 2.0/DT8/BLE
Beam Angle 103º Fixture Size L 1200 x H 30
UGR <25 Cutout
Weight 200gm



/ Downloads

PL06822

/ Downloads

Technical Data

Photometric data: IES
