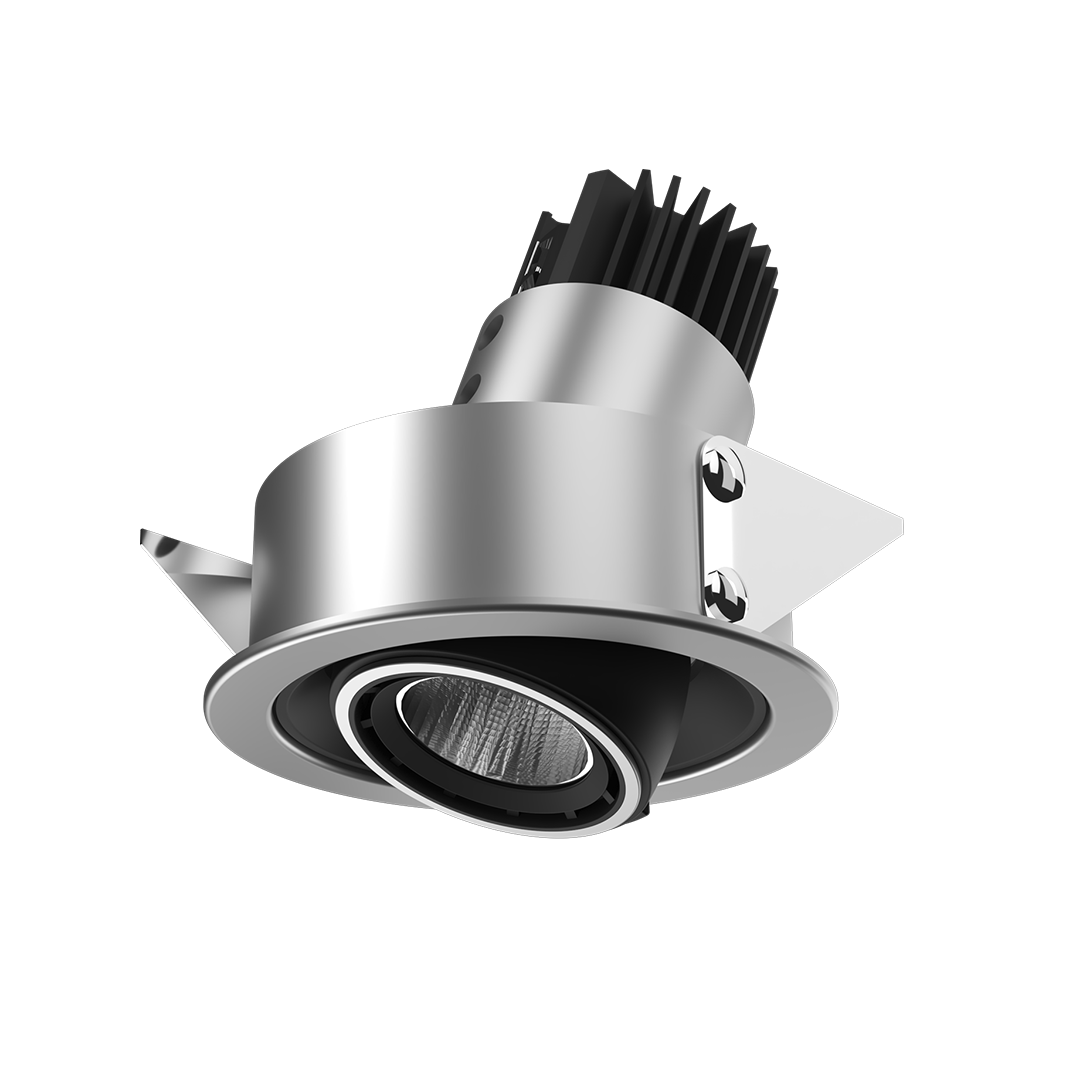

Magnus 1x Adjustable Recessed 3K Wide

Magnus 1x Recessed Wide Adj.

350 mA

Introducing ceiling-recessed downlight that
highlight the desired subject or place and provide
optimum illumination by being nondescript.
The simplicity of its form provides smooth integration
in architectural features.

Fixture Color Metallic Silver / Black / White IP Rating IP20
Color Temperature 3000K IK rating
System Wattage 5 W Bining ≤3SDCM
System Lumens 428 lm CRI >90
Efficacy 78 lm/W Life time L80/B10 (>50,000hrs@Ta-30°C)
DC Current 350 mA Driver Non Integrated
Efficiency >92% Control On-Off/ Dali 2.0/BLE/AD/ TDOn-TD
Beam Angle 85º Fixture Size 74 x 78
UGR <32 Cutout 67
Weight

/ Downloads

PL06822

/ Downloads

Technical Data

Photometric data: IES
