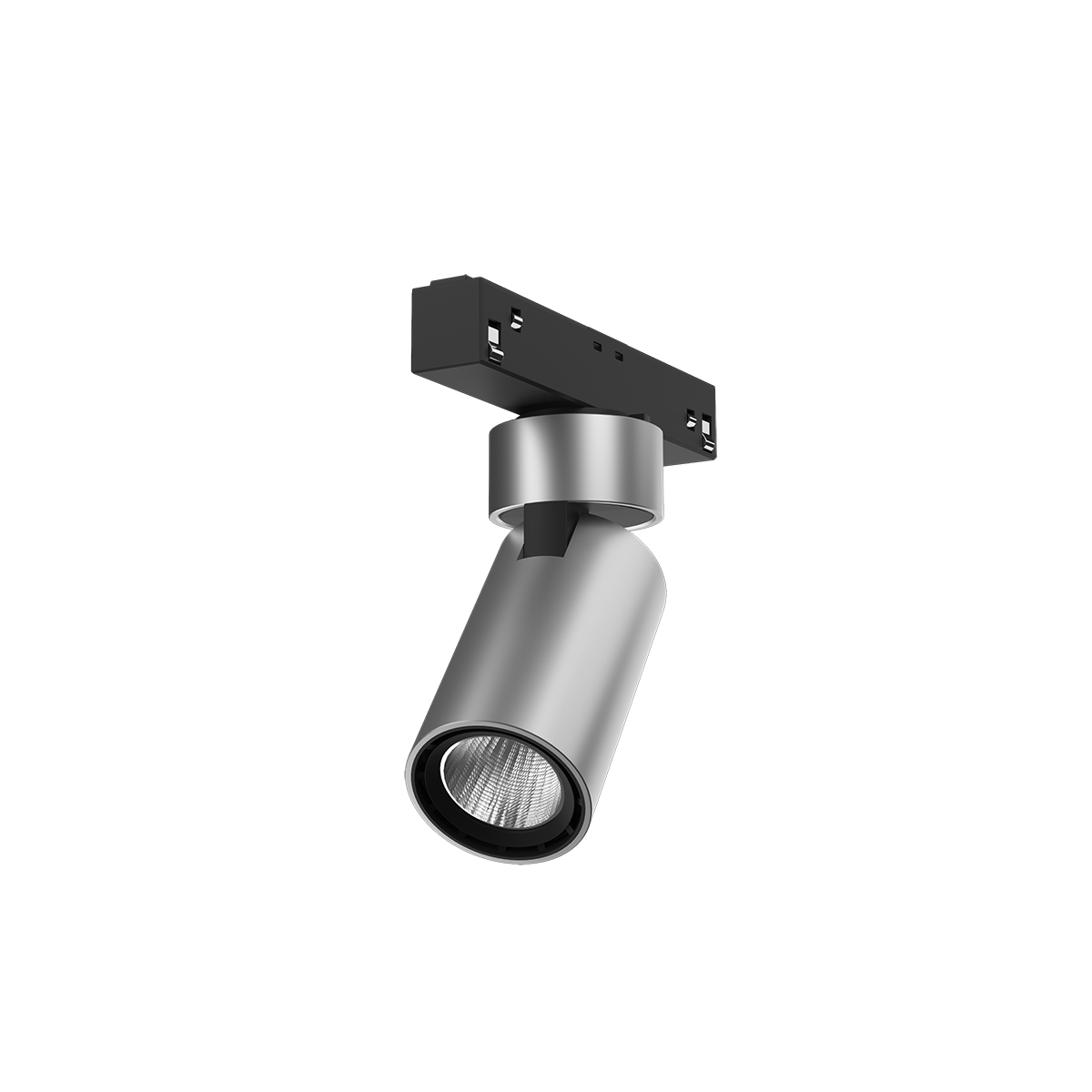

Magnus 1x Track LVCD 4K Wide

/ Magnus 1x LVDC Track Spot Wide

350 mA

Introducing track mounted spotlight that
highlight the desired subject or place and provide
optimum illumination by being nondescript.
The simplicity of its form provides smooth integration
in architectural features.

Fixture Color Metallic Silver / Black / White IP Rating IP20
Color Temperature 4000K IK rating
System Wattage 6 W Bining ≤3SDCM
System Lumens 480 lm CRI >90
Efficacy 86 lm/W Life time L80/B10 (>50,000hrs@Ta-30°C)
DC Current 350 mA Driver Integrated
Efficiency >92% Control On-Off/ Dali 2.0/BLE
Beam Angle 83º Fixture Size 36 x 106.5
UGR <35 Cutout
Weight

/ Downloads

PL06822

/ Downloads

Technical Data

Photometric data: IES
