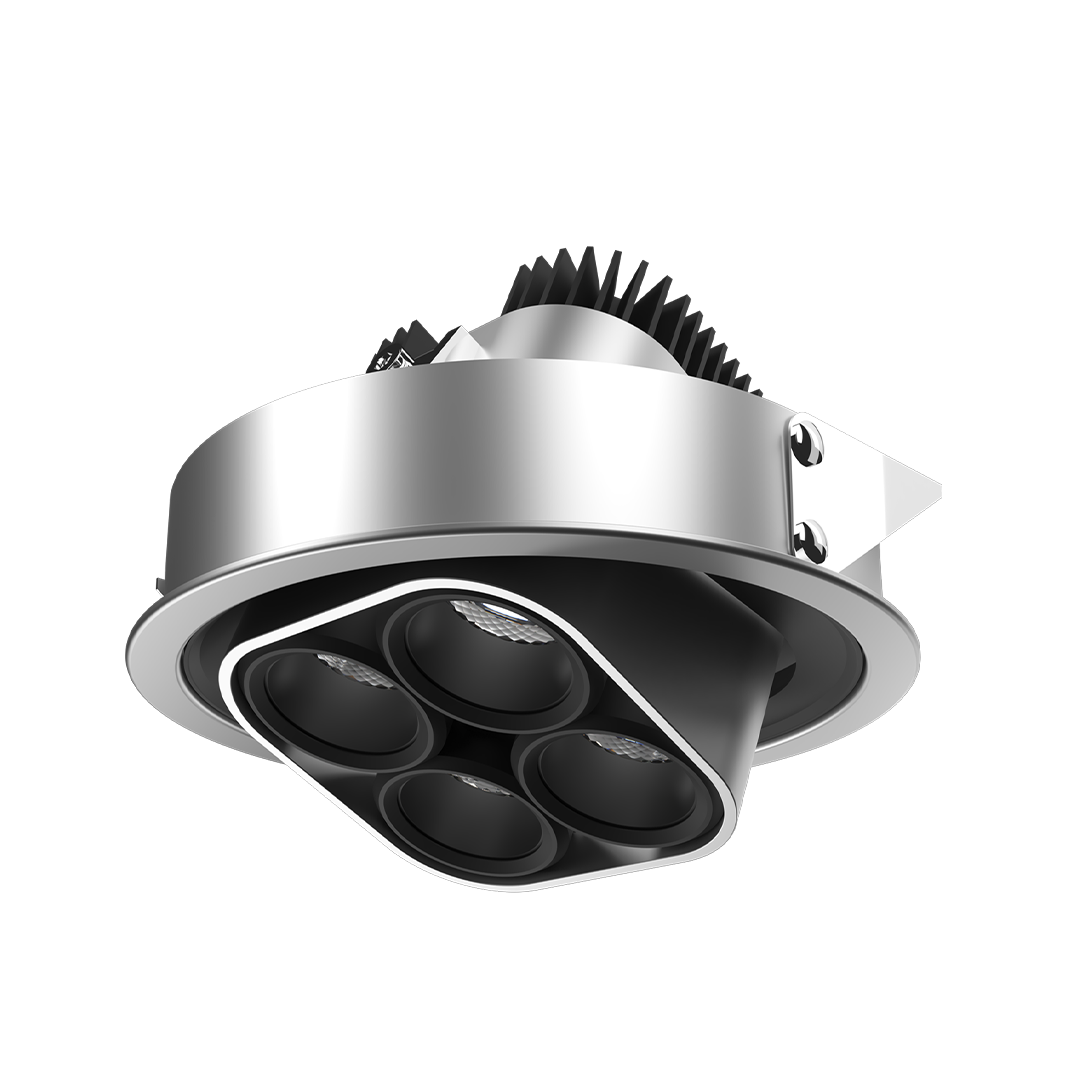

Magnus 4x Recessed Superspot Adj 3K

Magnus 4x Square Recessed Superspot Adj

700 mA

Introducing ceiling-recessed downlight that
highlight the desired subject or place and provide
optimum illumination by being nondescript.
The simplicity of its form provides smooth integration
in architectural features.

Fixture Color Metallic Silver / Black / White IP Rating IP20
Color Temperature 3000K IK rating
System Wattage 19 W Bining ≤3SDCM
System Lumens 1118 lm CRI >90
Efficacy 59 lm/W Life time L80/B10 (>50,000hrs@Ta-30°C)
DC Current 700 mA Driver Non Integrated
Efficiency  >92% Control On-Off/ Dali 2.0/BLE/AD/ TD
Beam Angle 16º Fixture Size L 119 x H 68
UGR <4 Cutout
Weight



/ Downloads

PL06822

/ Downloads

Technical Data

Photometric data: IES
