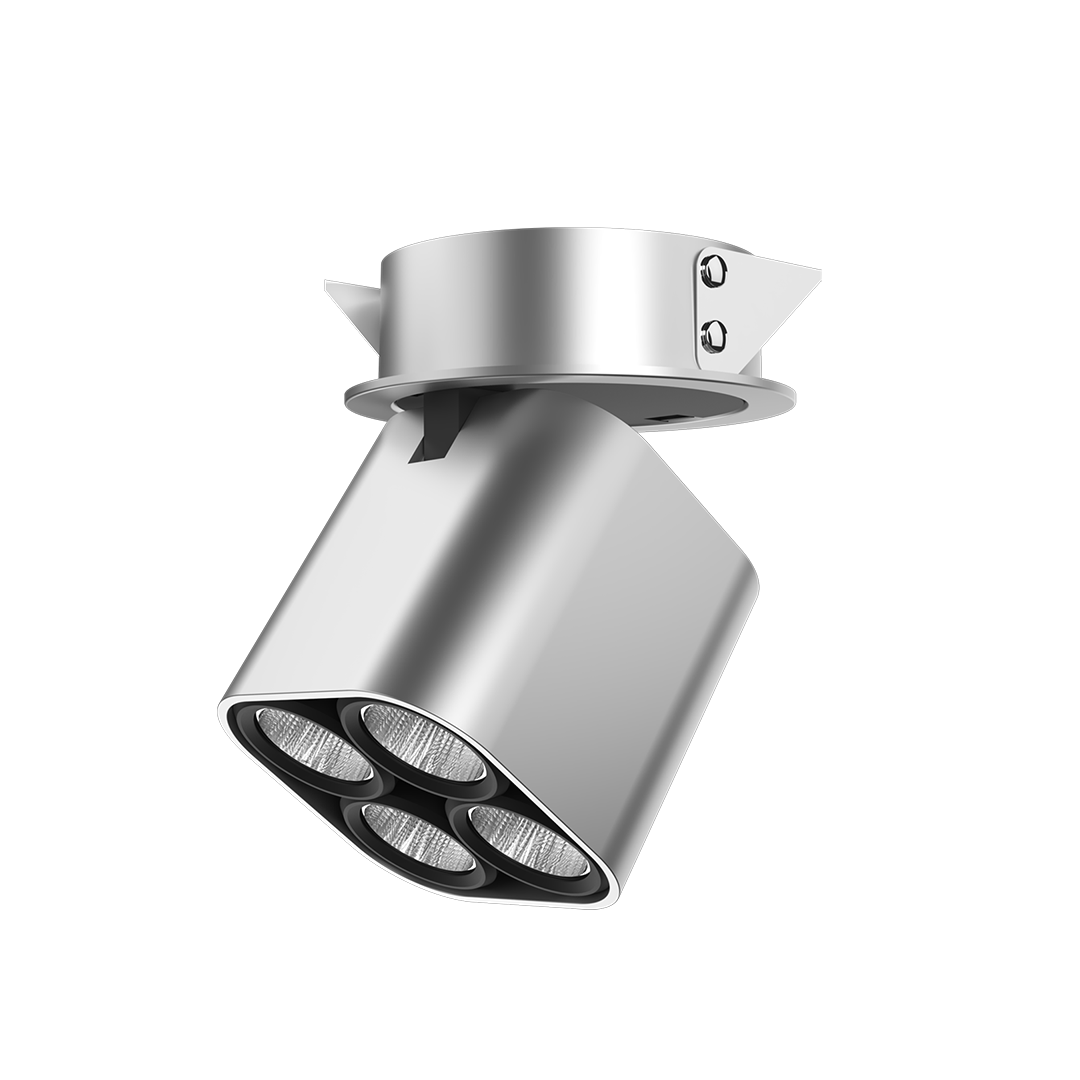

Magnus 4x Semi Recessed Square 3K Narrow

/ Magnus 4x Square Semi Recessed Narrow

700 mA

Introducing ceiling- semi recessed downlight that
highlight the desired subject or place and provide
optimum illumination by being nondescript.
The simplicity of its form provides smooth integration
in architectural features.

Fixture Color Metallic Silver / Black / White IP Rating IP20
Color Temperature 3000K IK rating
System Wattage 19 W Bining ≤3SDCM
System Lumens 1430 lm CRI >90
Efficacy 75 lm/W Life time L80/B10 (>50,000hrs@Ta-30°C)
DC Current 700 mA Driver Non Integrated
Efficiency Control On-Off/ Dali 2.0/ DT8.0/ BLE/AD/ TD
Beam Angle 35º Fixture Size L 87 x H 98.5
UGR <3 Cutout 77.4
Weight

/ Downloads

PL06822

/ Downloads

Technical Data

Photometric data: IES
