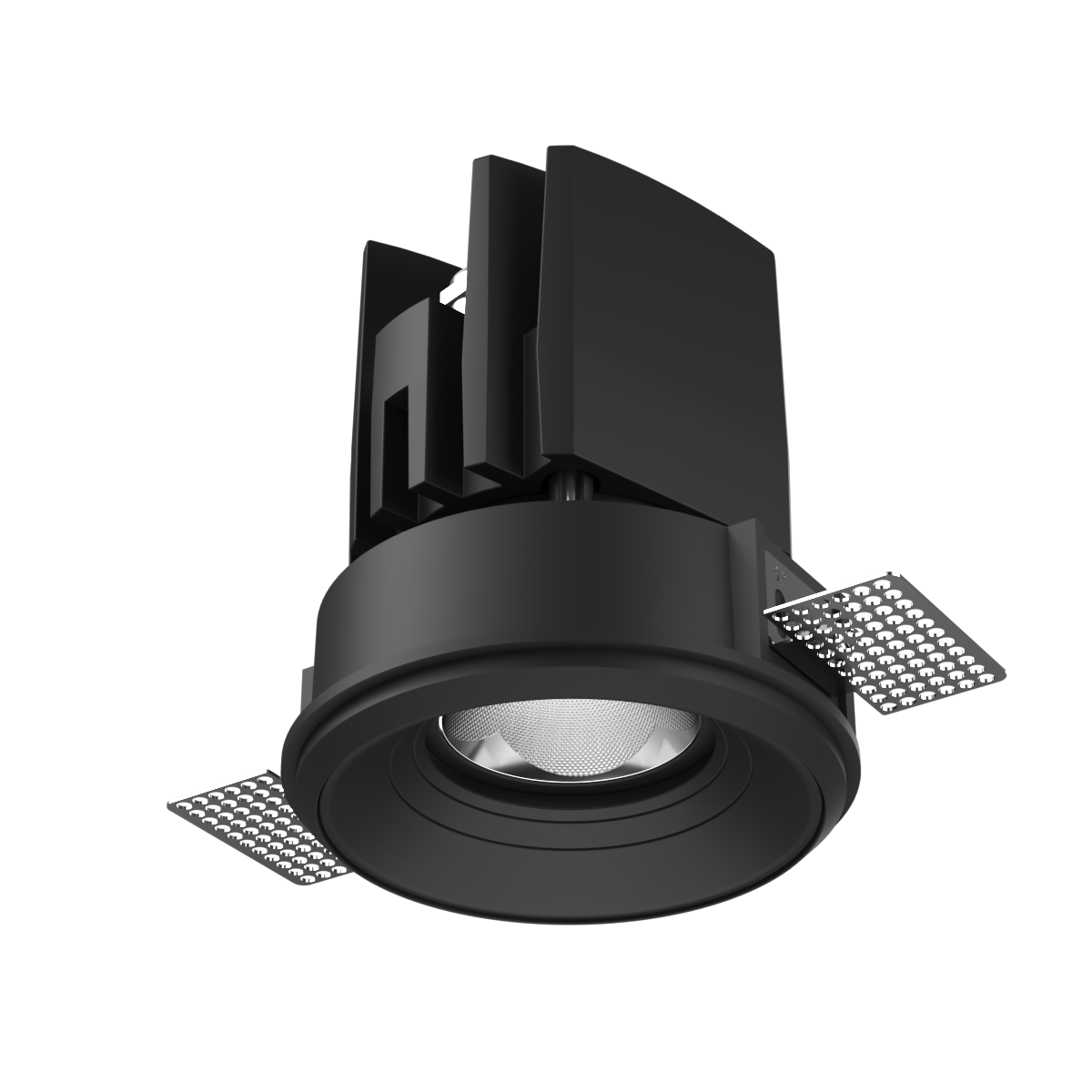

Opti Medium Trimless 3K N

Opti Medium Trimless 3K Narrow

500 mA

Introducing ceiling- trimless Downlight
that highlight the desired subject or place and provide
optimum illumination by being nondescript.
The simplicity of its form provides smooth integration
in architectural features.

Fixture Color Black / White IP Rating IP20
Color Temperature 3000K IK rating
System Wattage 19 W Bining ≤3SDCM
System Lumens 1730 lm CRI >90
Efficacy 89 lm/W Life time L80/B10 (>50,000hrs@Ta-30°C)
DC Current 500 mA Driver Non Integrated
Efficiency 80% Control On-Off / DALI 2.0 / AD / TD / BLE
Beam Angle 35º Fixture Size L 86 x H 109
UGR <9 Cutout
Weight 140gm



/ Downloads

PL06822

/ Downloads

Technical Data

Photometric data: IES
