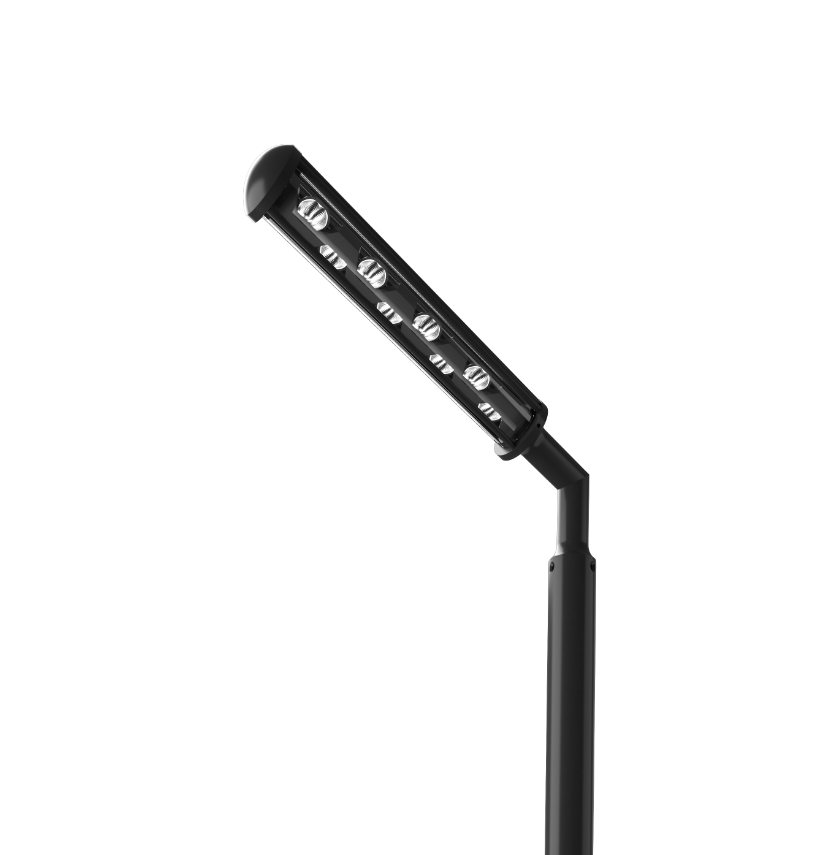

SCOPIC SHS 8X 3K 41°

SCOPIC SHS 8X

400mA

Design: Plus Light Tech
Great light and projection uniformity, without glare. Asymmetrical light distribution. The simplicity of its form provides smooth integration in architectural features.

Fixture Color Black IP Rating IP66
Color Temperature 3000K LED Make CREE
System Wattage 21W Bining 3SDCM
System Lumens 1629 lm CRI >90
Efficacy 78 lm/W Life time L80/B10 (>50,000hrs@Ta-30°C)
DC Current 400mA Driver Non-Integrated
Efficiency >92% Control On-Off/ Dali 2.0/ DT8.0/ BLE/ AD/ TD
Beam Angle 41° Fixture Size –
UGR <9 Cutout NA
Weight 5.5Kg IK rating IK07

/ Downloads

Technical Data / Download IES / Revit Family
