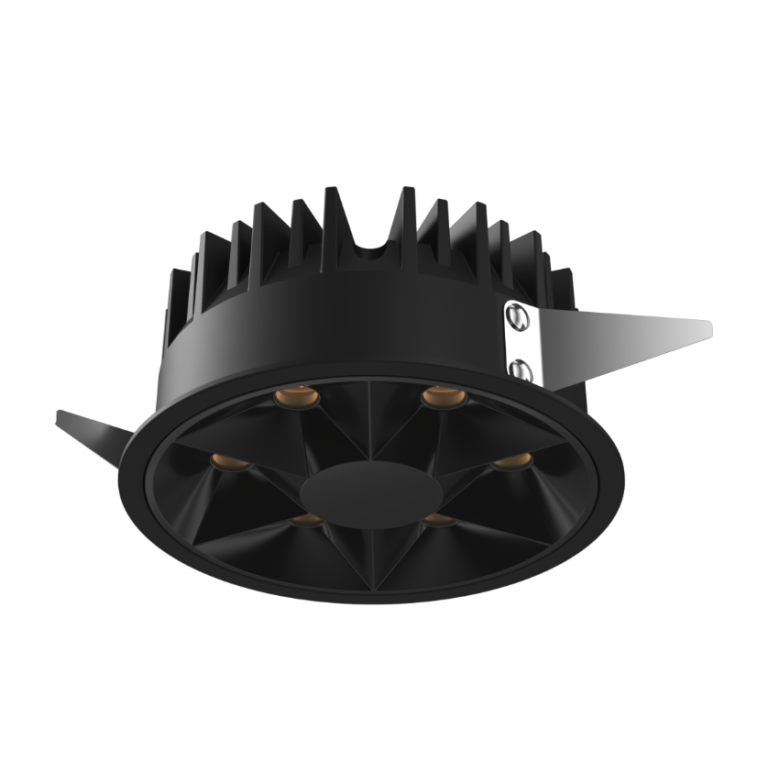

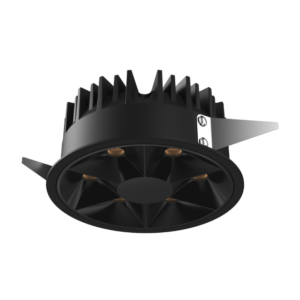

Zona Perdu 6X

The Zona Perdu is a sophisticated, recessed trimless fixture offered in round, linear, and square shapes. It has a UGR of less than 10 and provides dimmable and tuneable options, equipped with BLE and DALI drivers for advanced control and customization.

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

Design

Optics

Downlight - features wide and narrow beam light distribution, ensuring high efficiency and uniformity while seamlessly integrating into architectural elements with glare-free illumination. The spotlight can be integrated into various materials such as gypsum board, metal ceilings, wooden ceilings, and acoustic ceilings. System efficiency is rated at 90% for the lens only and 76% for the lens with a 10mm aperture, with beam angles available in 2x40°, 2x30°, 2x23°, and 2x17°.

Design

Build

The Zona Perdu is a sophisticated, recessed trimless fixture offered in round, linear, and square shapes. It has a UGR of less than 10 and provides dimmable and tuneable options, equipped with BLE and DALI drivers for advanced control and customization.

Design

Power Source

High-power SMD LED modules with exceptional color consistency (3 SDCM) and a lifespan exceeding 50,000 hours (L80/B10) are available. CRI options include >80 and >90. CCT ranges include 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, and tunable white (2200K-5700K).

Gallery

PL06822

Zona Perdu 6X

Zona Perdu 6X

/ Downloads

Technical Data

Photometric data: IES
