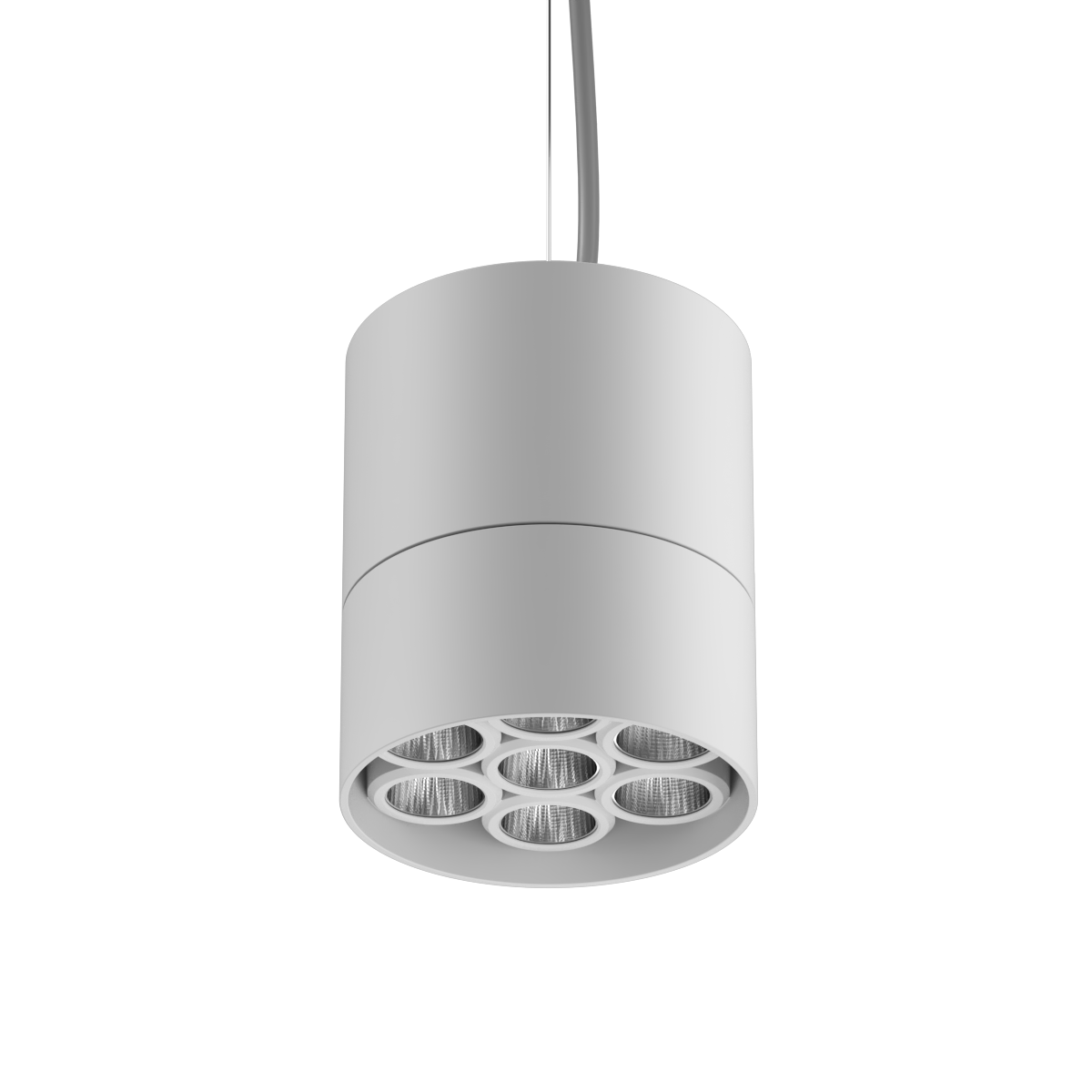

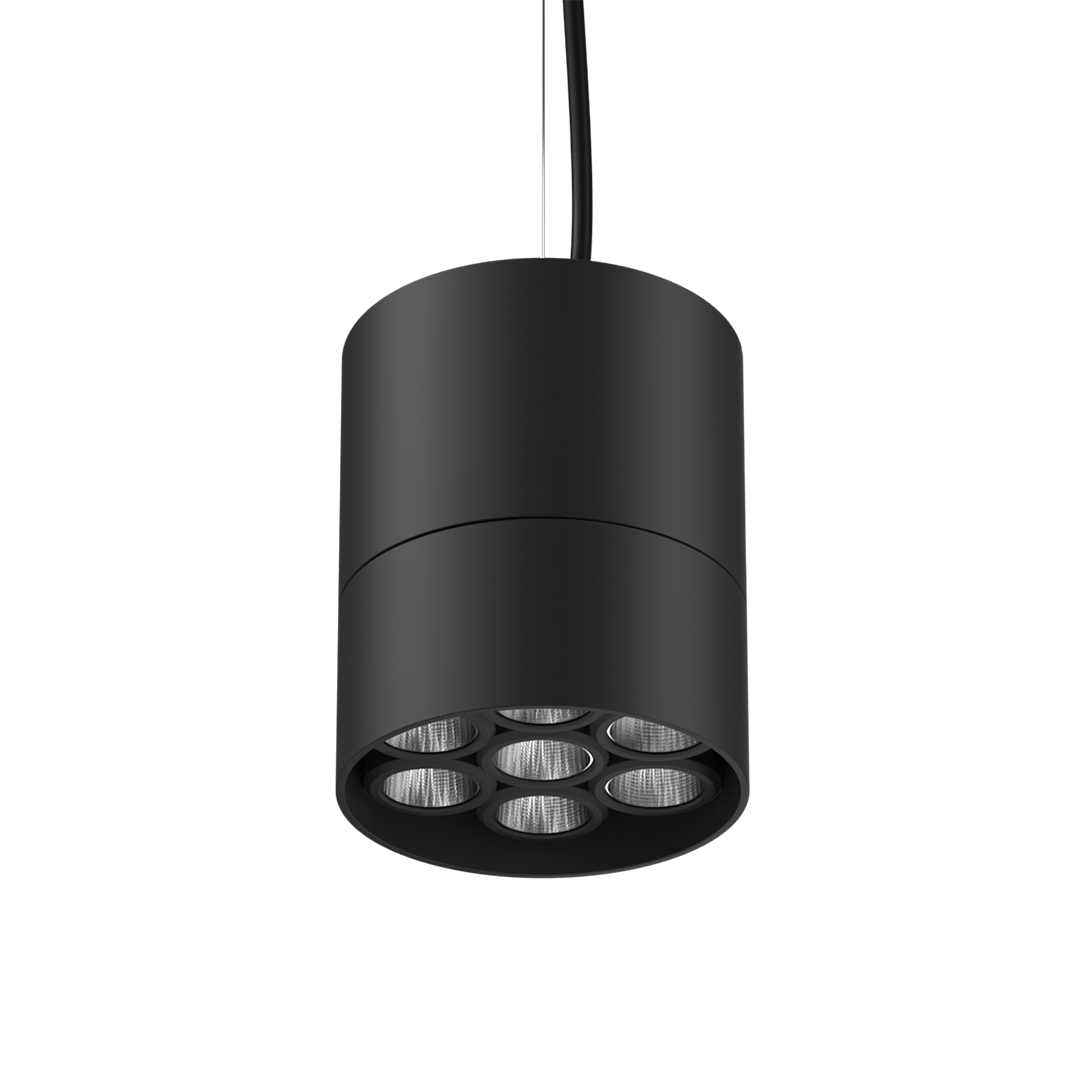

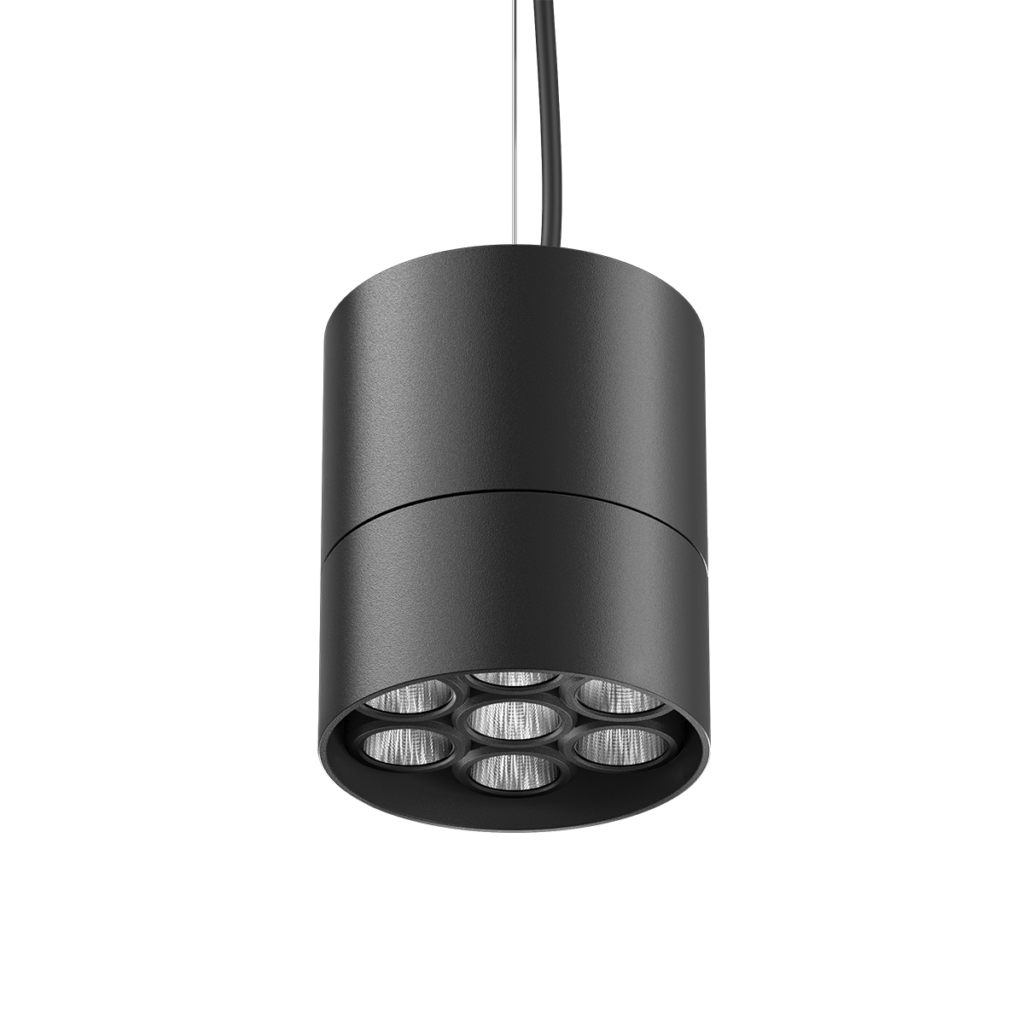

Array Pendant 7x

Product Description

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting.Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications—from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.
Display Image
Display Image

Array Pendant 7x

gallery

Carefully crafted optics

in collaboration with

Bartenbach

Specially designed light optics, where the beam angle and the field angle are close and therefore light covers the whole target and has a sharp cut-off with no light spill outside.

View PLUS TECHNOLOGY

Traditional Fixtures

Plus Light Tech’s Fixtures

State of the Art Optics

Our patented optic technology sets a new standard for lighting control and comfort boasting the industry's lowest UGR of less than 9 for all beam angles, minimising glare and maximising visual comfort. This precise light distribution allows for customisation. So, you can tune light output, achieve the perfect beam spread, and even mix colours with secondary optics. All this comes with the added benefit of exceptionally high lumen output, resulting in superior illumination and efficiency.

View PLUS TECHNOLOGY

Design

Optics

Optic is developed with micro faceted structured just straight rectangular facets coated with Vacumm metalised Aluminum to have a 90% uniform concentrated light spread and 10% spill area. Beam angle is 2x25/2x35/2x45

Design

Build

Fixture Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. Fixture mounting is designed simply for ease of installation.

Design

Power Source

ON-OFF/DT8.0/DT2.0/ TD/AD/BLE dim

Choose Your

beam angle

Product Specifications

Color Temperature (CCT)

Luminaire Dimension

Beam Angle

Wattage

Lumens

UGR

IP Rating

Product Code

Array 7x Pendant Downlight 22K Wide

Color Temperature (CCT)

2200K

Luminaire Dimension

-

Beam Angle

85°

Wattage

35 W

Lumens

2614 lm

UGR

<27

IP Rating

IP20
Array 7x Pendant Downlight 22K Medium

Color Temperature (CCT)

2200K

Luminaire Dimension

-

Beam Angle

52°

Wattage

35 W

Lumens

2539 lm

UGR

<18

IP Rating

IP20
Array 7x Pendant Downlight 22K Narrow

Color Temperature (CCT)

2200K

Luminaire Dimension

-

Beam Angle

35°

Wattage

35 W

Lumens

2276 lm

UGR

<9

IP Rating

IP20
Array 7x Pendant Downlight 57K Wide

Color Temperature (CCT)

5700K

Luminaire Dimension

-

Beam Angle

85°

Wattage

35 W

Lumens

3696 lm

UGR

<27

IP Rating

IP20
Array 7x Pendant Downlight 57K Medium

Color Temperature (CCT)

5700K

Luminaire Dimension

-

Beam Angle

52°

Wattage

35 W

Lumens

3520 lm

UGR

<18

IP Rating

IP20
Array 7x Pendant Downlight 57K Narrow

Color Temperature (CCT)

5700K

Luminaire Dimension

-

Beam Angle

35°

Wattage

35 W

Lumens

3358 lm

UGR

<9

IP Rating

IP20
Array 7x Pendant Downlight 27K Wide

Color Temperature (CCT)

2700K

Luminaire Dimension

-

Beam Angle

85°

Wattage

35 W

Lumens

3122 lm

UGR

<27

IP Rating

IP20
Array 7x Pendant Downlight 27K Medium

Color Temperature (CCT)

2700K

Luminaire Dimension

-

Beam Angle

52°

Wattage

35 W

Lumens

3050 lm

UGR

<18

IP Rating

IP20
Array 7x Pendant Downlight 27K Narrow

Color Temperature (CCT)

2700K

Luminaire Dimension

-

Beam Angle

35°

Wattage

35 W

Lumens

2830 lm

UGR

<9

IP Rating

IP20

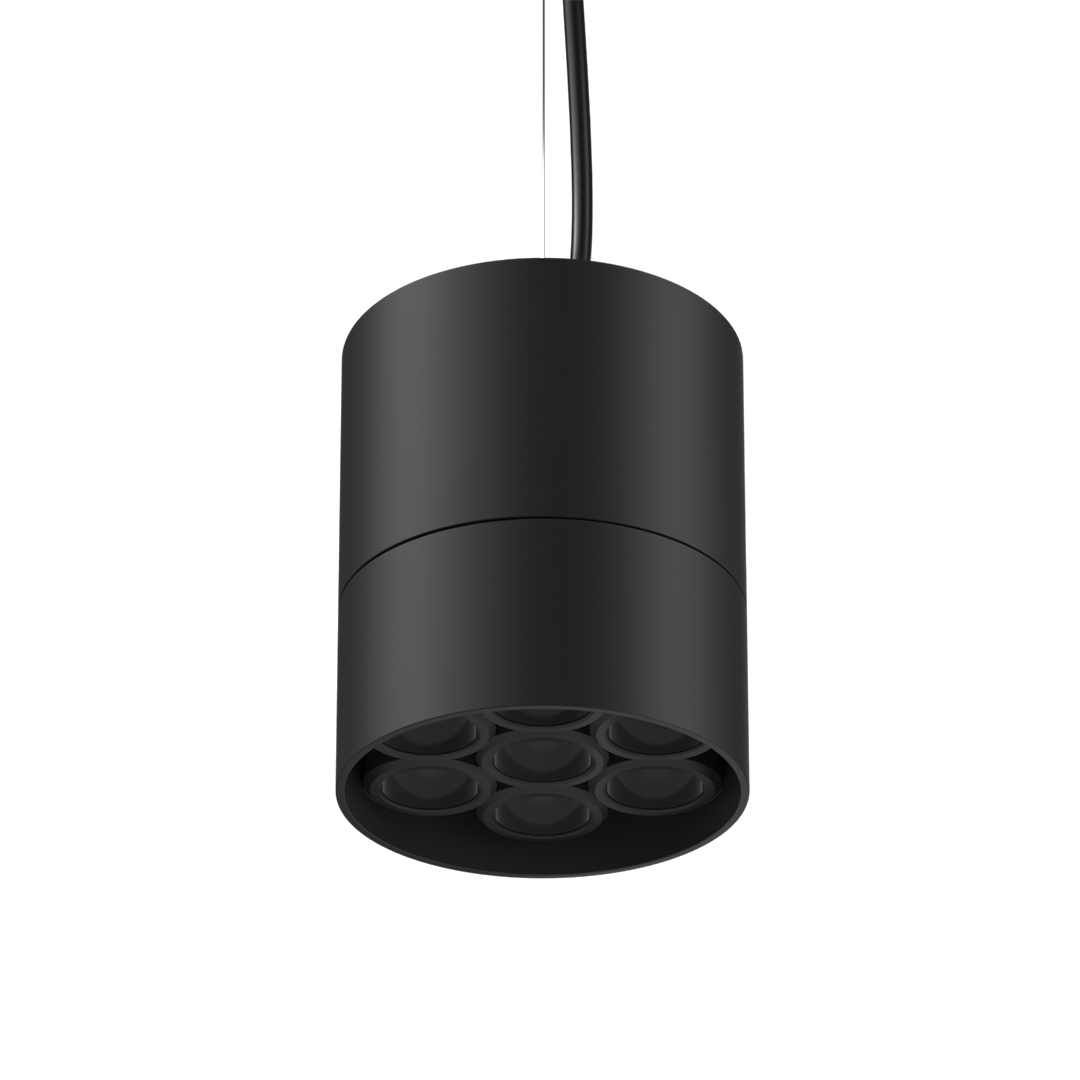

Array 7x Pendant Downlight Superspot 3K

Color Temperature (CCT)

3000K

Luminaire Dimension

L 156 x H 135

Beam Angle

16°

Wattage

35 W

Lumens

2230 lm

UGR

<9

IP Rating

IP20

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT)Luminaire DimensionBeam AngleWattageLumensUGRIP RatingEfficacyProduct Code
5700K-85°35 W3696 lm<27IP20106 lm/WArray 7x Pendant Downlight 57K W
5700K-52°35 W3520 lm<18IP20102 lm/WArray 7x Pendant Downlight 57K M
5700K-35°35 W3358 lm<9IP2098 lm/WArray 7x Pendant Downlight 57K N
4000K-85°35 W3599 lm<23IP20103 lm/WArray 7x Pendant Downlight 4K W 01
4000K-52°35 W3469 lm<17IP20100 lm/WArray 7x Pendant Downlight 4K M 02
4000K-35°35 W3257 lm<9IP2092 lm/WArray 7x Pendant Downlight 4K N 03
3000K-85°35 W3325 lm<24IP2095 lm/WArray 7x Pendant Downlight 3K W 04
3000K-52°35 W3151 lm<14IP2090 lm/WArray 7x Pendant Downlight 3K M 05
3000K-35°35 W3042 lm<9IP2085 lm/WArray 7x Pendant Downlight 3K N 06
2700K-85°35 W1993 lm<27IP2081 lm/WArray 7x Pendant Downlight 27K W
2700K-52°35 W1886 lm<18IP2079 lm/WArray 7x Pendant Downlight 27K M
2700K-35°35 W1770 lm<9IP2072 lm/WArray 7x Pendant Downlight 27K N
2200K-85°35 W2614 lm<27IP2076 lm/WArray 7x Pendant Downlight 22K W
2200K-52°35 W2539 lm<18IP2073 lm/WArray 7x Pendant Downlight 22K M
2200K-35°35 W2276 lm<9IP2066 lm/WArray 7x Pendant Downlight 22K N

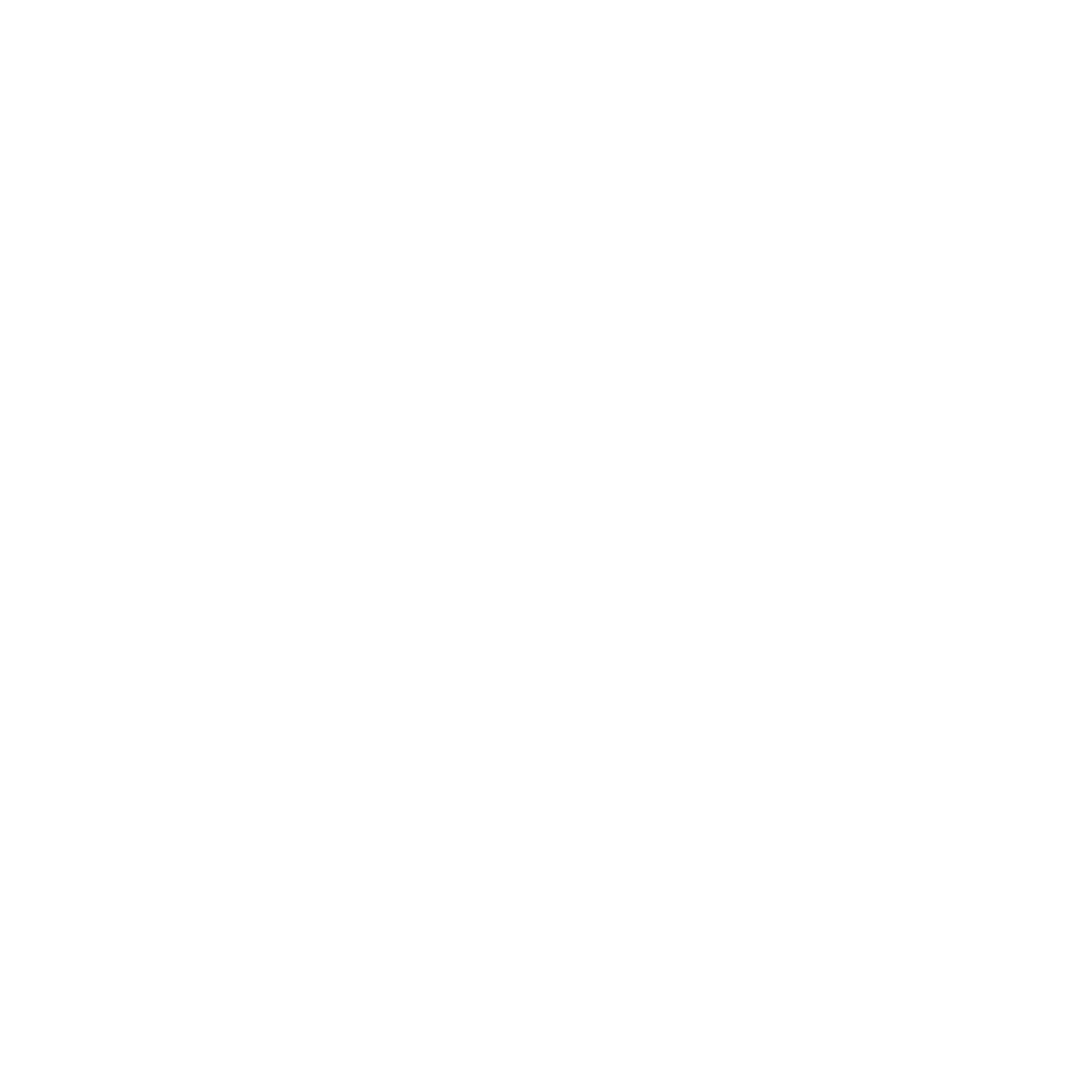

Dimensions

PL06822

/ Downloads

Technical Data

Photometric data: IES
