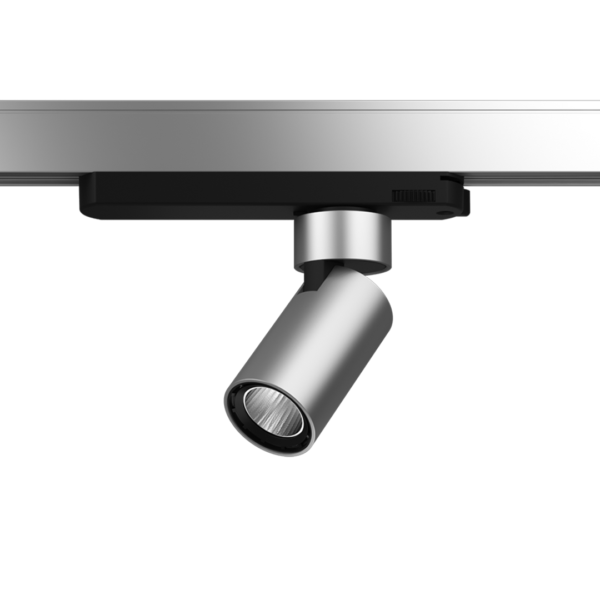

Magnus Track 1X

[main_category]

← Go Back

Filter Options

Filter By Color Temprature

Filter By Beam Angle

Filter By Wattage

Filter By Efficacy

Product Specifications

Color Temperature (CCT)	Luminaire Dimension	Beam Angle	Wattage	Lumens	UGR	IP Rating	Efficacy	Product Code
5700K	L36 x H106.5	85°	6 W	451 lm	<33	IP20	84 lm/W	Magnus 1x Track ACDC 57K W
5700K	L36 x H106.5	52°	6 W	436 lm	<21	IP20	81 lm/W	Magnus 1x Track ACDC 57K M
5700K	L36 x H106.5	33°	6 W	387 lm	<9	IP20	71 lm/W	Magnus 1x Track ACDC 57K N
4000K	L36 x H106.5	85°	6 W	480 lm	<35	IP20	86 lm/W	Magnus 1x Track ACDC 4K W 01
4000K	L36 x H106.5	52°	6 W	441lm	<24	IP20	82 lm/W	Magnus 1x Track ACDC 4K M 02
4000K	L36 x H106.5	33°	6 W	416 lm	<9	IP20	74 lm/W	Magnus 1x Track ACDC 4K N 03
3000K	L36 x H106.5	85°	6 W	428 lm	<32	IP20	78 lm/W	Magnus 1x Track ACDC 3K W 04
3000K	L36 x H106.5	52°	6 W	403 lm	<28	IP20	72 lm/W	Magnus 1x Track ACDC 3K M 05
3000K	L36 x H106.5	33°	6 W	386 lm	<9	IP20	68 lm/W	Magnus 1x Track ACDC 3K N 06
2700K	L36 x H106.5	85°	6 W	419 lm	<33	IP20	77 lm/W	Magnus 1x Track ACDC 27K W
2700K	L36 x H106.5	52°	6 W	410 lm	<24	IP20	74 lm/W	Magnus 1x Track ACDC 27K M
2700K	L36 x H106.5	33°	6 W	374 lm	<9	IP20	70 lm/W	Magnus 1x Track ACDC 27K N
2200K	L36 x H106.5	85°	6 W	321 lm	<9	IP20	58 lm/W	Magnus 1x Track ACDC 22K W
2200K	L36 x H106.5	52°	6 W	294 lm	<23	IP20	54 lm/W	Magnus 1x Track ACDC 22K M
2200K	L36 x H106.5	33°	6 W	237 lm	<31	IP20	43 lm/W	Magnus 1x Track ACDC 22K N
5700K	L36 x H106.5	85°	6 W	451 lm	<33	IP20	84 lm/W	Magnus 1x Track LVDC 57K W
5700K	L36 x H106.5	52°	6 W	436 lm	<21	IP20	81 lm/W	Magnus 1x Track LVDC 57K M
5700K	L36 x H106.5	33°	6 W	387 lm	<9	IP20	71 lm/W	Magnus 1x Track LVDC 57K N
4000K	L36 x H106.7	85°	6 W	480 lm	<35	IP20	86 lm/W	Magnus 1x Track LVDC 4K W 07
4000K	L36 x H106.7	52°	6 W	441 lm	<24	IP20	82 lm/W	Magnus 1x Track LVDC 4K M 08
4000K	L36 x H106.7	33°	6 W	416 lm	<9	IP20	74 lm/W	Magnus 1x Track LVDC 4K N 09
3000K	L36 x H106.7	85°	6 W	428 lm	<32	IP20	78 lm/W	Magnus 1x Track LVDC 3K W 10
3000K	L36 x H106.7	52°	6 W	403 lm	<28	IP20	72 lm/W	Magnus 1x Track LVDC 3K M 11
3000K	L36 x H106.7	33°	6 W	386 lm	<9	IP20	68 lm/W	Magnus 1x Track LVDC 3K N 12
2700K	L36 x H106.7	85°	6 W	419 lm	<33	IP20	77 lm/W	Magnus 1x Track LVDC 27K W
2700K	L36 x H106.7	52°	6 W	410 lm	<24	IP20	74 lm/W	Magnus 1x Track LVDC 27K M
2700K	L36 x H106.7	33°	6 W	374 lm	<9	IP20	70 lm/W	Magnus 1x Track LVDC 27K N
2200K	L36 x H106.7	85°	6 W	321 lm	<21	IP20	58 lm/W	Magnus 1x Track LVDC 22K W
2200K	L36 x H106.7	52°	6 W	294 lm	<23	IP20	54 lm/W	Magnus 1x Track LVDC 22K M
2200K	L36 x H106.7	33°	6 W	237 lm	<9	IP20	43 lm/W	Magnus 1x Track LVDC 22K N

Magnus Track 1X

AceTech 2023

In-Store Asia

Mastering precision with Bartenbach

PL06822

/ Downloads

Technical Data

Technical drawing:2D

Data Sheet

Photometric data: IES

Photo selection
